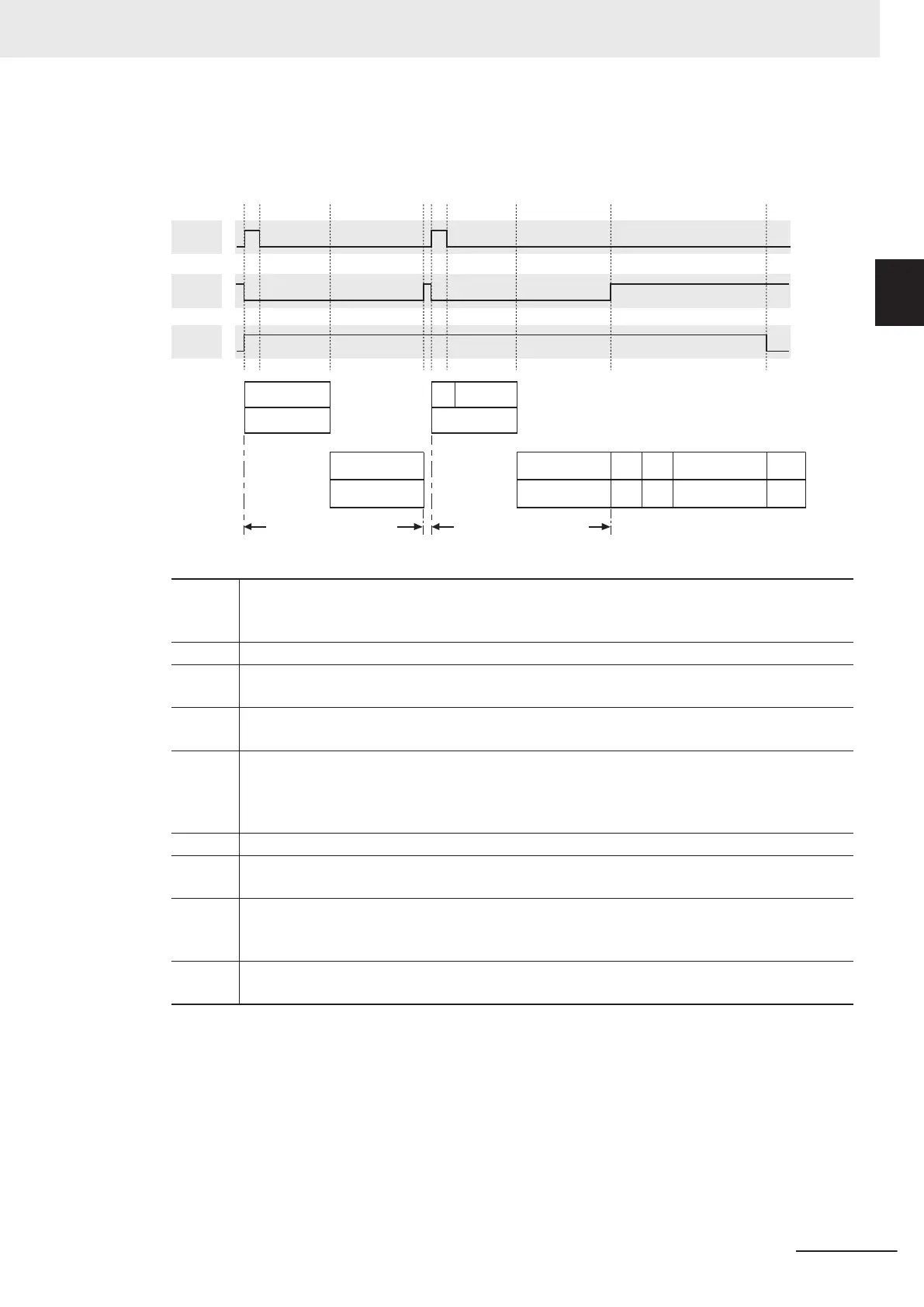

Non-Multi-input + Parallel processing OFF
1.Multi-trigger Imaging Task block
4.Multi-trigger Imaging Task block
Camera
settings
2.Camera
Image Input FH
5.Camera
Image Input FH
Input image
Input image
Sensor
Controller
Processing
6
32
1
STEP1
↓
STEP2
↓
4
589
Measurement processing
6.Search
8.Calculation
9.Conditional
Branching
Measurement
processing
10.Search
11.Result
Display
Measurement
processing
Measurement
processing
Measurement
processing
Display
processing
3.Search
7
STEP
READY
BUSY
1.
After checking if READY is ON and BUSY is OFF, turn ON the STEP (STEP1).
When STEP turns ON, READY turns OFF and BUSY turns ON.
Camera image (2 Camera image input FH) is input.
2. After READY turns OFF and BUSY turns ON, turn OFF the STEP.
3.
Since both Multi-input mode and Parallel processing are disabled, measurement processing (3
Search) is executed after Camera Image Input without turning ON the READY.
4.
After measurement processing (3 Search) is completed, READY turns ON. (The READY remains
OFF until the 1 Multi-trigger Imaging Task block is completed).
5.
After checking if READY is ON, turn ON the STEP (STEP2).
When STEP turns ON, READY turns OFF.
Since Non-Multi-input mode is selected, processing starts with camera settings for 5 Camera
Image Input FH.
6. After READY turns OFF, turn OFF the STEP.
7.
Since both Multi-input mode and Parallel processing are disabled, measurement processing (6
Search) is executed after Camera Image Input without turning ON the READY.
8.
After measurement processing (6 Search) is completed, READY turns ON.(The READY remains
OFF until the 4 Multi-trigger Imaging Task block is completed).
8 Calculation that comes after Multi-trigger Imaging End is performed.
9.
After measurement processing is completed, BUSY turns OFF.
Display processing (11 Result Display) is performed.
10 Advanced Usage
10 - 27
FH/FHV Series Vision System User’s Manual (Z365-E1)
10-2 Multi-trigger Imaging Processing
with Any Timing [Multi-trigger Imaging]
10
10-2-4 About Multi-input Function (Multi-trigger Imaging)
