Logging Measurement Data and Image Data
210
FQ2 User’s Manual
• Measurement Data
Selecting the Measurement Data To Log

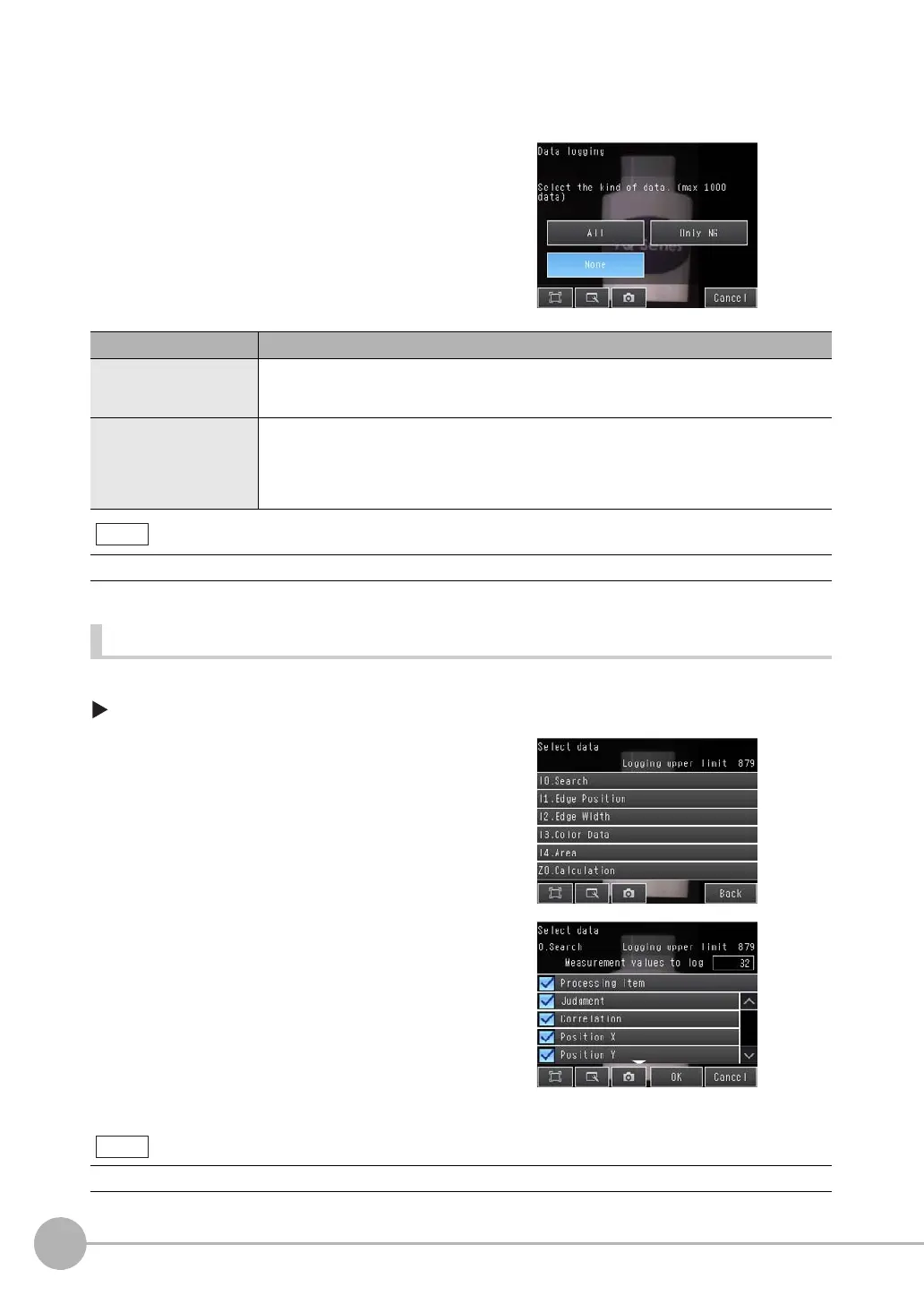

Use the following procedure to select the measurement data to log.
[In/Out] − [Log setting] − [Measurement data] − [Select data]
1 Press [Data logging] − [Condition].
2 Change the logging conditions, and then press
[Back].
Item Description
Image logging (image data) • All: All images will be logged regardless of the measurement results.
• Only NG: Only images for which the overall judgement was NG will be logged.
• None: No images will be logged (default).
Data logging (measurement
data)
• All: All measurement data (Measured values and calculation results) will be logged regardless of the
measurement results.
• Only NG: Only measurement data (Measured values and calculation results) for which the overall
judgement was NG will be logged.
• None: No measurement data (Measured values and calculation results) will be logged (default).
The logging parameter settings are the same for recent results logging.
1 Press the inspection item or expression that has the
parameter for which to log data.
2 Press the parameter for which to log data to select it.
The procedure to select the measurement data to log is the same for recent results logging.
