• These instructions must be used in a ladder diagram. They cannot be used in ST. They also cannot
be used in inline ST in a ladder diagram.
• Always use the MC and MCR instructions as a pair in the same POU.
• Always place the MCR instruction after the MC instruction.
• Do not nest the MC and MCR instructions to more than 15 levels.
• If there is inline ST in the master control region, the inline ST is not executed when the master control
region is reset.
Precautions for Correct Use

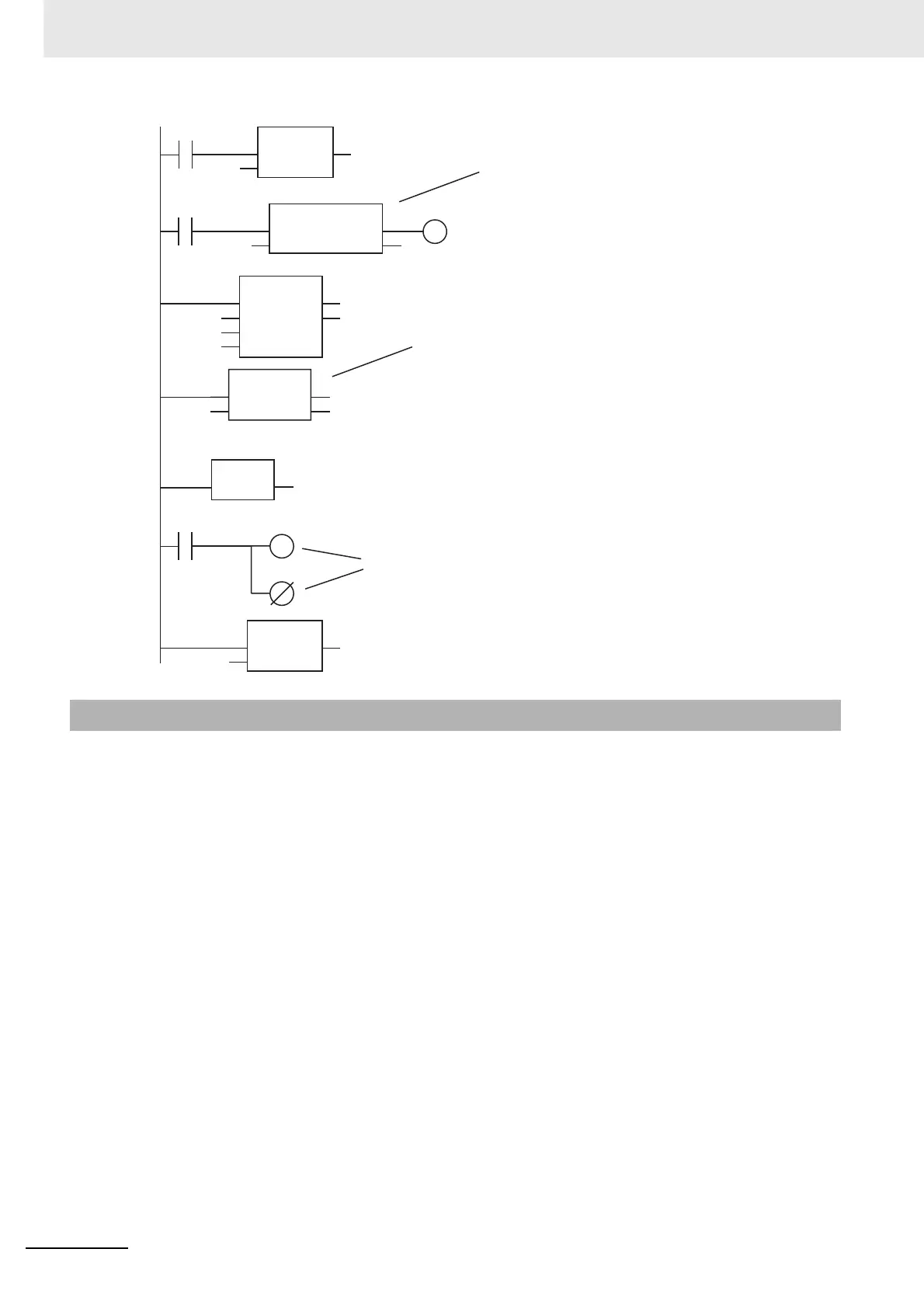

These are not executed.
FALSE is output.
A
UINT#1
UINT#1
abc
B
def
T#10ms
C
TON
In Q
PT ET
TON_instance
INT#0
array[position]
Reset.
UINT#0
UINT#10
UINT#1
position
FOR
EN ENO
InitVal Index
EndVal
StepVal
NEXT
EN ENO
D
E
MOVE
EN ENO
In Out
MC
In ENO
MCNo
MCR
EN ENO
MCNo
