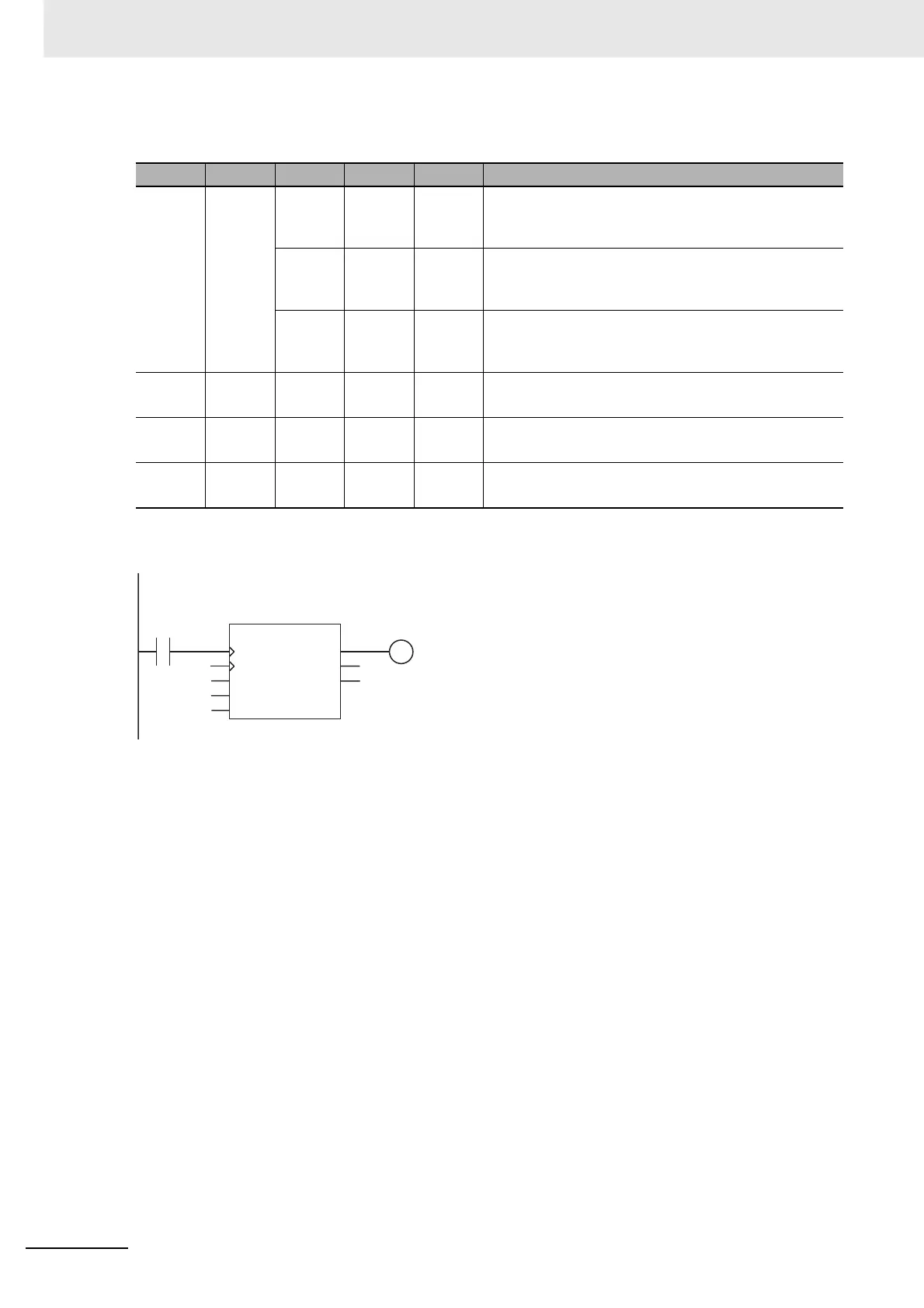

The following table shows the relationship between Reset, Load, CV, QU, and QD. This assumes that
the value of PV is larger than 0.
The following figure shows a programming example and timing chart for a PV of INT#3.
Reset Load CV QU QD Operation
FALSE FALSE
0 or
lower
FALSE TRUE Only up counter operation is performed.
• CV is incremented when CU changes to TRUE. It is
not decremented when CD changes to TRUE.
Between
0 and PV
FALSE FALSE Both up and down counter operation is performed.
• CV is incremented when CU changes to TRUE and
decremented when CD changes to TRUE.
PV or
higher
TRUE FALSE Only down counter operation is performed.
• CV is decremented when CD changes to TRUE. It is
not incremented when CU changes to TRUE.
TRUE FALSE 0 FALSE TRUE The up counter is reset.
• The value of CV is set to 0.
FALSE TRUE PV TRUE FALSE The down counter is reset.
• The value of CV is set to PV.
TRUE TRUE 0 FALSE TRUE The up counter is reset. Reset take priority over Load.
• The value of CV is set to 0.
CTUD_instance(A, B, abc, def, INT#3, ghi, jkl, mno);
LD ST
A
jkl
ghi
mno
INT#3
abc
def
B
CTUD
CU QU
CD QD
Reset CV
Load
PV
CTUD_instance
