2-359
2 Instruction Descriptions
NJ-series Instructions Reference Manual (W502)
Shift Instructions
2
ArySHL and ArySHR
If InOut[] is BOOL data, the results will be the same as shifting a bit string of Size bits by Num bits.
• The shift operation is not performed if the value of Num is 0.
• If the value of Num is larger than Size, all values from InOut[0] to InOut[Size−1] are initialized.
• Return value Out is not used when the instruction is used in ST.
• An error occurs in the following case. ENO will be FALSE, and InOut[] will not change.
• The value of Size exceeds the array area of InOut[].
Additional Information
Precautions for Correct Use

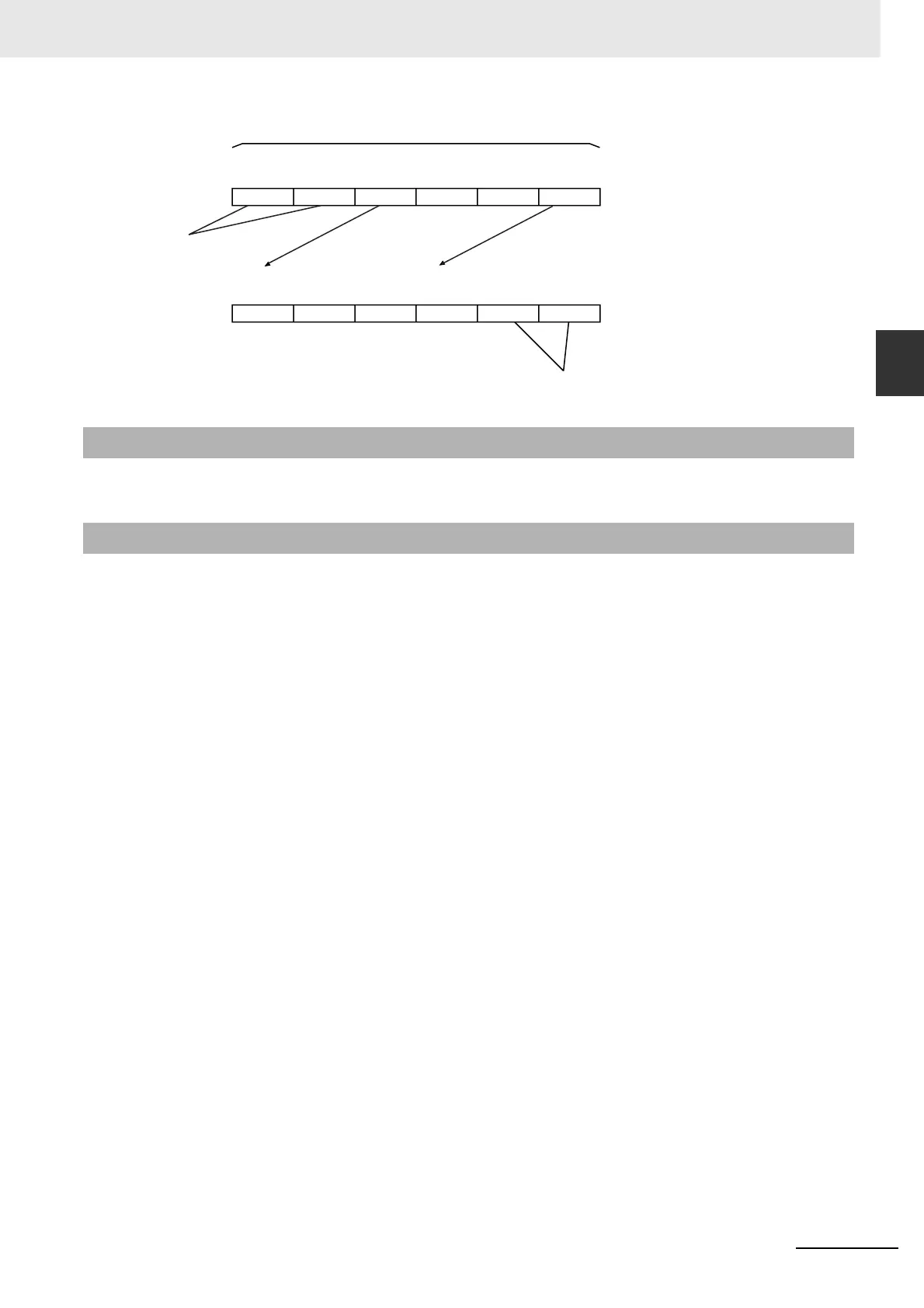

Discarded.
Zeros inserted.
InOut[5]
=abc[6]
Size=UINT#6
9 8 7 3 2 1
7 3 2 1 0 0
InOut[4]
=abc[5]
InOut[3]
=abc[4]
InOut[2]
=abc[3]
InOut[1]
=abc[2]
InOut[0]
=abc[1]
InOut[5]
=abc[6]
InOut[4]
=abc[5]
InOut[3]
=abc[4]
InOut[2]
=abc[3]
InOut[1]
=abc[2]
InOut[0]
=abc[1]
