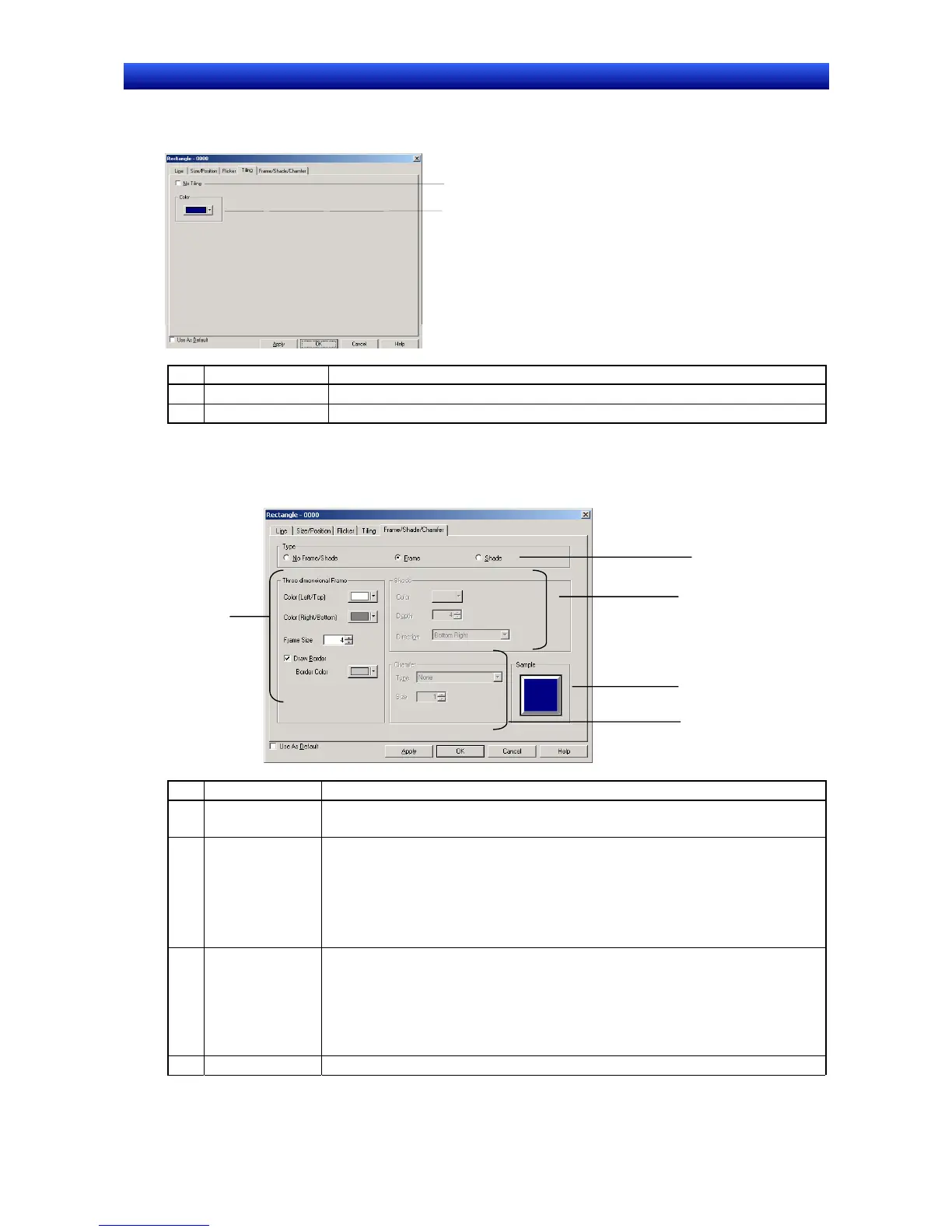

Tiling
Set the color for the fixed object.
1
2
No. Setting Details
1 No Tiling Select whether or not to tile the object.
2 Color Set the object color.
Frame, Shade, and Beveling
Specify the frame, shading color, size, and bevel setting for the three-dimensional display of fixed
objects.
1
3
2
4
5
No. Setting Details
1 Type Select one of the following three types of fixed objects.
No frame or shade, Frame, or Shade
2 Shade Set the shade color, depth, and direction.
Select the
Shade Option.
Set the color with the
Color setting.
Set the depth under
Depth.
Select one of the four shade direction types.
Top Left, Top Right, Bottom Left, or Bottom Right
3
Three-
dimensional
Frame
Set the frame color, size, and border.
Select the
Frame Option.
Set the color with the
Color (Left/Top) and Color (Right/Bottom) settings.
The size of the frame is set under
Frame Size.
When drawing a frame border, select the
Draw Border Option to draw the frame
border and specify the color with the
Border Color setting.
4 Sample The current settings will be reflected.
