Section 2 NS Series Functions 2-8 Common Functional Object Functions
2-97
NS Series Programming Manual
N
N
N
o
o
o
t
t
t
e
e
e
♦
The flicker settings can also be made under PT - Flicker setting.
♦
At the slowest flicker speed, the object will flicker approximately every 2 seconds. At the fastest
speed, the object will flash approximately every 200 ms. The flicker speed can be set in 200-ms
units. Flicker speed settings can be made for each screen. The flicker speed will differ slightly de-
pending on the volume of screen data.
♦
Flicker settings can be made for each screen.
The flicker settings are shared for all objects on the same screen. If the flicker settings are changed
for a particular functional object, the new settings will be reflected for all functional objects with the
same flicker number in that screen.
♦
Depending on the set color, the inverse color during flickering may differ between the PT and the
CX-Designer test mode.
♦
If the control flag is set to Indirect, the display color will return to the original color when the set ad-
dress turns OFF. For this reason, the whole screen is refreshed.
♦
When the bit lamps are set to Select Shape, they will not flicker, even if Display ON and OFF
Colors Alternately are selected in the flicker method settings.
♦
Flicker will not occur if all the checkboxes under Specify Color are deselected, even if Specify display
color
is selected under Flicker Color Settings. Always select the checkbox for the flicker target and
specify the color.
The following three flicker display methods can be selected.

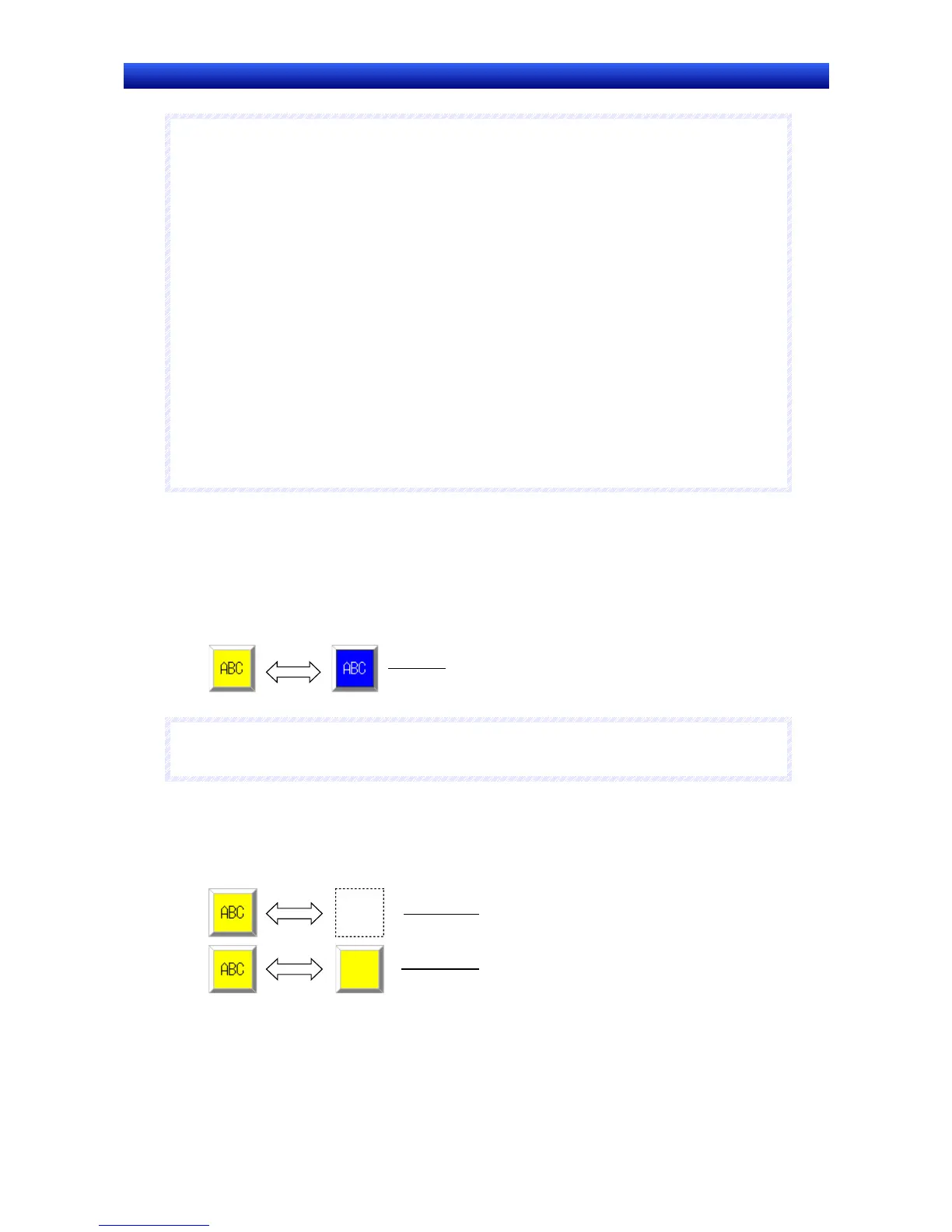

Show Display Color and Inverse Color Alternately
This option repeats alternate display of the display color and its inverse color. The flicker action occurs
at the specified flicker speed and in the specified flicker range.
If All excluding border is
selected under Flicker Range.
N
N
N
o
o
o
t
t
t
e
e
e
♦
The flicker action is the same as for NS system versions 6.6 and lower.
Show and Hide Alternately
Repeatedly alternates between showing and hiding display of the whole object or the label string. The
flicker action occurs at the specified flicker speed.
When Whole object is specified.
When Label is specified
