Section 2 NS Series Functions 2-10 Lamps
2-155
NS Series Programming Manual

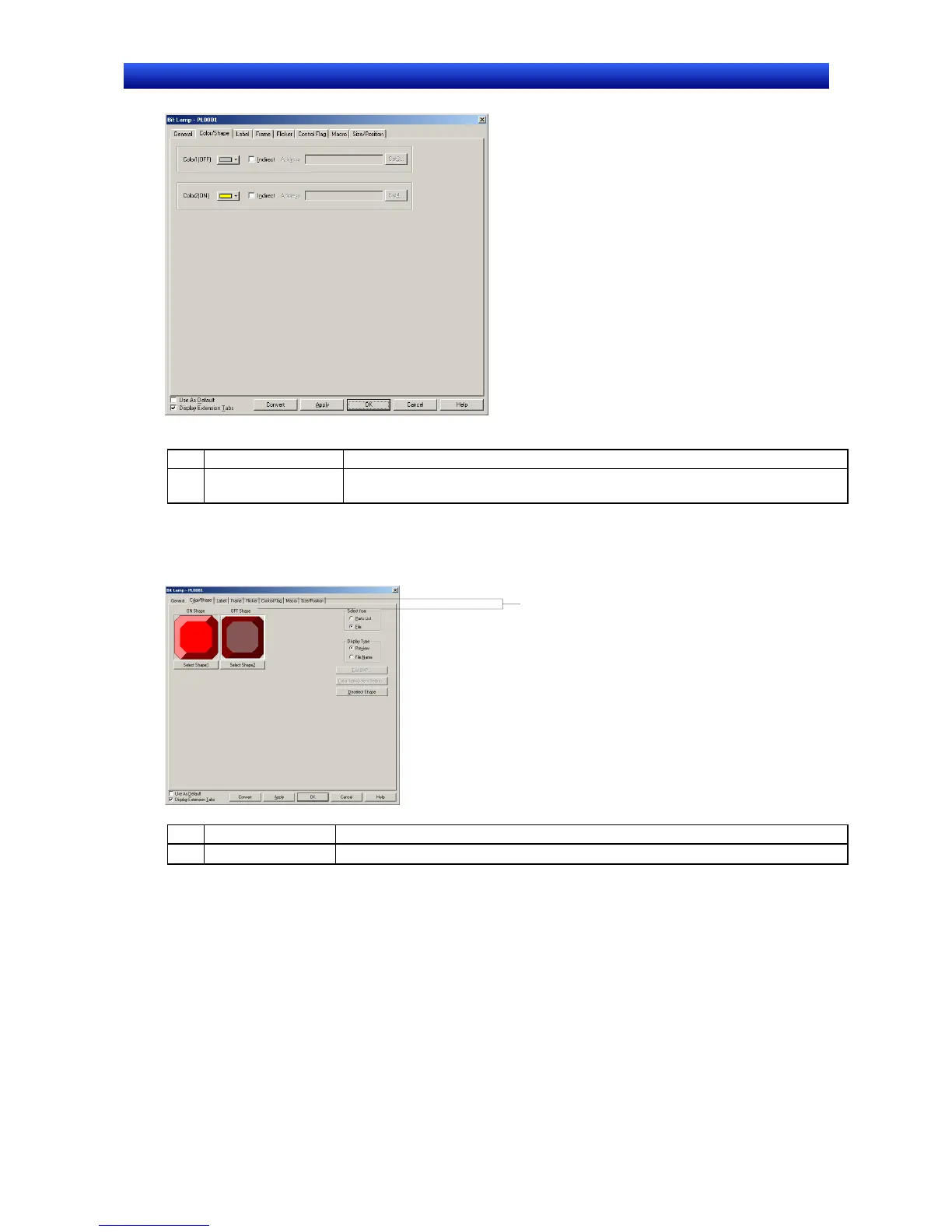

Color
No. Setting Details
1
Color 1 and Color 2
(OFF/ON)
Sets the lamp color when the contents of the lamp address is 0 or 1 (OFF/ON).
Colors can also be set after referencing the contents of the address.
Refer to Setting Colors in 2-8 Common Functional Object Functions for information on how to set col-
ors.
Select Shape
1
No. Setting Details
1 ON/OFF Shapes
Sets the shape when the lamp is turned ON or OFF using the Select Shape Button.
Refer to Selecting Fixed Objects in 2-8 Common Functional Object Functions for information on how to
set fixed objects.
Label Tab Page
Sets labels for lamps. Refer to Labels in 2-8 Common Functional Object Functions for basic settings
information. This section describes only the settings for bit lamps.
The labels of bit lamps can be switched as the lamp turns ON and OFF.
To Next Page
