Section 2 NS Series Functions 2-11 Multifunction Objects
2-171
NS Series Programming Manual
General : Sets the functions to be executed and the operation timing.
Color/Shape : Sets the color and shape of the Multifunction Object.
Label : Executes the label display contents.
Flicker
(See note.)
: Sets flicker display.
Size/Position
(See note.)
: Sets the size and position of the object.
Expansion
Setting
(See note.)
: Sets the operation options for function execution.
Note: The Flicker, Size/Position, and Expansion Setting Tabs are displayed when the Display Extension Tabs
Checkbox is selected.
General
The General Tab Page is used to set the functions to be executed and the execution conditions for the
Multifunction Object.
Setting Execution Conditions
The execution condition can be set to When pressing or to When a value changed.
If When pressing is selected, the operation will be executed when the Multifunction Object is pressed
(for Touch ON timing). The timing for execution when When pressing is selected can be set to either
Touch ON timing or Touch OFF timing.
If When a value changed is selected, the operation is executed when the value of a specified address
changes.
When Pressing
1. Open the When Pressing Tab Page in the Action Item List.
2. Click When pressing.

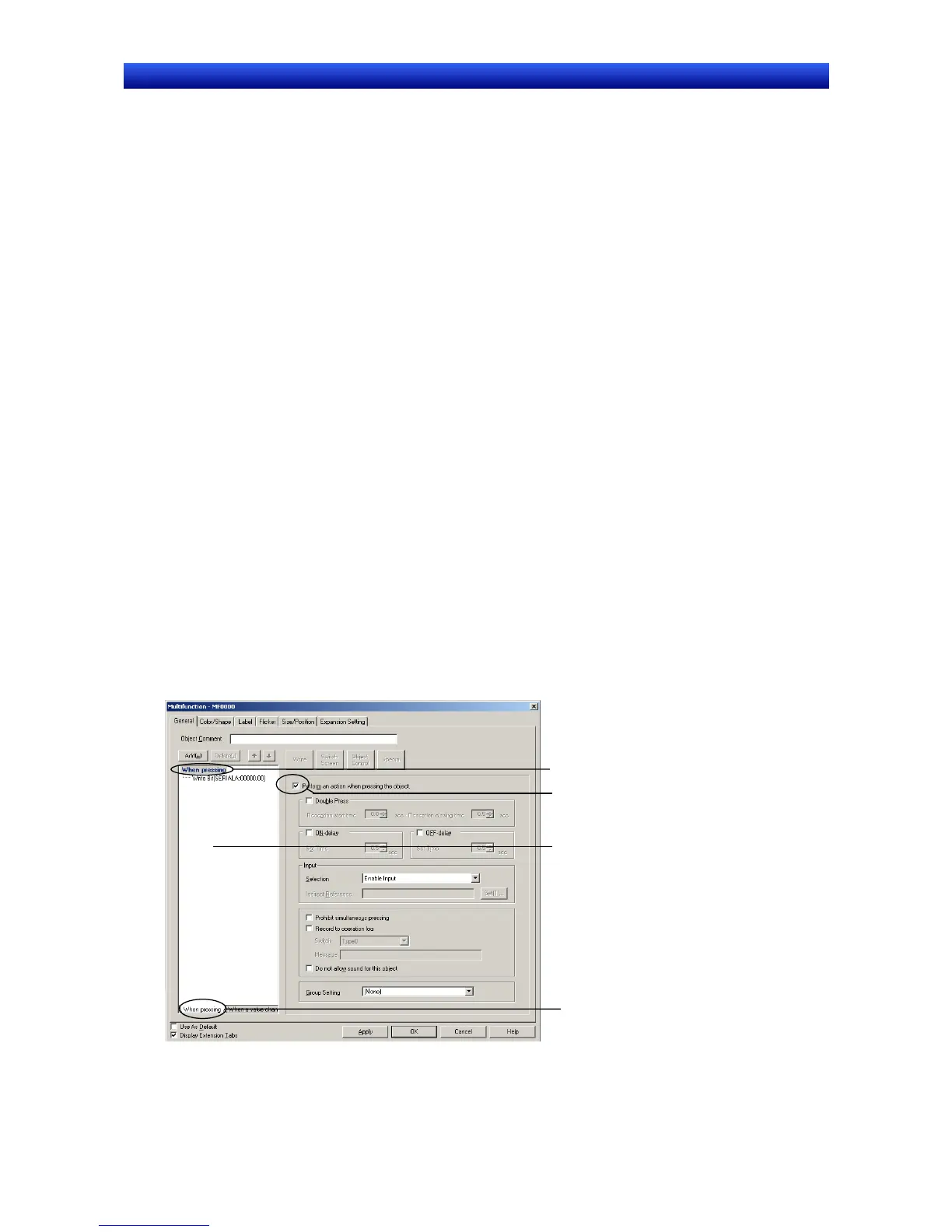

3. Select the Perform an action when pressing the object Checkbox. (This checkbox is selected by
default.)
1. Select When pressing.
This area is called the Action Item
List.
3. Select Perform an action whe
