Section 2 NS Series Functions 2-11 Multifunction Objects
2-214
NS Series Programming Manual

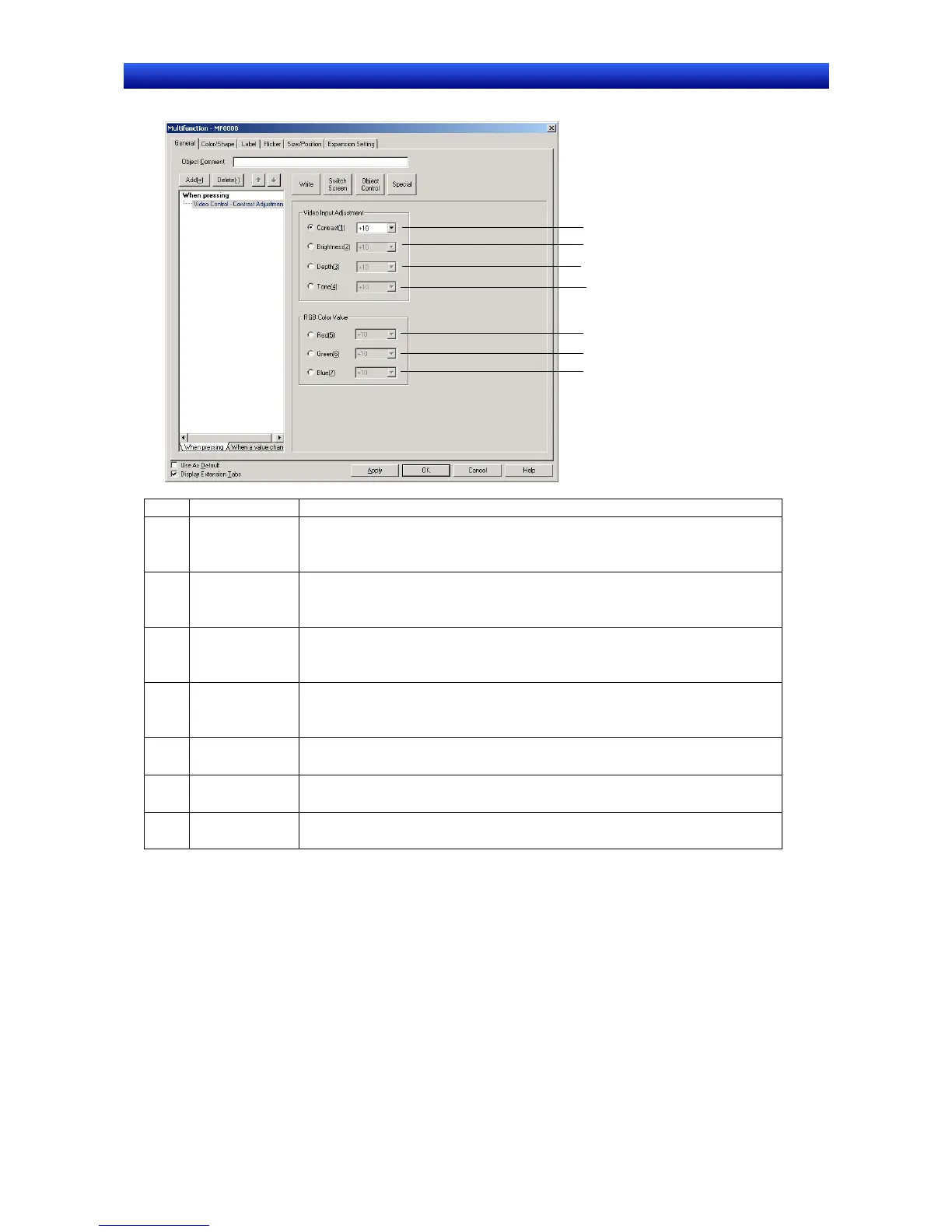

Two-channel RGB/Video Input Units (NS-CA002)
1
2
3
4
5
6
7
No. Item Details
1 Contrast Select to adjust contrast.
Select –10, –1, +1, or +10.
Contrast can be set in 64 levels.
2 Brightness Select to adjust brightness.
Select –10, –1, +1, or +10.
Brightness can be set in 128 levels.
3 Depth Select to adjust depth.
Select –10, –1, +1, or +10.
Depth can be set in 32 levels.
4 Tone Select to adjust tone.
Select –10, –1, +1, or +10.
Tone can be set in 256 levels.
5 Red Select to adjust the gain of the R (red) signal.
Select –10, –1, +1, or +10.
6 Green Select to adjust the gain of the G (green) signal.
Select –10, –1, +1, or +10.
7 Blue Select to adjust the gain of the B (blue) signal.
Select –10, –1, +1, or +10.
Video Control – Vision Sensor Console Output
Sends a one of various control signals to an OMRON Vision Sensor.
Click the Object Control Button and select Video Control – Vision Sensor Console from the list that is
displayed.
