Section 2 NS Series Functions 2-11 Multifunction Objects
2-224
NS Series Programming Manual
No. Item Details

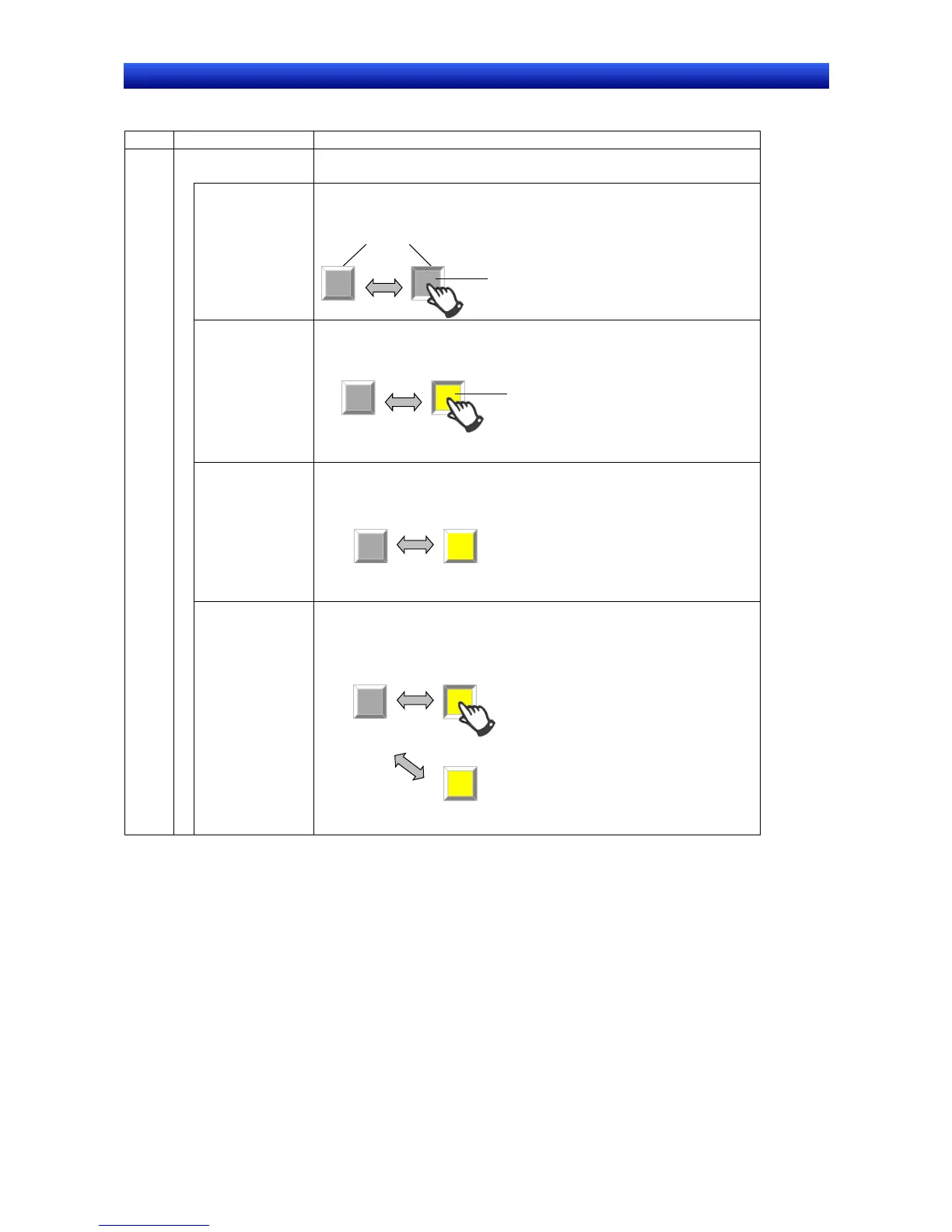

Display Method
Selects the method for color/shape changes for the specified shape. Refer
to Display Method Settings later in this section for details.
Normal Color
Normal Shape
Always displays the same shape/color, whether or not the Multifunction
Object is pressed.
The color (shape) does not
change.
Normal color (shape)
When Pressed
Switches between the normal color (shape) and the pressed color (shape)
when the Multifunction Object is pressed.
The color (shape) changes while
the button is pressed.
Normal color
(shape)
Color (shape) when pressed
When pressed
Bit Address
Switches between the ON color (shape) and OFF color (shape) depend-
ing on the ON/OFF status of the specified display address.
OFF color
(shape)
ON color
(shape)
Display address
OFF
ON
3
Bit Address/
When Pressed
Switches between the ON color (shape) and OFF color (shape) depend-
ing on the ON/OFF status of the specified display address.
Or displays the ON color (shape) while the Multifunction Object is
pressed.
OFF color (shape)
ON color (shape)
Display address
OFF
ON color (shape)
Display address ON
