Section 2 NS Series Functions 2-11 Multifunction Objects
2-223
NS Series Programming Manual

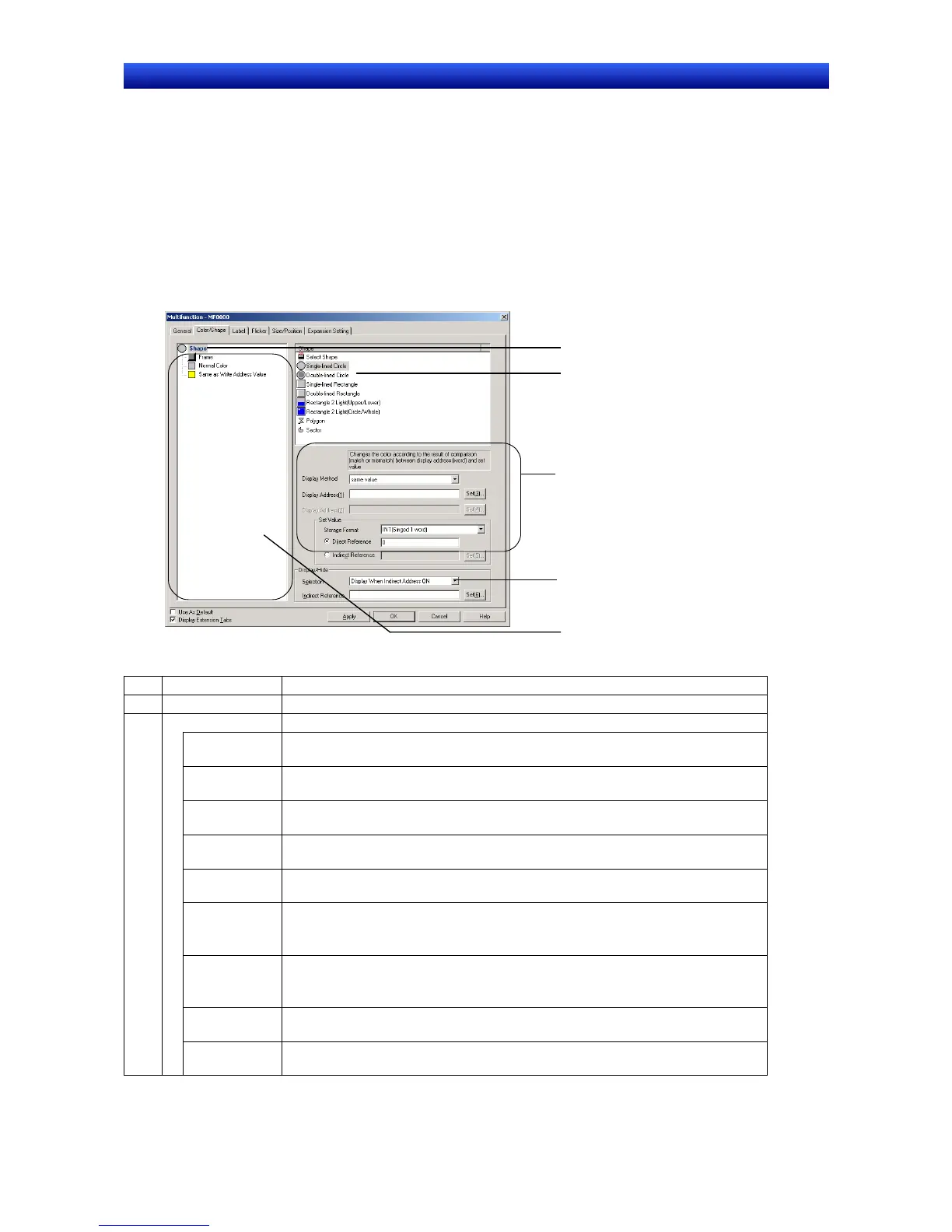

Color/Shape
Sets the color and shape of the Multifunction Object.
Use the following procedure to make the settings.
1. Select Shape from the Color/Shape List at the left of the Dialog Box. (Shape will be selected by
default when the Color/Shape Tab is opened.)
2. Select the Multifunction Object shape.
3. Select the display method. Make the communications address and other settings according to the
selected display method.
4. Make the display/hide control settings.
5. Make the frame, color, and shape settings.
1. Select
Shape
.
3. Select the display method.
Make the communications and other settings
according to the display method. (The setting
items will depend on the selected displa
y
method.)
2. Select the display shape.
4. Make the display/hide settings.
5. Make the color, shape, and frame display shape
settings. (The setting items depend on the
selected shape and display method.)
No. Item Details
1 Shape Select to make shape settings for the Multifunction Object.
Shape Select one of the following Multifunction Object shapes.
Select Shape
Displays the specified shape file when the Multifunction Object is pressed or
according to the specified communications address value.
Single-lined
Circle
Displays the specified color when the Multifunction Object is pressed or accord-
ing to the specified communications address value.
Double-lined
Circle
Displays the specified color when the Multifunction Object is pressed or accord-
ing to the specified communications address value.
Single-lined
Rectangle
Displays the specified color when the Multifunction Object is pressed or accord-
ing to the specified communications address value.
Double-lined
Rectangle
Displays the specified color when the Multifunction Object is pressed or accord-
ing to the specified communications address value.
Rectangle 2
Light
(Upper/Lower)
Displays the specified color according to the values for two specified communi-
cations addresses.
Rectangle 2
Light
(Circle/Whole)
Displays the specified color according to the values for two specified communi-
cations addresses.
Polygon
Displays the specified color when the Multifunction Object is pressed or accord-
ing to the specified communications address value.
2
Sector
Displays the specified color when the Multifunction Object is pressed or accord-
ing to the specified communications address value.
