Creating Temporary Input Keypads in Numeral Display and Input Objects
Use the following procedure to create a keypad using a temporary input object.

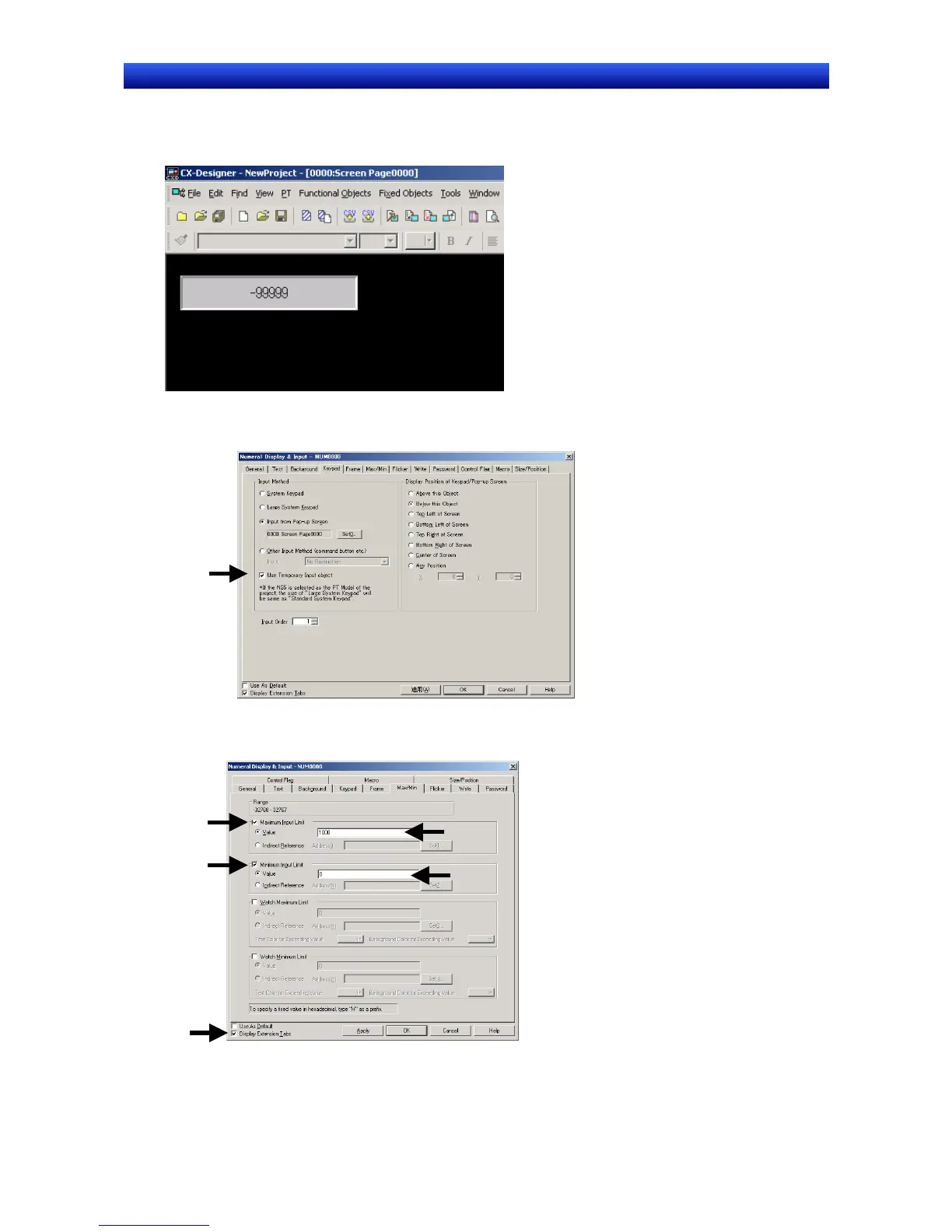

1. Position a numeral display and input object on the screen.
2. Double-click the object to display the Properties Dialog Box.
3. Display the Keypad Tab Page. Select Input from Pop-up Screen or Other Input Method (command
button etc.) under Input Method. Select the Use temporary input option under Input Method.
4. Select the Display Extension Tabs Option to display the Max/Min Tab Page. Select both the Check
Maximum Input Limit and the Check Minimum Input Limit, and select the Value option. The maxi-
mum and minimum values are set as shown in the following diagram.
