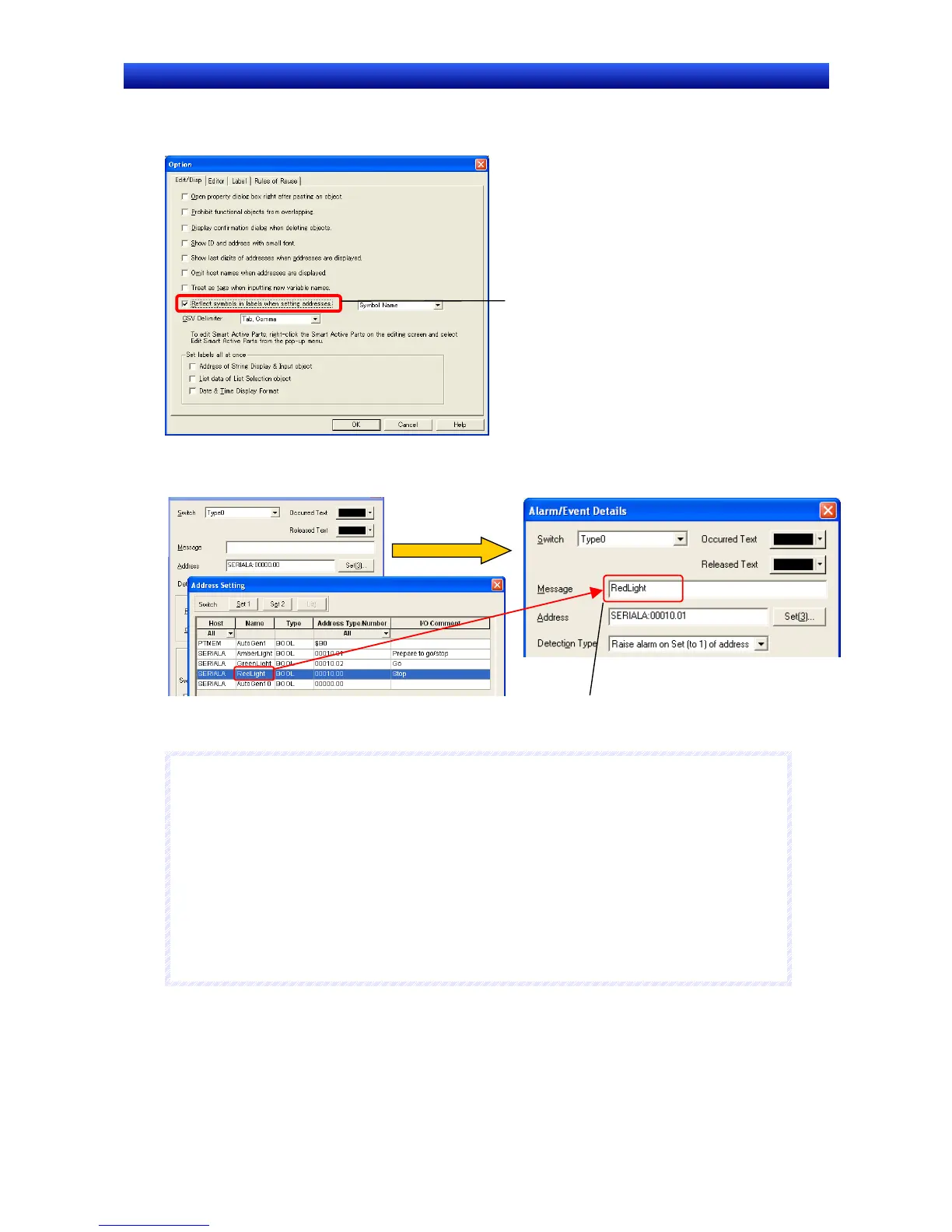

Open the Edit/Disp Tab Window in the Option Dialog Box.
2 Select Reflect symbols in labels when setting addresses, and select either Symbol Name or I/O
Comment for the label character string.
Check the box as shown, and select
either Symbol Name or I/O Comment
for the label character string.
3 Set the communications address in the Address Field of the Alarm/Event Details Dialog Box.
4 The symbol name or I/O comment for the communications address that was set for the message
will be set automatically.
The variable name or I/O comment for the
communications address will be set automaticall
.
N
N
N
o
o
o
t
t
t
e
e
e
♦
If there are two or more labels, the symbol names and I/O comments will be set for the character
strings for all of the labels.
♦
Symbol names and I/O comments will not be set automatically in the following cases:
• When the communications address is replaced by another one.
• When a symbol name or I/O comment is changed from a symbol table after the label character
string has been set.
• When an alarm/event was added from a CSV import.
• When the Use the String Table Option is selected.
♦
If the Reflect to label when an address is set Option is selected in the Option Dialog Box, the sym-
bol name or I/O comment will be reflected in the label of an ON/OFF Button, Word Button, Bit Lamp,
or Word Lamp when the communications address is set.
