cle is 1 s, so the number of logging points to be set is “100” (100 ÷ 1 = 100).
4. De-select both Save the data periodicall
y
and Save wit
h
Rin
g
Buffer.
3. Set the sampling cycle.
5. Set the number of logging points.
9. Set the Control start/stop data log by
the specified address.
10. Add the logging addresses.
6. Set the output file name.

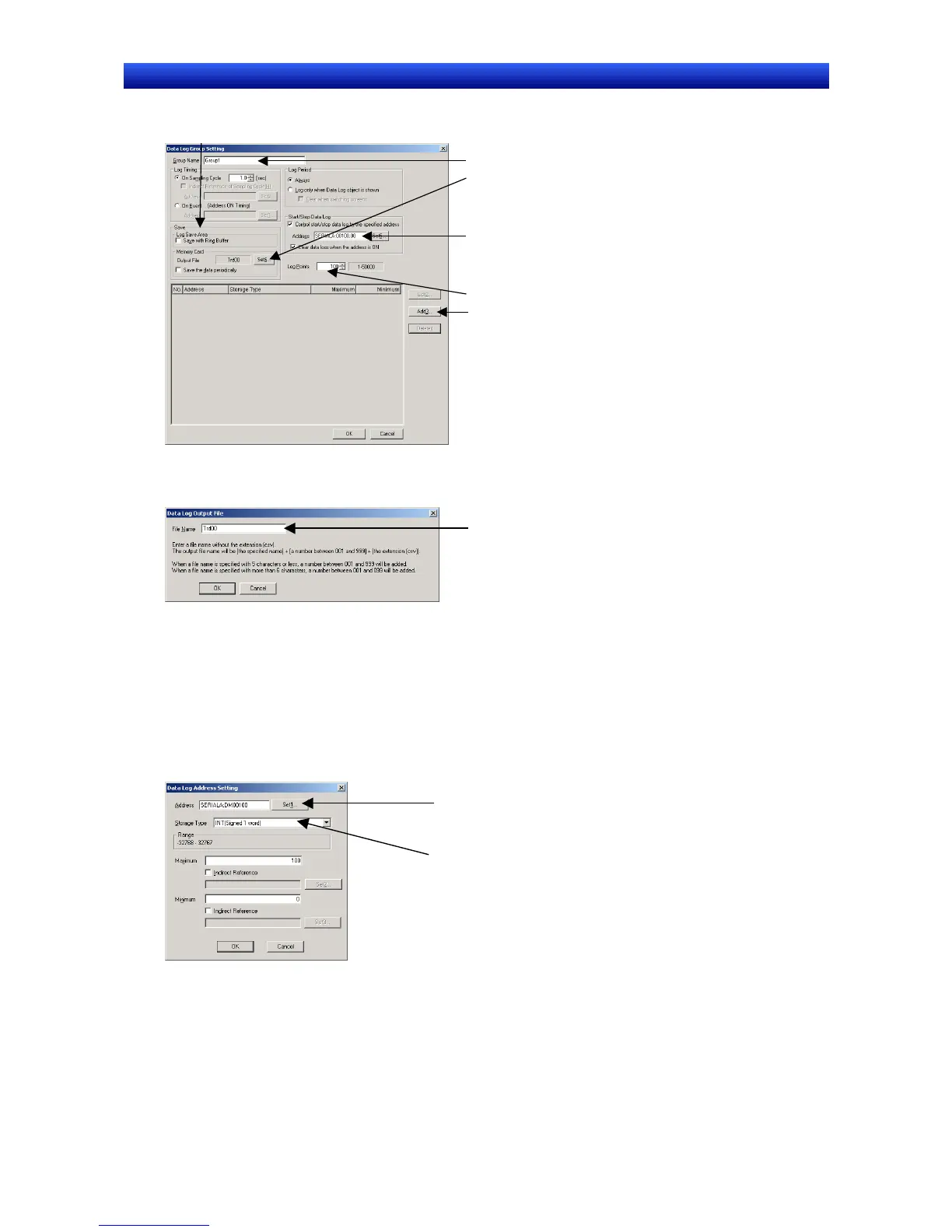

6. Click the Set Button next to Output file at the upper right of the screen to display the Data Log
Output File Dialog Box.
Enter the output file name.
The default is “Trd00”. A file name of
up to 36 alphanumeric characters can
be used.
7. Enter the output file name.
8. Click the OK Button to return to the Data Log Group Setting Dialog Box.
9. Select Control start/stop data log by the specified address ON/OFF and click the Set Button to set
the address. The address is set to “SerialA: CIO00100.00” in this example. Select Clear data logs
when he address is ON to clear the previous data log graph when the specified address changes
from OFF to ON.
10. Click the Add Button to display the Data Log Address Setting Dialog Box.
11. Set the logging address and the address storage type.
Set the logging address.
Select the storage type at the
specified address.
12. Click the OK Button to return to the Data Log Group Setting Dialog Box.
13. Click the OK Button in the Data Log Group Setting Dialog Box.
14. Click the OK Button in the Data Log Settings Dialog Box.
