Section 2 NS Series Functions 2-15 Data Logs
2-364
NS Series Programming Manual

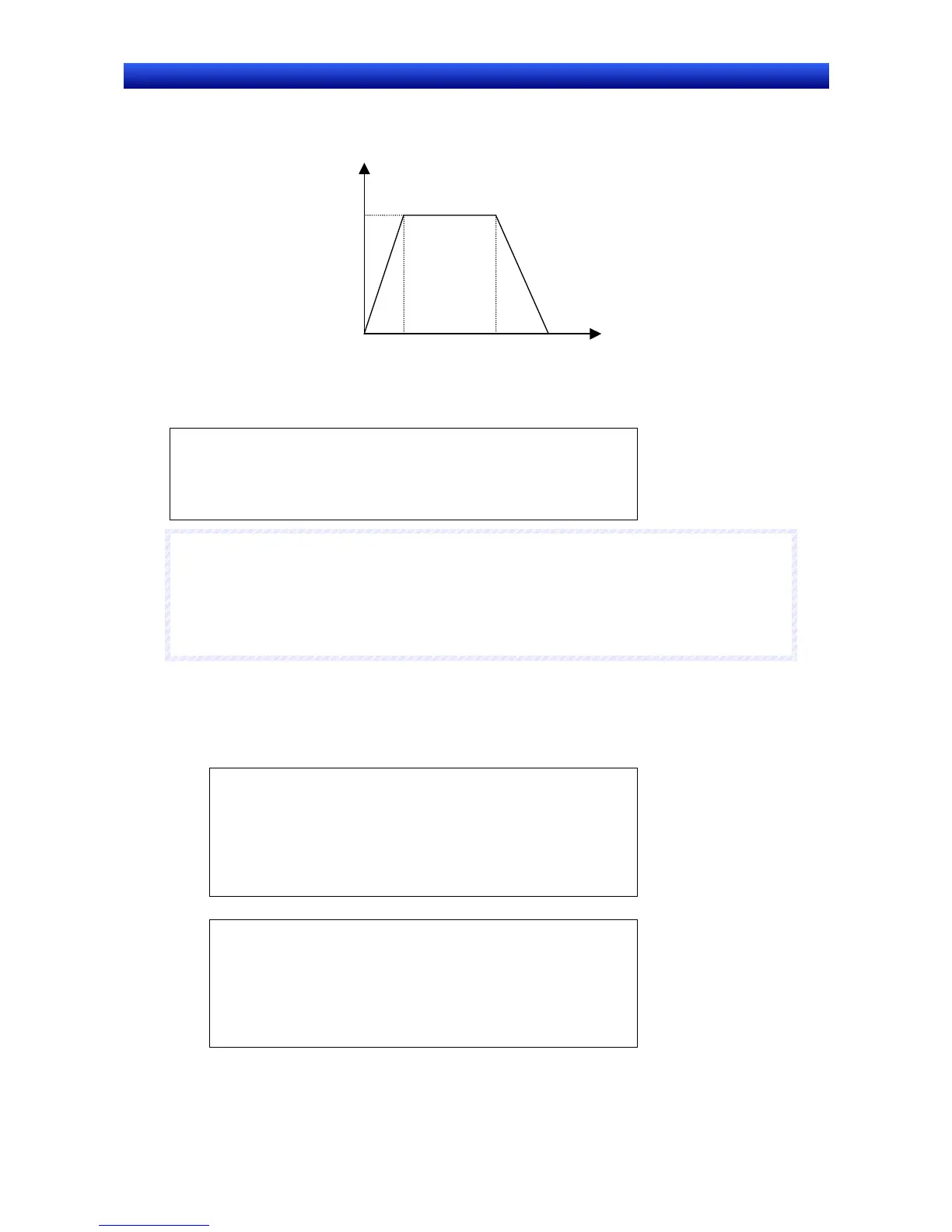

Standard data
Time (s)
Numeral
Graph display direction: Right
Logging address: SerialA: DM00000
100
7020
60
0
Procedure for Creating a CSV File
Use the following format to create the CSV file with the standard values.
#Comment
Group name, log address A name, log address B name...
OFFSET, logging start time
Time 1, address A data 1, address B data 1, ...
Time 2, address A data 2, address B data 2, ...
N
N
N
o
o
o
t
t
t
e
e
e
♦
A comment can be inserted in the first line of the file. When inserting a comment, put a hash mark
(#) directly in front of it.
♦
When the logging start time is omitted, it will appear on the graph as January 1, 1970 0 (h) 0 (m) 0
(s).
♦
When editing in Excel, set the cell format for the time to "Text."
1. Start the spreadsheet software (commercially available).
2. Enter the time on the vertical axis, the address on the horizontal axis, and the standard data, as
shown in the diagram.
1. For a sampling cycle of 0.5 s.
#Group 1 standard data
Group 1, Serial A: DM00000
OFFSET, 2004/06/21 10:00:00.000
00:00:00.000,0
00:00:20.000,60
00:01:10.000,60
00:01:40.000,0
2. For a sampling cycle other than 0.5 s.
#Group 1 standard data
Group 1, Serial A: DM00000
OFFSET, 2004/06/21 10:00:00
00:00:00,0
00:00:20,60
00:01:10,60
00:01:40,0
3. Once the editing has been completed, set the file name to Stddata@ (@: 0 to 9), make sure the
extension is "CSV," then save.
