Omron NS10-TV Series

Section 2 NS Series Functions 2-20 Special Functions
2-473
NS Series Programming Manual
Changing the File Name

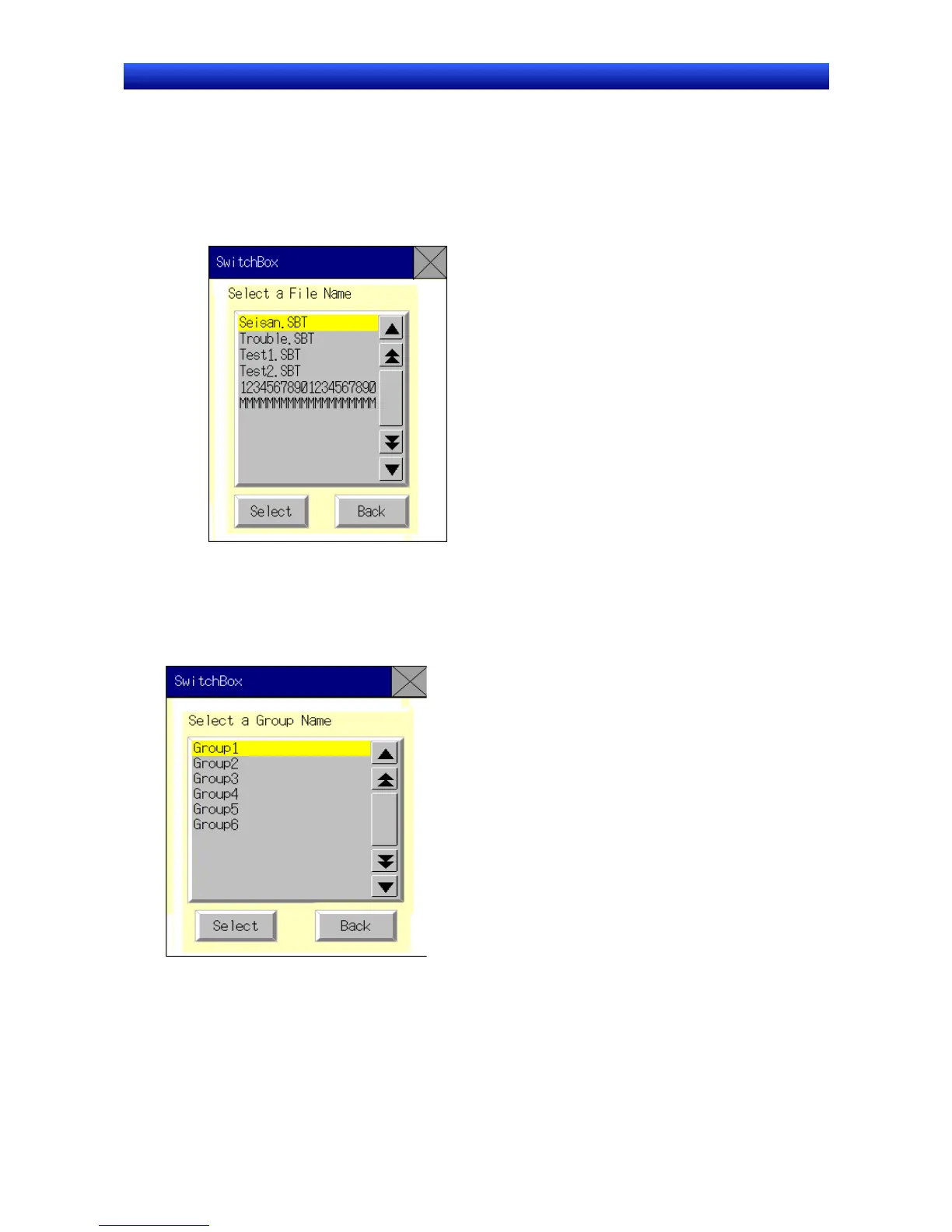

To select the file on the Switch Box Screen, use the following procedure.
1. Press the File Name or the File Name Display Area on the Switch Box Screen.
The File Selection Dialog Box will appear.
2. Select the file name.
3. Press the Select Button.
Changing the Group Name
To select the group name on the Switch Box Screen, use the following procedure.
1. Press the Group Name or the Group Name Display Area on the Switch Box Screen.
2. Select the group name.
3. Press the Select Button.
