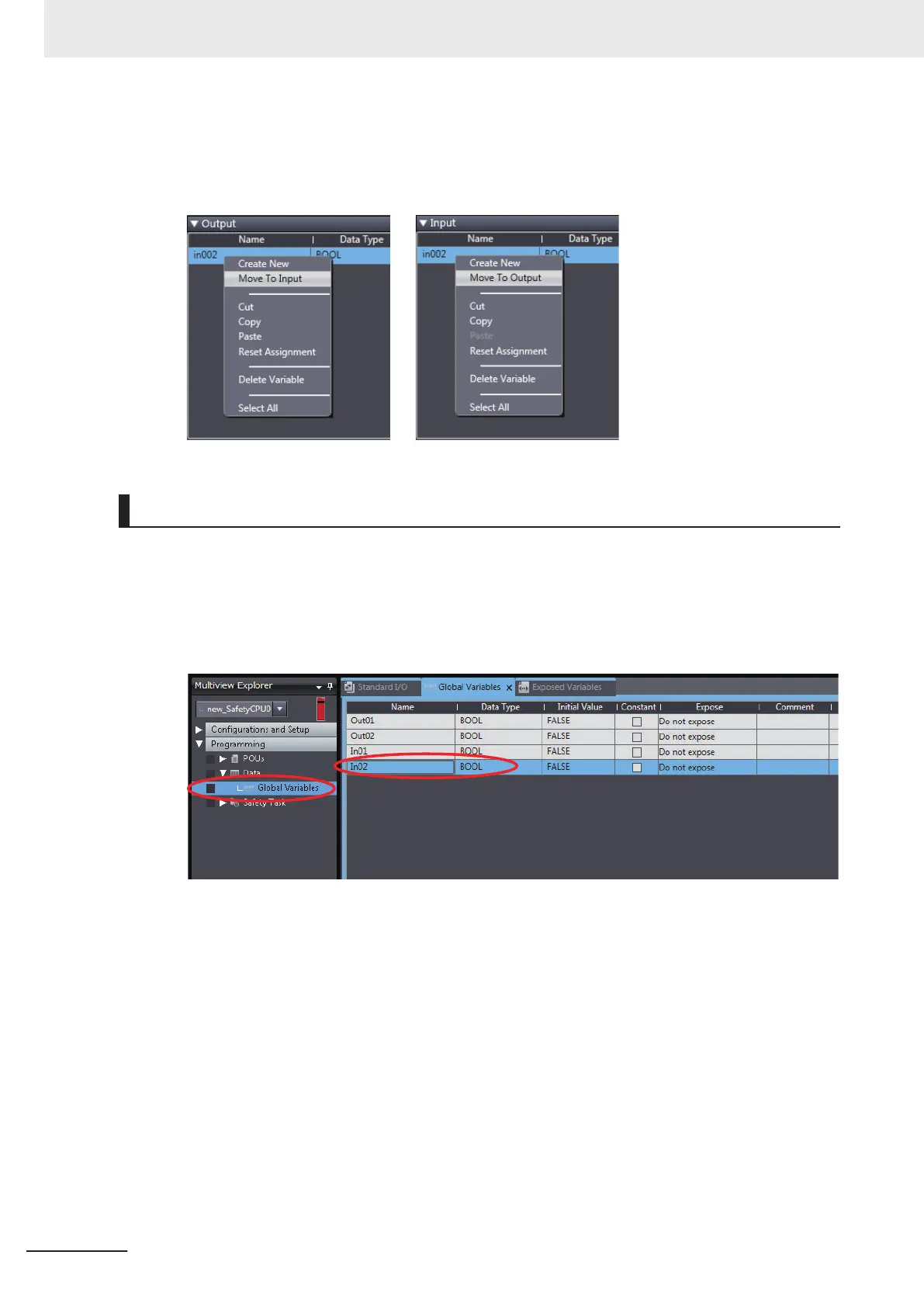

4 To change the I/O setting for an exposed variable, right-click the exposed variable and select
Move To Output or
Move To Input from the menu.
Press the Shift Key or Ctrl Key to select more than one exposed variable.
Selecting Global Variables on the Exposed Variables Tab Page
Use the following procedure to select registered global variables on the Exposed Variables Tab Page
and set them as exposed variables.
1 Register global variables with standard data types.
Refer to 6-5-3 Registering V
ariables on page 6 - 36 for details on registering variables.
2 Double-click Exposed Variables
under Configurations and Setup – Communications –
Standard – Slave I/O.
The Exposed Variables Tab Page is displayed.
5 System Configuration and Setup
5 - 34
NX-series Safety Control Unit User's Manual (Z930)
