When you select the files to import, you can press the Shift Key or Ctrl Key to select more
than one file.

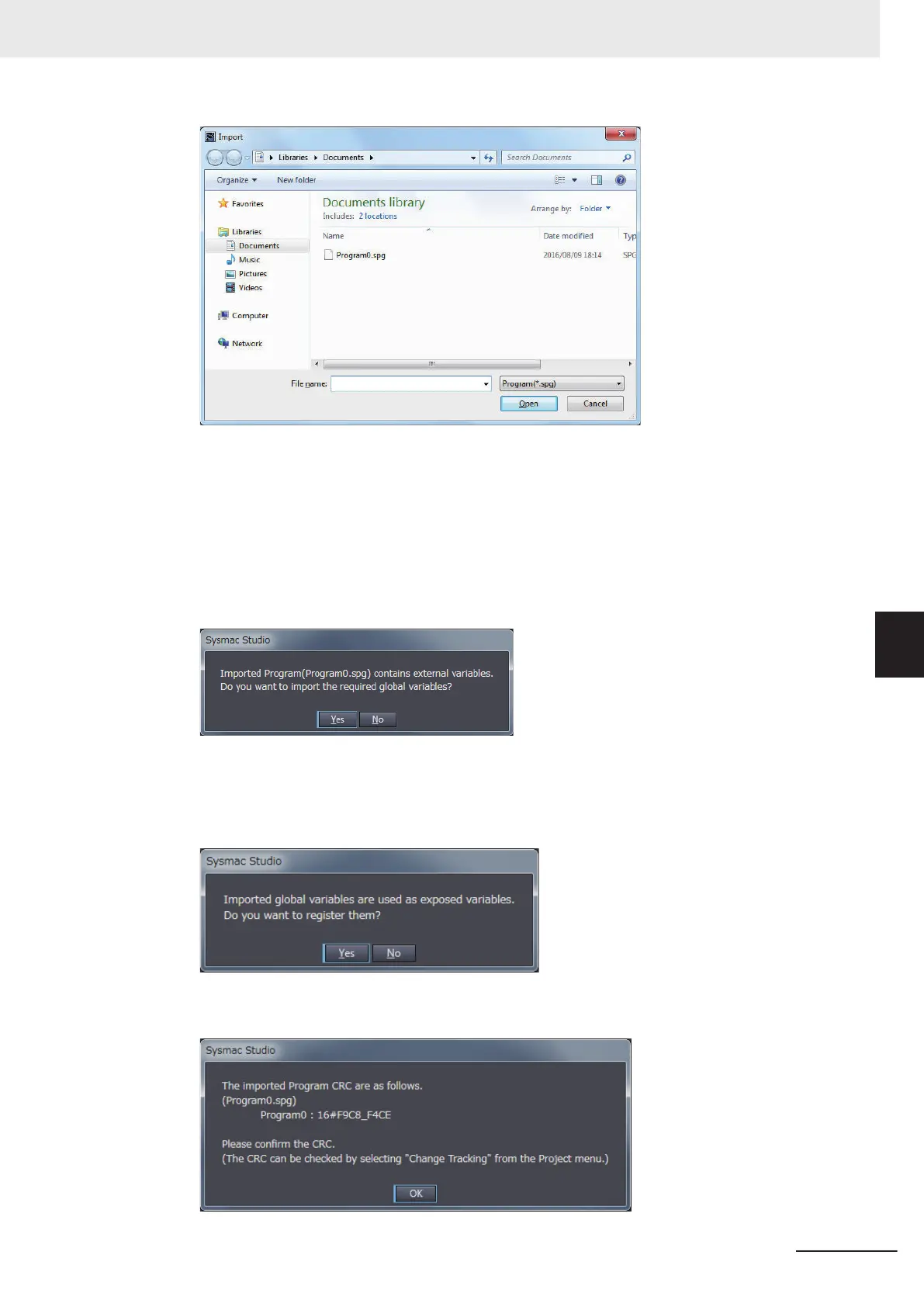

2 Select the .spg file to import, and then click the Open Button.
When external variables are used in the program to import, the following dialog box is dis-
played.
Select Y
es
to register the variables as global variables.
When the registered global variables are used as exposed variables, the following dialog box is
displayed.
Select Yes
to register the variables as exposed variables.
A dialog box to check the CRC data is displayed.
6 Programming
6 - 31
NX-series Safety Control Unit User's Manual (Z930)
6-5 Programming Operations
6
6-5-2 Registering POUs
