2 Specifications
2 - 14
NX-series Safety Control Unit User’s Manual (Z930)

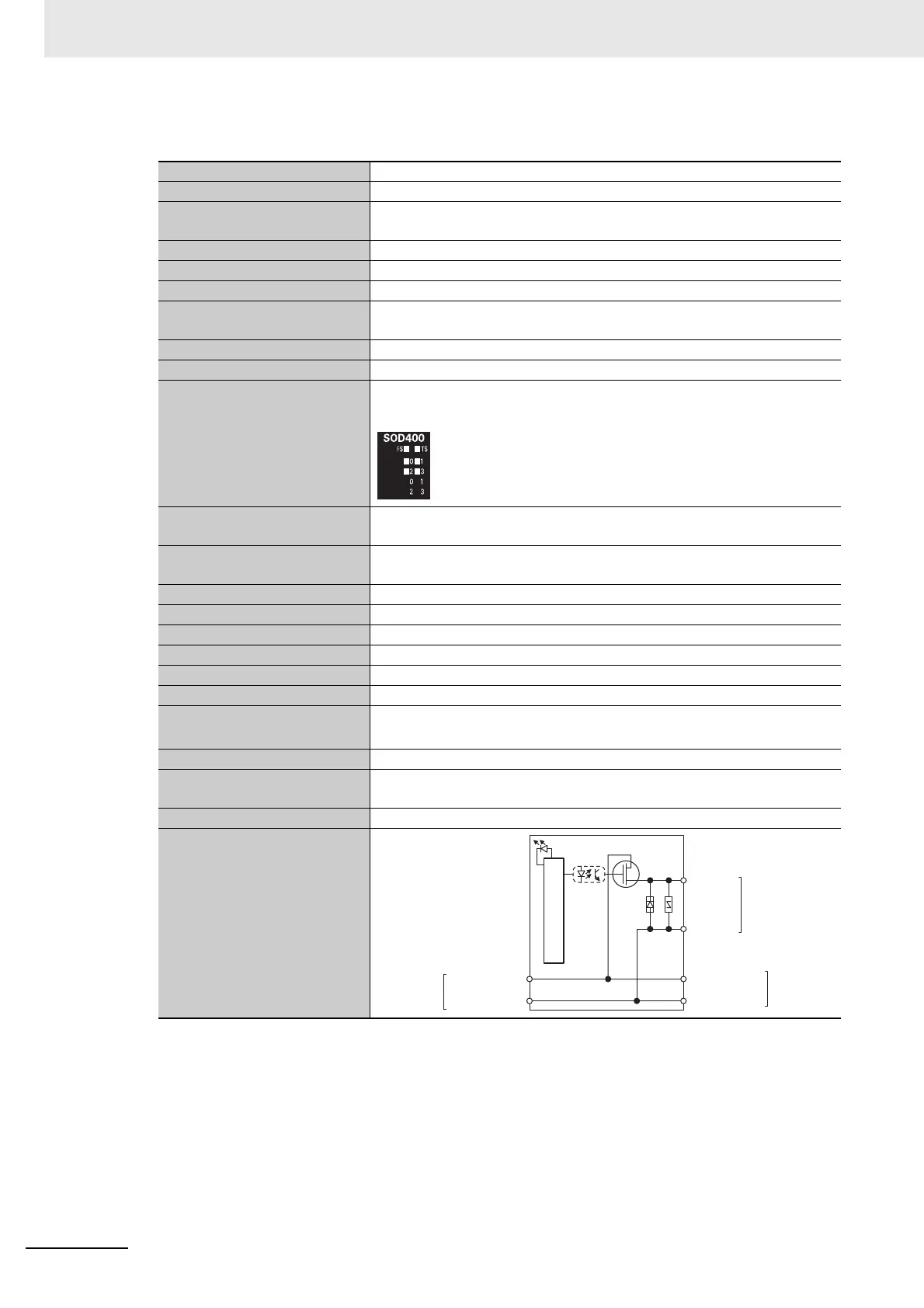

NX-SOD400
Unit name Safety Output Unit
Model NX-SOD400
Number of safety output
points
4 points
Internal I/O common PNP (sourcing outputs)
Maximum load current 0.5 A/point and 2.0 A/Unit
Rated voltage 24 VDC (20.4 to 28.8 VDC)
Number of safety slave con-
nections
1
I/O refreshing method Free-Run refreshing
External connection terminals Screwless clamping terminal block (8 terminals)
Indicators
TS indicator, FS indicator, output indicators (yellow), and output
error indicators (red)
Safety output ON residual
voltage
1.2 V max. (Between IOV and all output terminals)
Safety output OFF residual
voltage
2 V max. (between IOG and all output terminals)
Safety output leakage current 0.1 mA max.
Dimensions 12 × 100 × 71 mm (W × H × D)
Isolation method Photocoupler isolation
Insulation resistance 20 MΩ min. between isolated circuits (at 100 VDC)
Dielectric strength 510 VAC for 1 min between isolated circuits, leakage current: 5 mA max.
I/O power supply method Power supplied from the NX bus
Current capacity of I/O power
supply terminals
IOG (A3 and B3): 2 A max./terminal
IOG (A7 and B7): 0.5 A max./terminal
NX Unit power consumption 0.75 W max.
Current consumption from I/O
power supply
60 mA max.
Weight 65 g max.
Circuit layout
So0 to So3
IOG
I/O power supply +
I/O power supply −
Terminal block
Left-side NX
bus connector
I/O power supply +
I/O power supply −
Right-side NX
bus connector
Internal circuits
