4 Checking Wiring from the Sysmac Studio
4-10
NJ/NX-series CPU Unit Motion Control User’s Manual (W507)
1
Click the Absolute positioning Tab on the MC Test Run Tab Page.

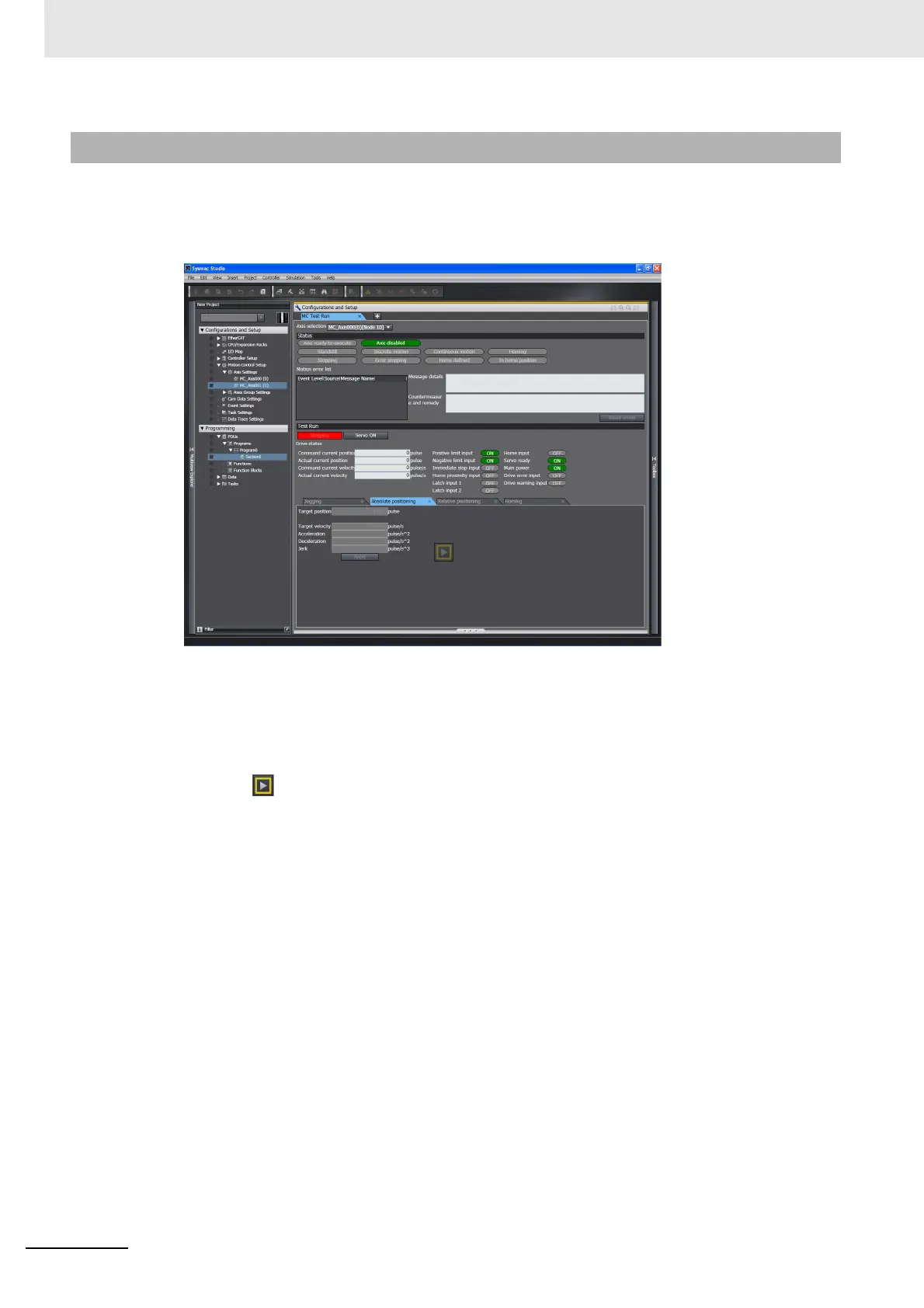

The following dialog box will appear.
2
Select the axis to perform absolute positioning.
3
Click the Servo ON Button to turn ON the Servo.
4
Enter the target position, target velocity, acceleration rate, deceleration rate, and jerk, and then
click the Apply Button.
5
Click the Button. Absolute positioning will start.
Check to see if positioning agrees with the settings.
4-3-4 Absolute Positioning
