4-11
4 Checking Wiring from the Sysmac Studio
NJ/NX-series CPU Unit Motion Control User’s Manual (W507)
4-3 Checking Motor Operation
4
4-3-5 Relative Positioning
1

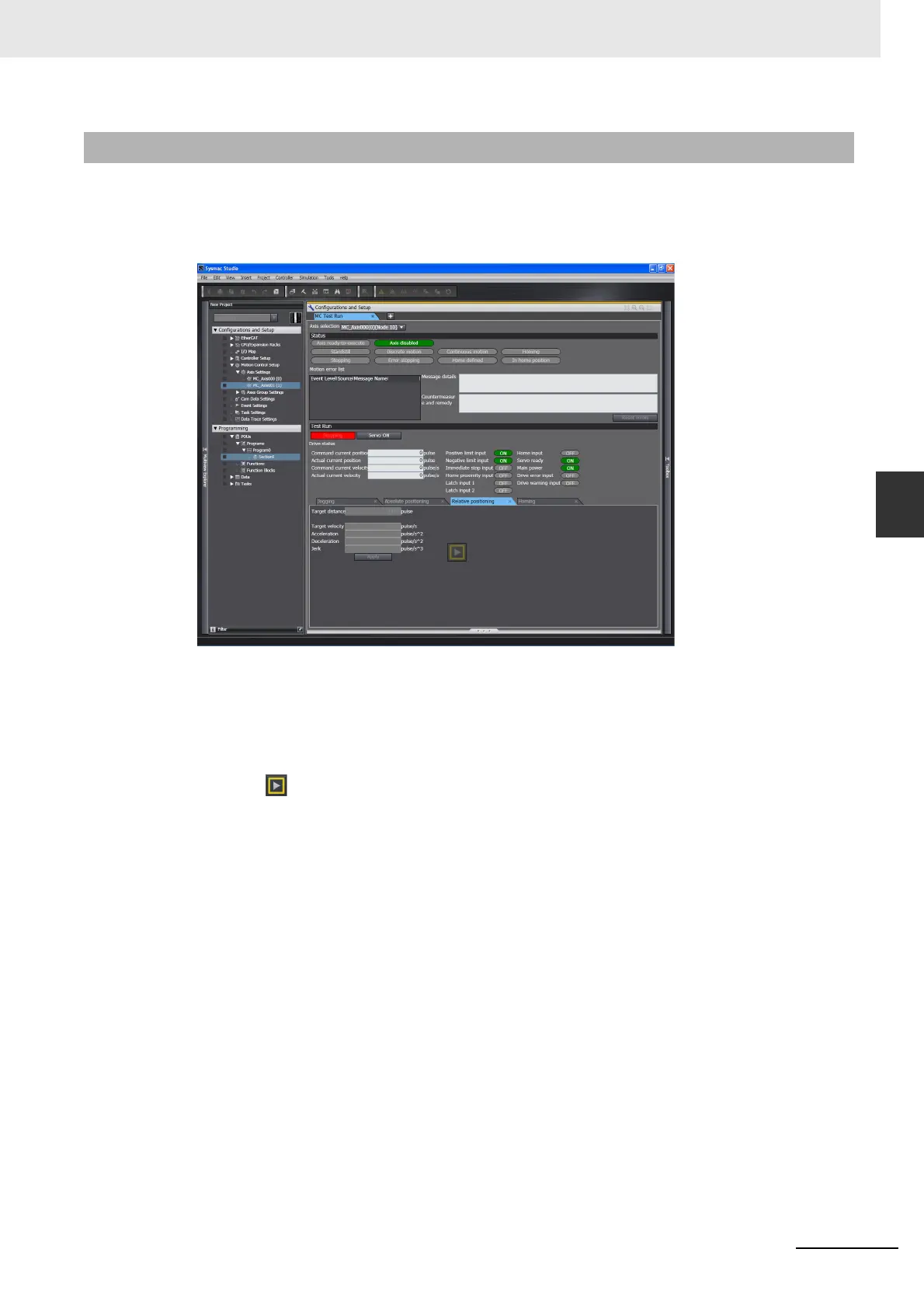

Click the Relative positioning Tab on the MC Test Run Tab Page.
The following dialog box will appear.
2
Select the axis to perform relative positioning.
3
Click the Servo ON Button to turn ON the Servo.
4
Enter the target travel distance, target velocity, acceleration rate, deceleration rate, and jerk,
and then click the Apply Button.
5
Click the Button. Relative positioning will start.
Check to see if the travel distance agrees with the settings.
4-3-5 Relative Positioning
To Next Page
