3-11
3 Configuring Axes and Axes Groups
NJ/NX-series CPU Unit Motion Control Userās Manual (W507)
3-2 Axis Setting Procedure
3
3-2-2 Setting Procedure

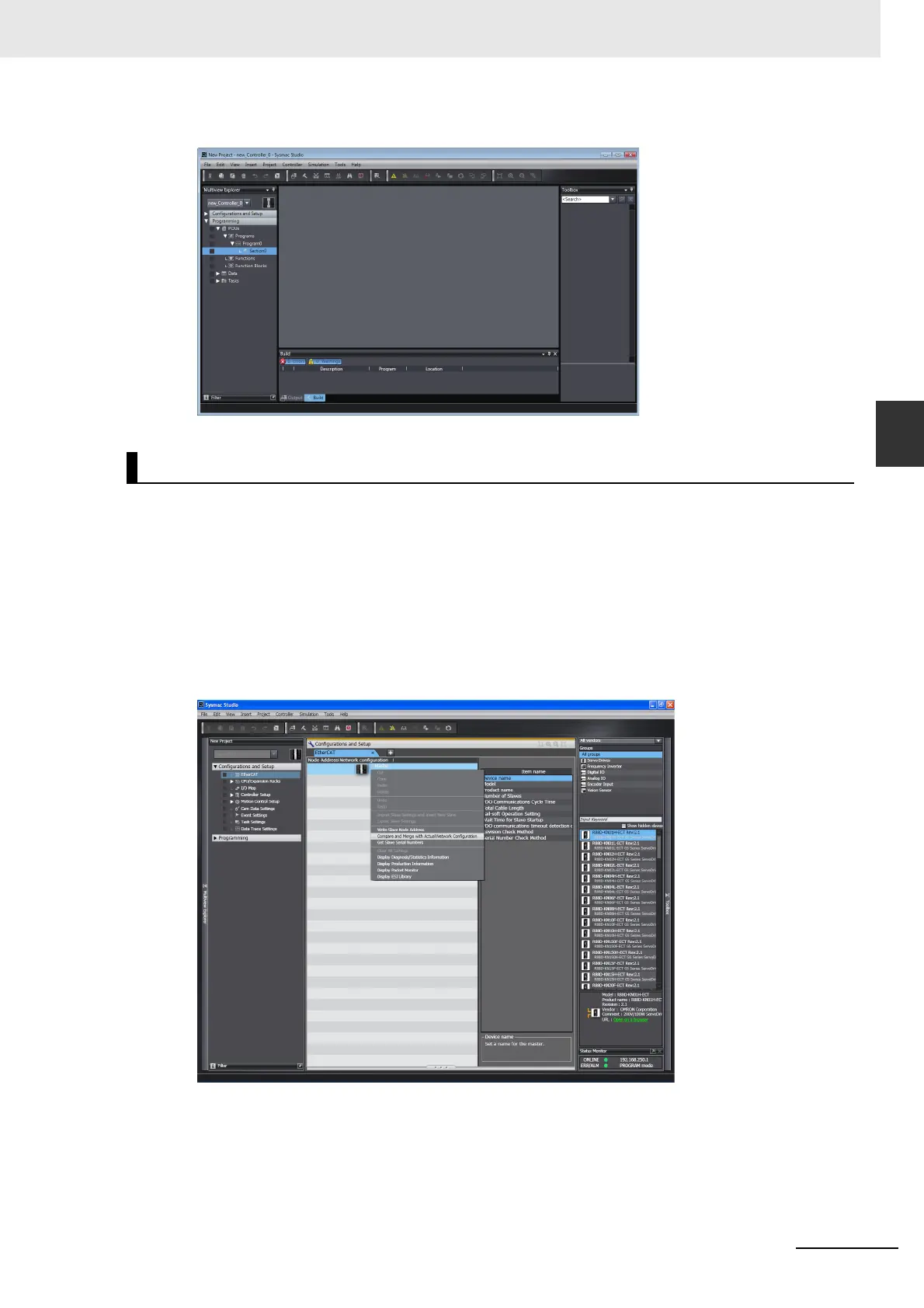

A new project is displayed.
There are two methods to create an EtherCAT Network Configuration: online and offline.
ļ¬ Online Method
1
Double-click EtherCAT in the Multiview Explorer.
The EtherCAT Tab Page is displayed.
2
Select Online from the Controller Menu. The Sysmac Studio goes online with the Controller.
3
Right-click the Master Icon in the EtherCAT Tab Page and select Compare and Merge with
Actual Network Configuration from the menu.
When obtaining the information is completed, the physical slave configuration of the EtherCAT
slaves is displayed. Right-click the displayed physical configuration and select Apply actual
network configuration.
Creating the EtherCAT Network Configuration
To Next Page
