Storing Inverter set values in the Digital Operator (READ)
To store Inverter set values in the Digital Operator use the following method.
If a fault is displayed press any key to clear the fault display and return to the o3-01 display. Fault displays and
their meanings are shown below.
Select READ Prohibited
This function prevents overwriting of the data that are stored in the EEPROM of the Digital Operator. When
o3-02 is set to 0 and o3-01 is set to 1 to perform a write operation PrE will be displayed on the Digital Opera-
tor and the write operation will be stopped.
If it is safe to overwrite the parameter set stored in the Digital Operator set o3-02 to 1 and start the READ
function again by setting o3-01 to 1.

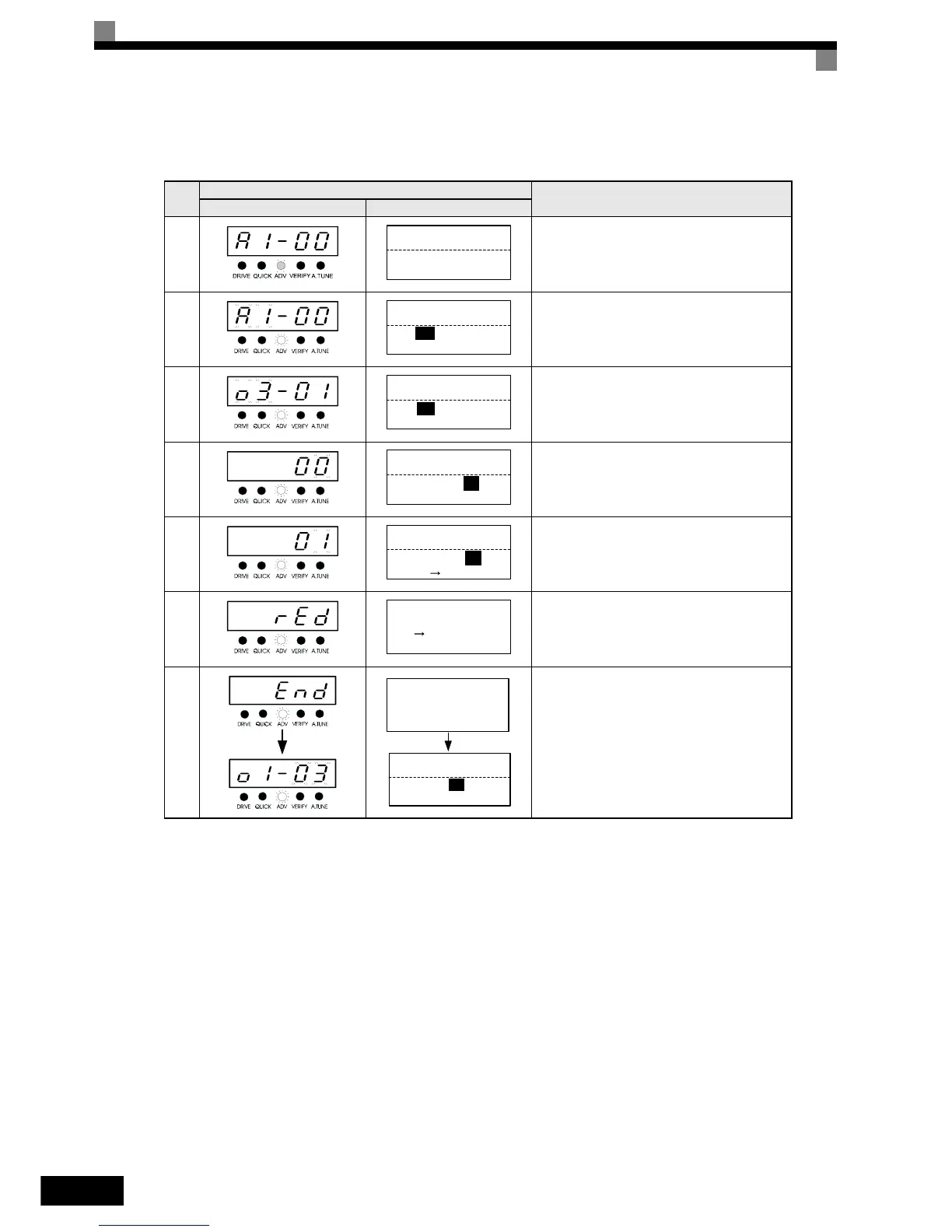

Step
No.
Digital Operator Display
Explanation
LED Digital Operator LCD/HOA Digital Operator
1
Press the MENU key until the Advanced Pro-
gramming Mode is reached.
2
Press the DATA/ENTER key to enter the Func-
tion Selection Display in Advanced Program-
ming Mode.
3
Scroll to parameter o3-01 (Copy Function
Selection) using the Increment key and Decre-
ment key.
4
Press the DATA/ENTER key to enter the
Parameter Setting Display.
5
Change the set value to 1 using the Increment
key.
6
Press the DATA/ENTER key. The READ func-
tion will start.
7
When the READ function is completed “End”
respectively “Read Complete” is displayed on
the Digital Operator for appr. 1 second. Then
the display returns to the Monitor Display and
parameter o1-03 is automatically reset to 0.
** Main Menu **
-ADV-
Programming
Initialization
-ADV-
A1 - 00=1
Select Language
COPY Function
-ADV-
o3 - 01=0
Copy Funtion Sel
Copy Function Sel
-ADV-
o3
-01= 0
COPY SELECT
*0*
Copy Function Sel
-ADV-
o3
-01=
1
*0*
INV OP READ
READ
-ADV-
INV OP
READING
READ
-ADV-
READ COMPLETE
Copy Function Sel
-ADV-
o3
-
01=0
COPY SELECT
*0*
