6-116
Comparing Inverter Parameters and Digital Operator Parameter Set Values (VERIFY)
To compare Inverter parameters and Digital Operator parameter set values, use the following method.
If an fault is displayed, press any key to cancel the fault display and return to the o3-01 display. Fault displays
and their meanings are shown below. (Refer to Chapter 7, Digital Operator Copy Function Faults.)
Application Precautions
When using the copy function, check that the following settings are the same between the Inverter and the
Digital Operator.
• Inverter product and type
• Software number
• Inverter capacity and voltage

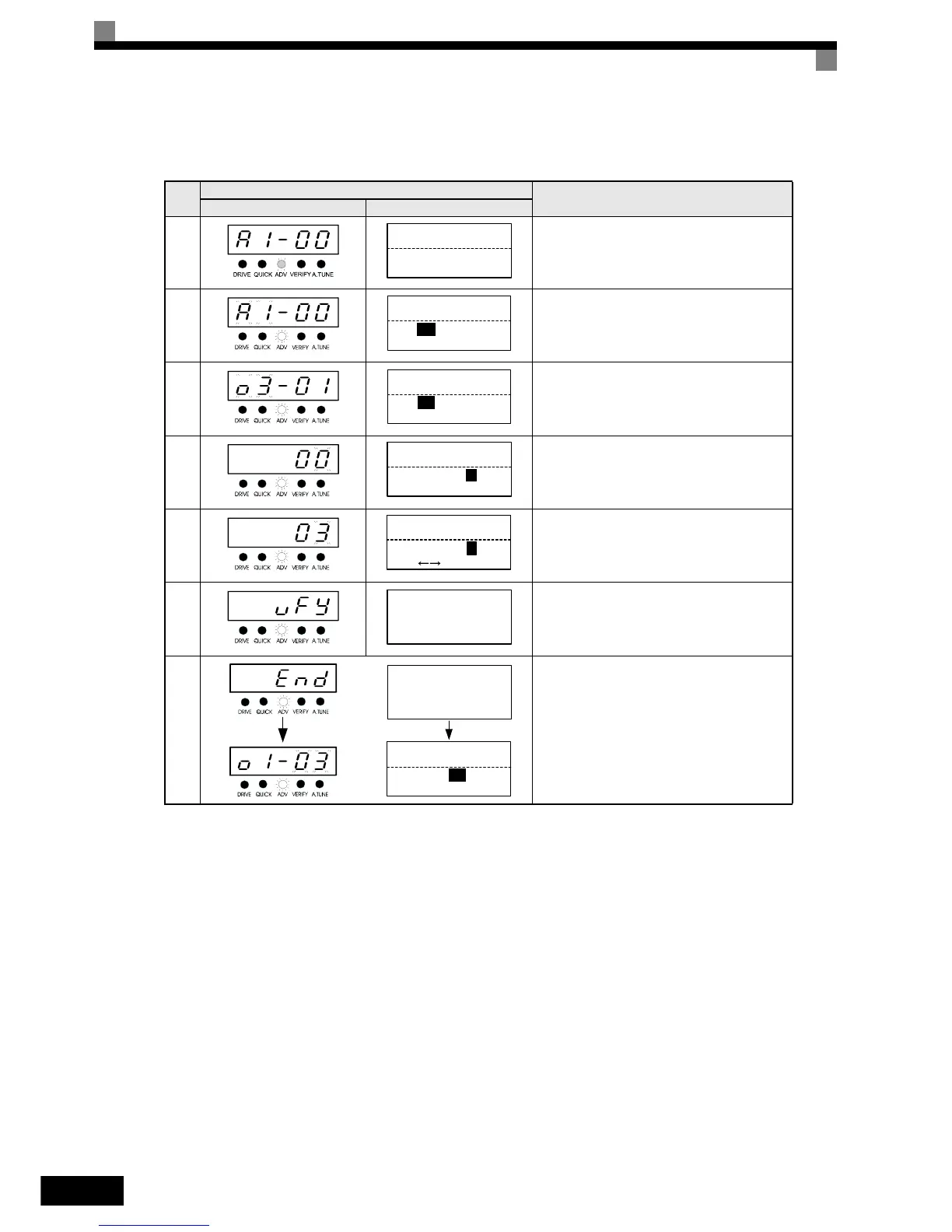

Step
No.
Digital Operator Display
Explanation
LED Digital Operator LCD/HOA Digital Operator
1
Press the MENU key until the Advanced Pro-
gramming Mode is reached.
2
Press the DATA/ENTER key to enter the Func-
tion Selection Display in Advanced Program-
ming Mode.
3
Scroll to Parameter o3-01 (Copy Function
Selection) using the Increment key and Decre-
ment key.
4
Press the DATA/ENTER key to enter the
Parameter Setting Display.
5
Change the set value to 3 using the Increment
key.
6
Press the DATA/ENTER key. The VERIFY
function will start.
7
When the VERIFY function is completed
“End” respectively “Verify Complete is dis-
played on the Digital Operator for appr. 1 sec-
ond. Then the display returns to the Monitor
Display and parameter o1-03 is automatically
reset to 0.
** Main Menu **
-ADV-
Programming
Initialization
-ADV-
A1 - 00 = 1
Select Language
COPY Function
-ADV-
o3
- 01=0
Copy Funtion Sel
Copy Function Sel
-ADV-
o3-01= 0
COPY SELECT
*0*
Copy Funtion Sel
-ADV-
o3-01= 3
*0*
OP INV VERIFY
VERIFY
-ADV-
DATA VERIFYING
VERIFY
-ADV-
VERIFY COMPLETE
Copy Function Sel
-ADV-
o3
-
01 = 0
COPY SELECT
*0*
