Special Considerations for IP54 Inverters of 22 and 30kW capacity

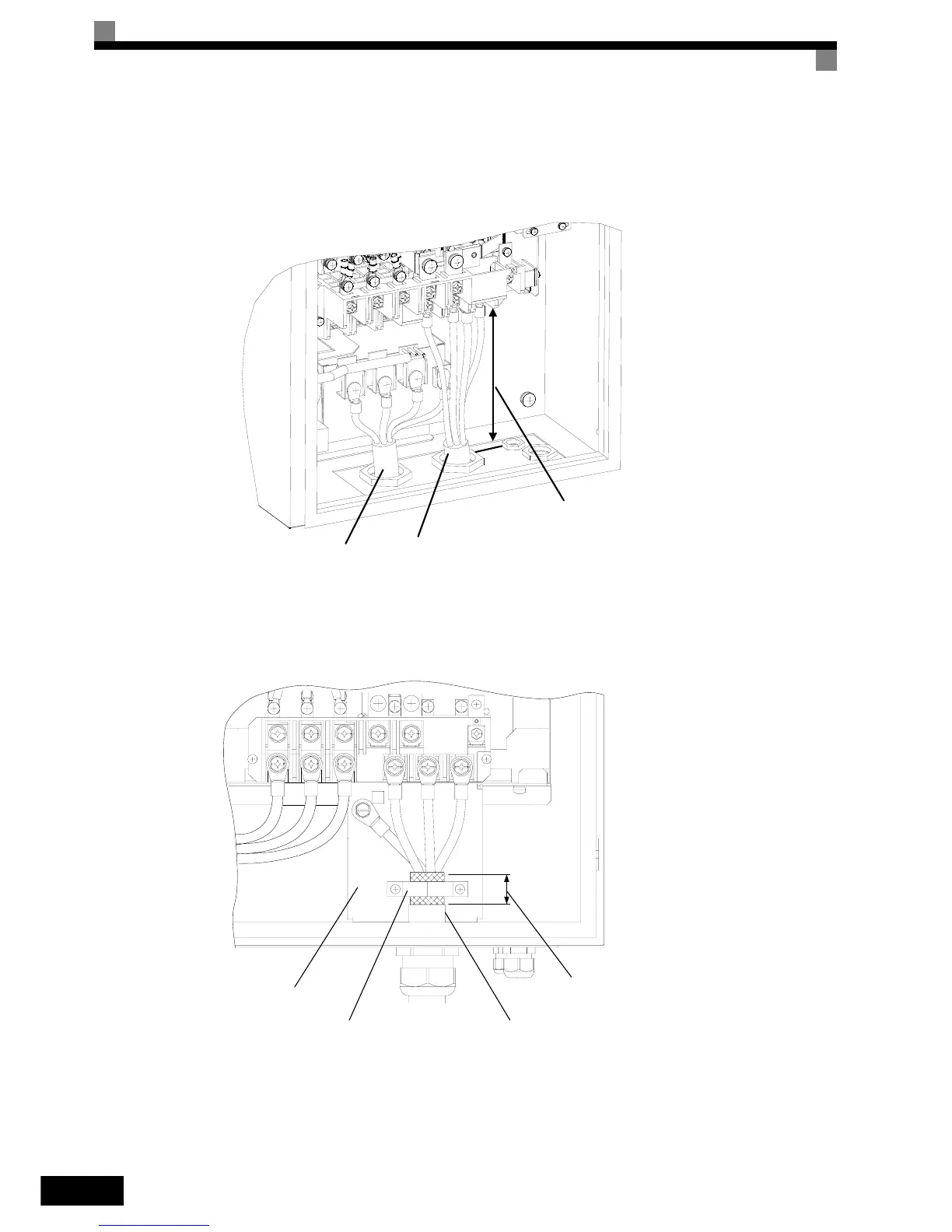

Install the shielded output cable as shown in the Fig 2.12.
Remove the braided shield on the output cable entirely from the entry hole to the terminal end to avoid short
circuit to the input terminals or the filter.
Fig 2.12 Motor Cable Installation for IP54 Inverters of 22 and 30kW
Installing the Motor Cable at IP54 Inverters of 37 to 55kW capacity
Install the shielded output cable as shown in the figure below. Remove the outer sheath and clamp the braided
shield by the earth clamp.
Fig 2.13 Motor Cable Installation for IP54 Inverters of 37 to 55kW
Remove the braided shield entirely
from the entry hole to the terminal end.
Input Cable
Output Cable
(Shielded Cable)
Output Cable
Earth Plate
Remove the outer sheath
and clamp the braided
shield by the earth clamp
.
Earth Clamp
