Wiring Main Circuit Terminals
2-25
2. With thin wires and without an inner sheath
Note:
To ensure conformity to EMC regulations the shielded cable has to be locked tightly by the metal cable gland.
Confirm the cable length and the terminal specifications before fitting the metal cable gland.
Close the cable gland.
appr. 15 to 20 mm

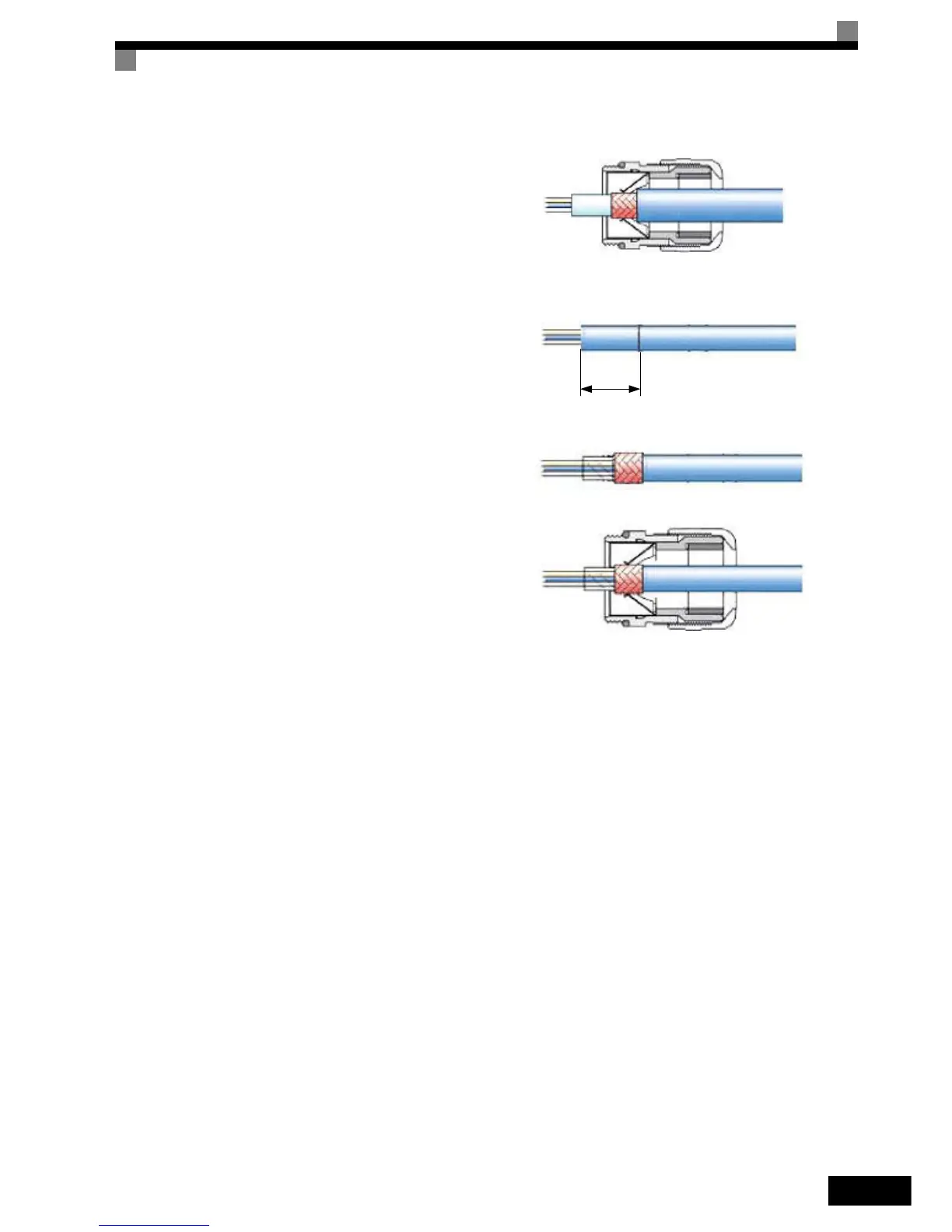

Make a round cut into the sheath, with a
length of appr. 15 to 20mm and remove it.
Pull back the braided shield over the outer
sheath, the inner shield should be kept for
easier guiding through the gland.
Guide the cable through the gland until the
shield has proper contact to the springs of
the cable gland and close the cable gland.
