Wiring Control Circuit Terminals
2-33
îš„Switch S1 and Jumper CN15 - Optional Terminal Board
An optional terminal board which supports switching the signal type of the analog outputs FM and AM
between voltage and current is available.The switch over can be performed using jumper CN15. The switch
S1 has the same function like on the standard terminal board. See Fig 2.20 for details.

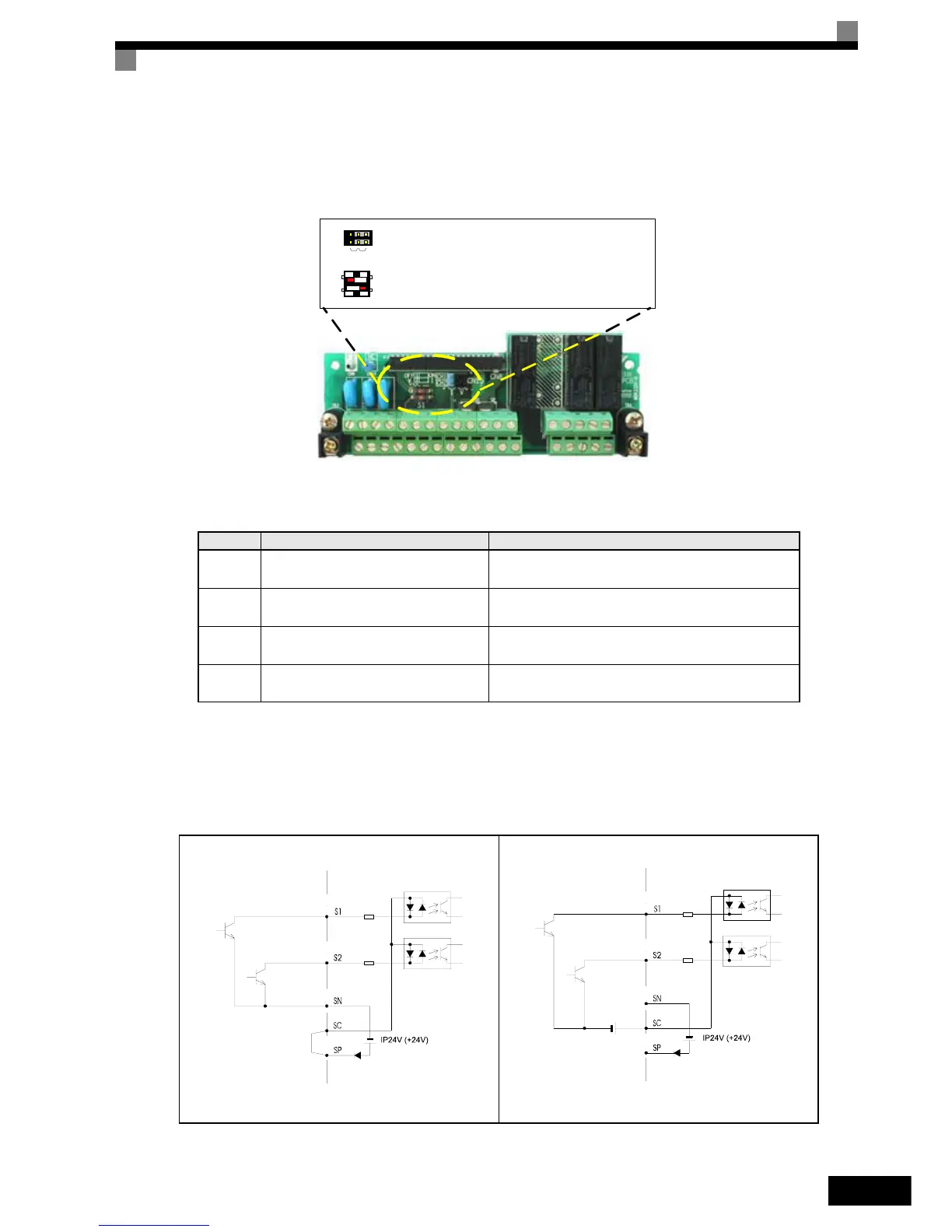

Fig 2.20 Optional terminal board - Switch S1 and jumper CN15 function
The settings of switch S1 and jumper CN15 are described in the following table.
îš„ Sinking/Sourcing Mode
The input terminal logic can be switched between sinking mode (0-V common, NPN) and sourcing mode
(+24V common, PNP) by using the terminals SN, SC, and SP. An external power supply is also supported,
providing more freedom in signal input methods.
Name Function Setting
S1-1
RS-485 and RS-422 terminating resis-
tance
OFF: No terminating resistance
ON: Terminating resistance of 110 Ω
S1-2 Input method for analog input A2
V: 0 to 10 V (internal resistance: 20 kΩ)
I: 4 to 20 mA (internal resistance: 250 Ω)
CN15-
CH1
Multifunction analog output FM voltage/
current switch
I: Current output
V: Voltage output
CN15-
CH2
Multifunction analog output AM voltage/
current switch
I: Current output
V: Voltage output
Table 2.15 Sinking / Sourcing Mode and Input Signals
CN15
Ch1
Ch2
VI
RS422/485 Port Termination Resistance
Analog Input A2 Current/Voltage Signal Selection
Analog Output FM Current/Voltage Signal Selection
Analog Output AM Current/Voltage Signal Selection
S1
Off On
V I
Interna
