Setting User Parameters using the LED Digital Operator
Below in Table 3.3 the procedure to change C1-01 (Acceleration Time 1) from 10 sec. to 20 sec. is shown
using the LED Digital Operator
.

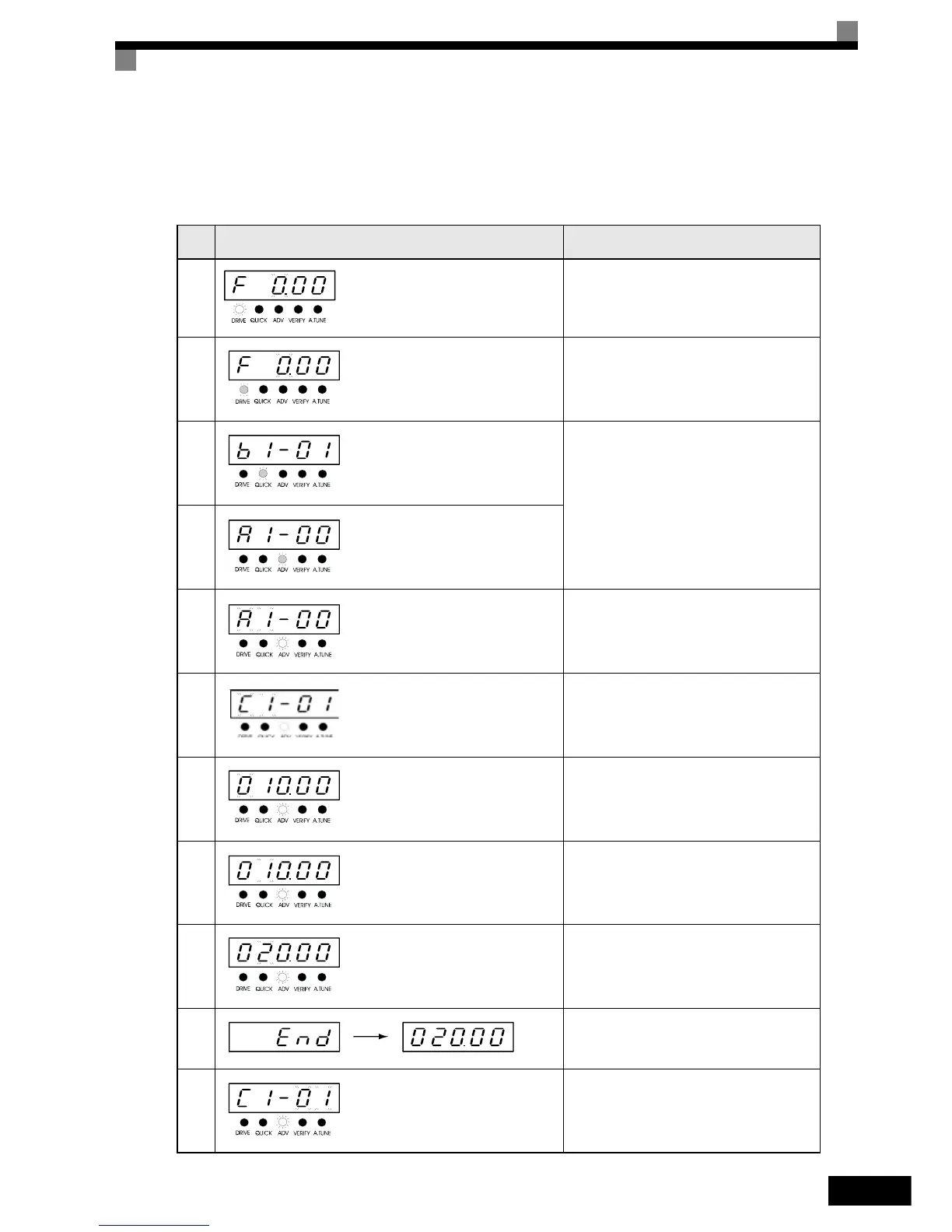

Table 3.3 Setting User Parameters in Advanced Programming Mode using the LED Digital Operator
Step
No.
Digital Operator Display Description
1 Power supply turned ON.
2
Press the MENU key to enter the Mode Selec-
tion Display.
3
Press the MENU key to scroll through the
Mode Selection Display.
4
5
Press the DATA/ENTER key to access the
Monitor Display in Advanced Programming
Mode.
6
Press the Increment or Decrement key until
C1-01 (Acceleration Time 1) is displayed.
7
Press the DATA/ENTER key to access the set-
ting display. The setting can be changed now.
8
Press the Shift/RESET key to move the flash-
ing digit to the right.
9
Press the Decrement key to change the value to
20.00sec.
10
Press the DATA/ENTER key to validate the
new setting. “End” is displayed for 1 sec., then
the new parameter setting for 0.5 sec.
11 The display returns to the Monitor Display.
