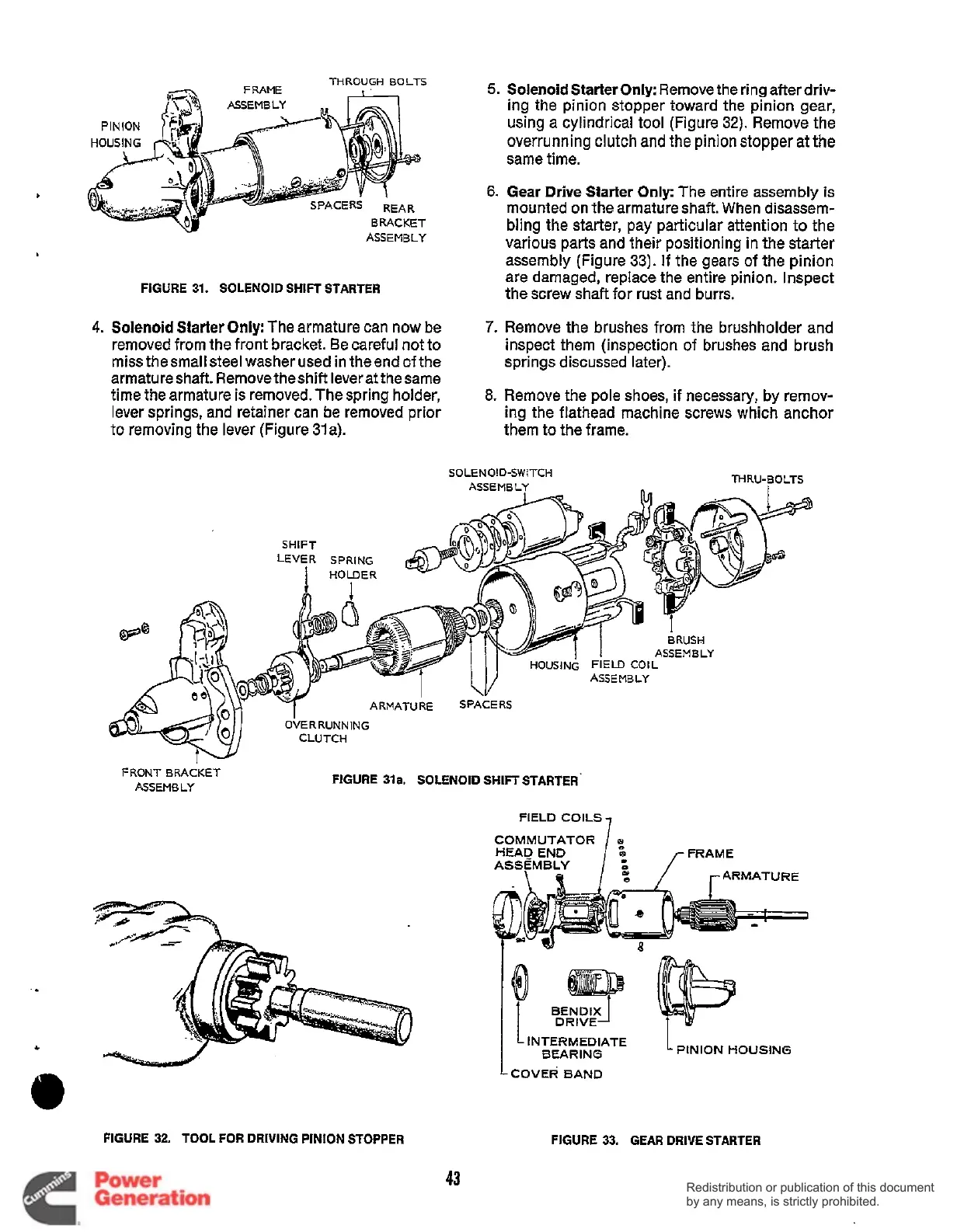

THROUGH
BOLTS
5.
Solenoid Starter Only:
Remove
the
ring afterdriv-
ing the pinion stopper toward the pinion gear,
using a cylindrical tool (Figure
32).
Remove the
overrunning clutch and the pinion stopper
at
the
same time.
6.
Gear Drive Starter
Only:
The entire assembly is
ASSEMBLY
FIGURE
31.
SOLENOID
SHIFT
STARTER
mounted on the armature shaft. When disassem-
bling the starter, pay particular attention to the
various parts and their positioning in the starter
assembly (Figure
33).
If the gears of the pinion
are damaged, replace the entire pinion. Inspect
the screw shaft for rust and burrs.
4.
Solenoid
Starter
Only:
The armature can now be
7.
removed from the front bracket. Be careful not to
miss thesmall steel washer used in
the
end
of
the
armatureshaft. Removetheshift leveratthesame
time the armature
is
removed. The spring holder,
lever springs, and retainer can be removed prior
to removing the lever (Figure 31a).
8.
Remove the brushes from the brushholder and
inspect them (inspection
of
brushes and brush
springs discussed later).
Remove the pole shoes, if necessary, by rernov-
ing the flathead machine screws which anchor
them to the frame.
MRU-BOLTS
SOLENOID-SWITCH
ASS E MB LY
i
SHIFT
LEVER SPRING
I
HOLDER
rI
"z
-1
BRLISH
ARMATURE SPACERS
OVERRUNNING
CLUTCH
FRONT BRACKET
ASSEMBLY
FIGURE
31a.
SOLENOID
SHIFT
STARTER.
FIGURE
32.
TOOL
FOR DRIVING PINION STOPPER
FIELD
COILS
ASSEMBLY
INTERMEDIATE
BEARING PINION HOUSING
1
COVER BAND
FIGURE
33.
GEAR DRIVE STARTER
43
