ZS3-2 Controller Hardware Overview
Ethernet Ports
The ZS3-2 has four RJ-45 10-Gigabit Ethernet (10GbE) network connectors, labeled NET 3,
NET 2, NET 1, and NET 0 (left to right) on the rear panel. The ports operate at 100 Mbits/sec,
1000 Mbits/sec, or 10-Gbits/sec. Use these ports to connect the appliance to the network.
TABLE 23
ZS3-2 Ethernet Port LEDs Description
Connection Type EEE Terminology Speed LED Color Transfer Rate
Fast Ethernet 100BASE-TX Off 100 Mbits/sec
Gigabit Ethernet 1000BASE-T Amber 1000 Mbits/sec
10 Gigabit Ethernet 10GBASE-T Green 10000 Mbits/sec
The LEDs located above each NET port are Link/Activity (left) and Speed (right) indicators for
each port.

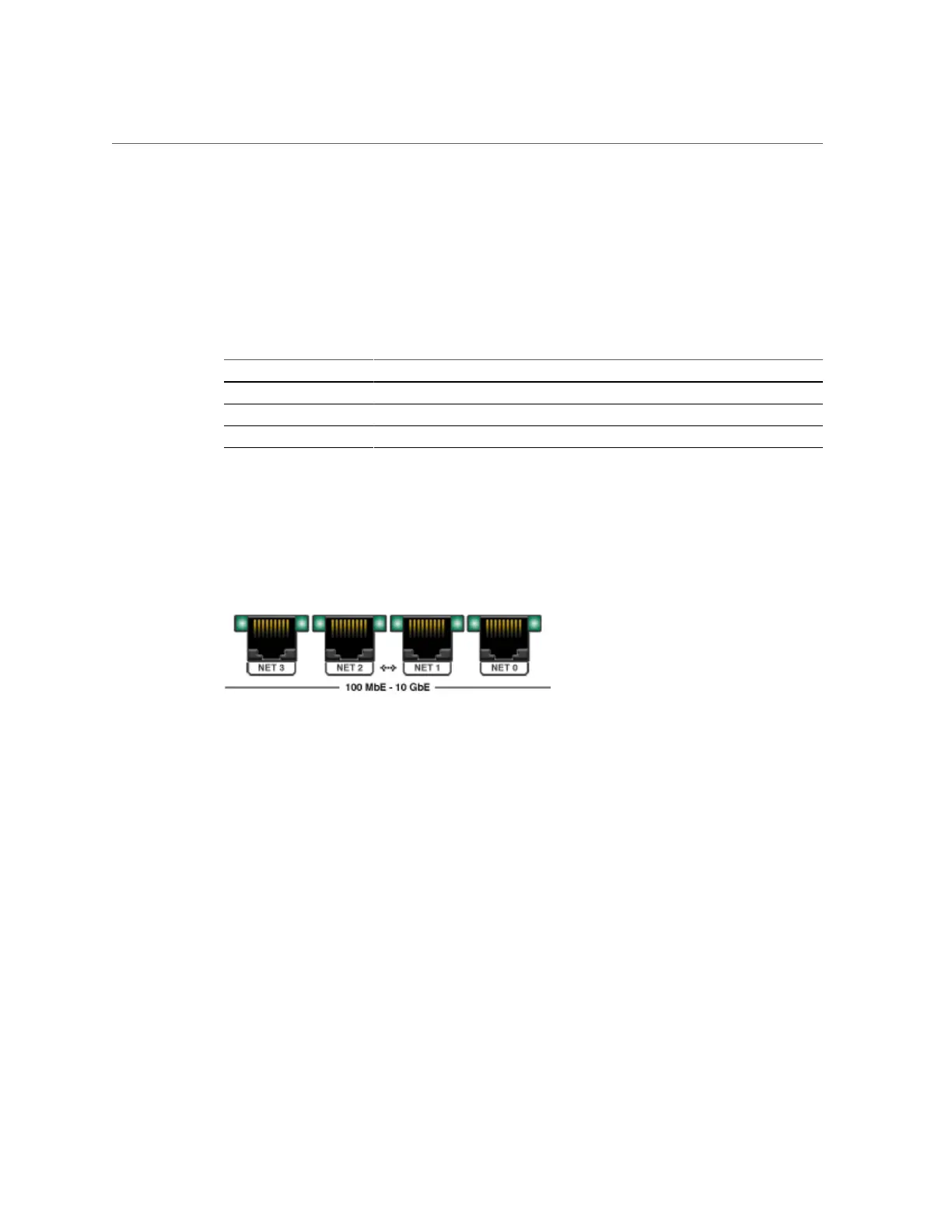

FIGURE 26
ZS3-2 Controller Ethernet Ports
Network Management Port
The network management connector (NET MGT) is an RJ-45 10/100 BASE-T Ethernet port
and provides an alternate terminal interface to the SP console.
Servicing the ZS3-2 Controller 159
