Install the Rackmount Hardware
Installing the Server 39
b.

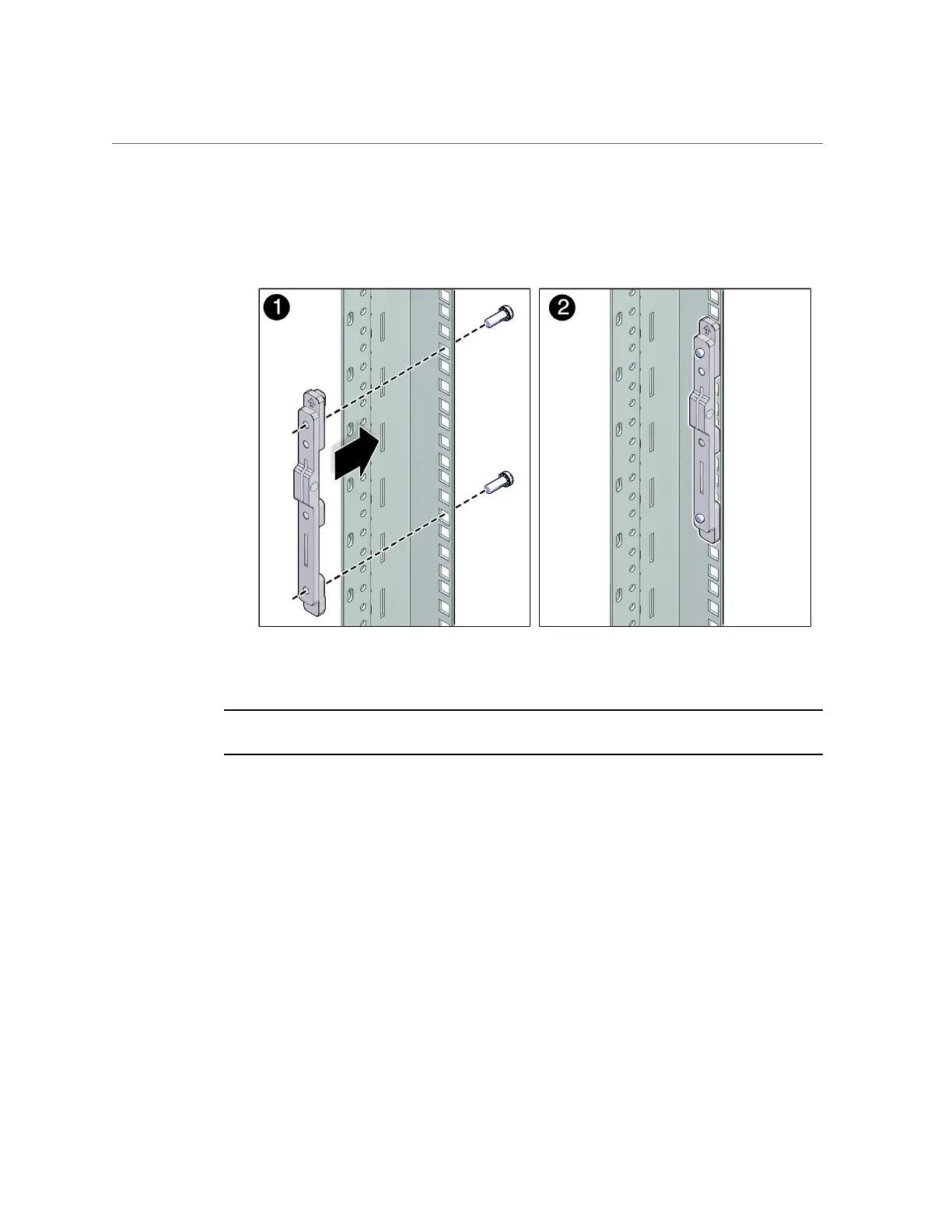

Secure the adapter bracket top and bottom holes using two No. 2 Phillips
screws.
3.
Install the shelf rails.
Note - The shelf rails are marked “FRONT LEFT” and “FRONT RIGHT” (as viewed from the
front of the server).
a.
Position the left shelf rail between the front and rear rack posts.
The shelf rail slides in and out to fit racks of different depths.
b.
Extend the shelf rail and insert the rear hooks into the adapter slots.
c.
Push the shelf rail down to engage the hooks.
d.
Insert the front hooks into the adapter slots.
e.
Push the shelf rail down to engage the hooks.
