Base Module Mounting Rail
3-4 StorageTek SL150 Modular Tape Library Installation Manual

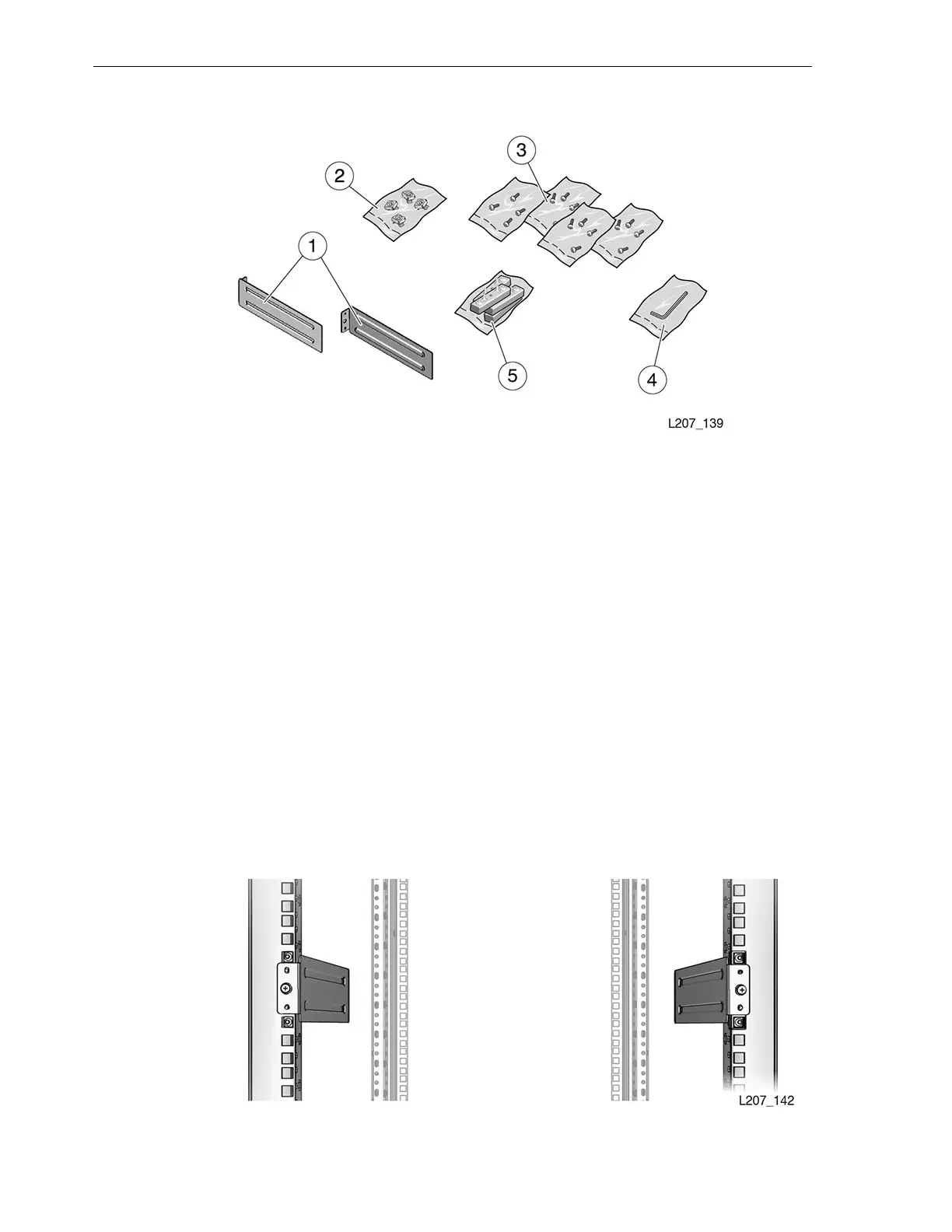

Figure 3–3 Base Module Accessory Package Mounting Hardware
Illustration Legend:
1 - Back Rails
2 - Clip Nuts
3 - Screws (Assorted Types)
4 - Hex Key
5 - Mounting Block
Base Module Mounting Rail
The base module mounting rail consists of two parts (front rail and back rail). The
front rail is installed after the back rail.
Back Rail
Installation of the back rails involves three part types: back rail, mounting block, and
an 8–32 screw. A back rail is installed on each side of the rack. Figure 3–4 shows the
completed installation of the back rails.
Figure 3–4 Back Rails Installed
