Expansion Module Installation
3-22 StorageTek SL150 Modular Tape Library Installation Manual

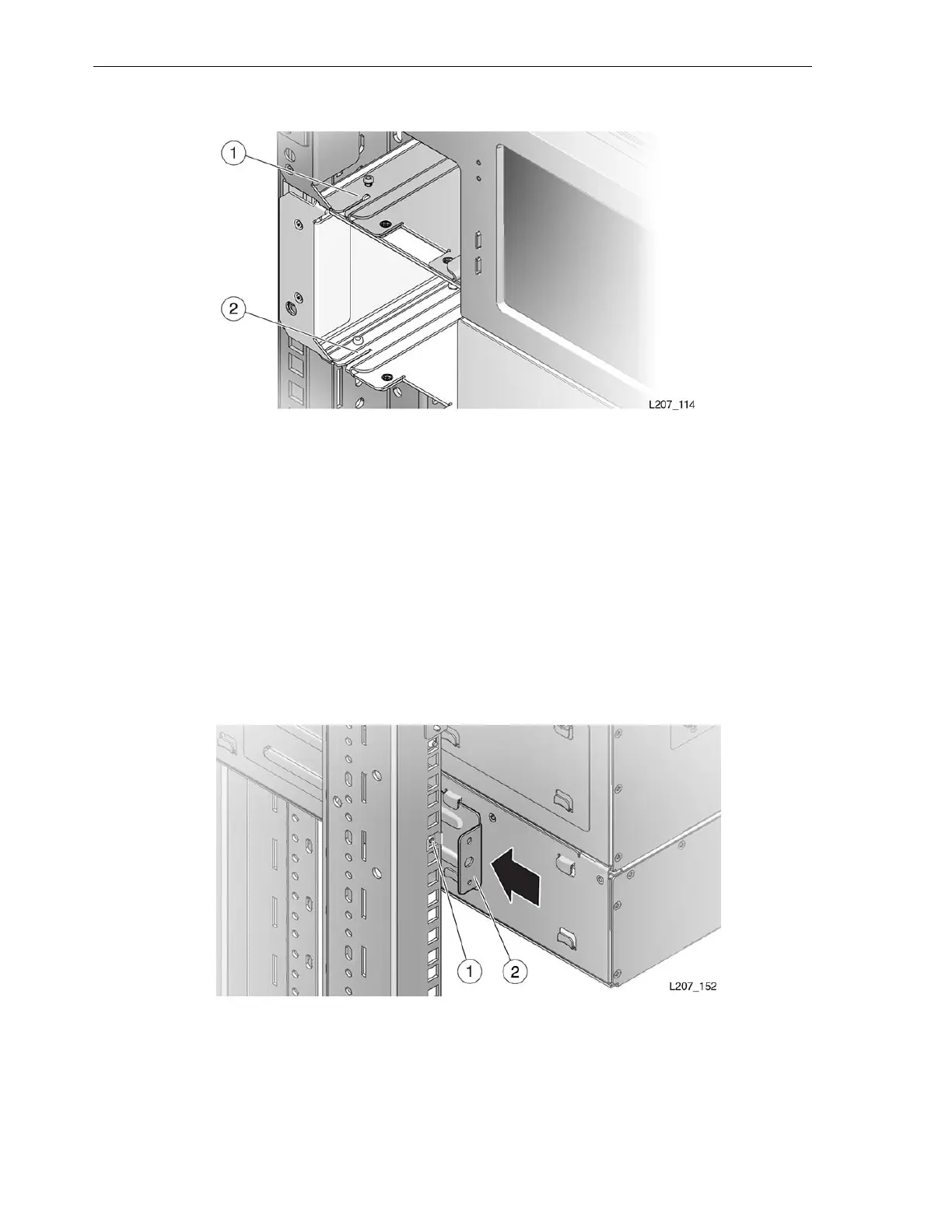

Figure 3–23 Alignment Tab Seated
Illustration Legend:
1 - Tab Seated in Slot
2 - Slot in Magazine Bay
Secure the Expansion Module
Perform the following tasks to secure the expansion module to the rack.
Task 1 Install the Rear Rails
1. Slide the back rail blade under the expansion module tabs (see Figure 3–24).
2. Repeat this task for the rail on the other side of the module.
Figure 3–24 Expansion Module Back Rail and Clip Nut
Illustration Legend:
1-ClipNut
2 - Rear Rail
