Base Module Mounting Rail
3-6 StorageTek SL150 Modular Tape Library Installation Manual
9.
Repeat the procedure for the back rail at the identical rack unit on the opposite
side of the rack.

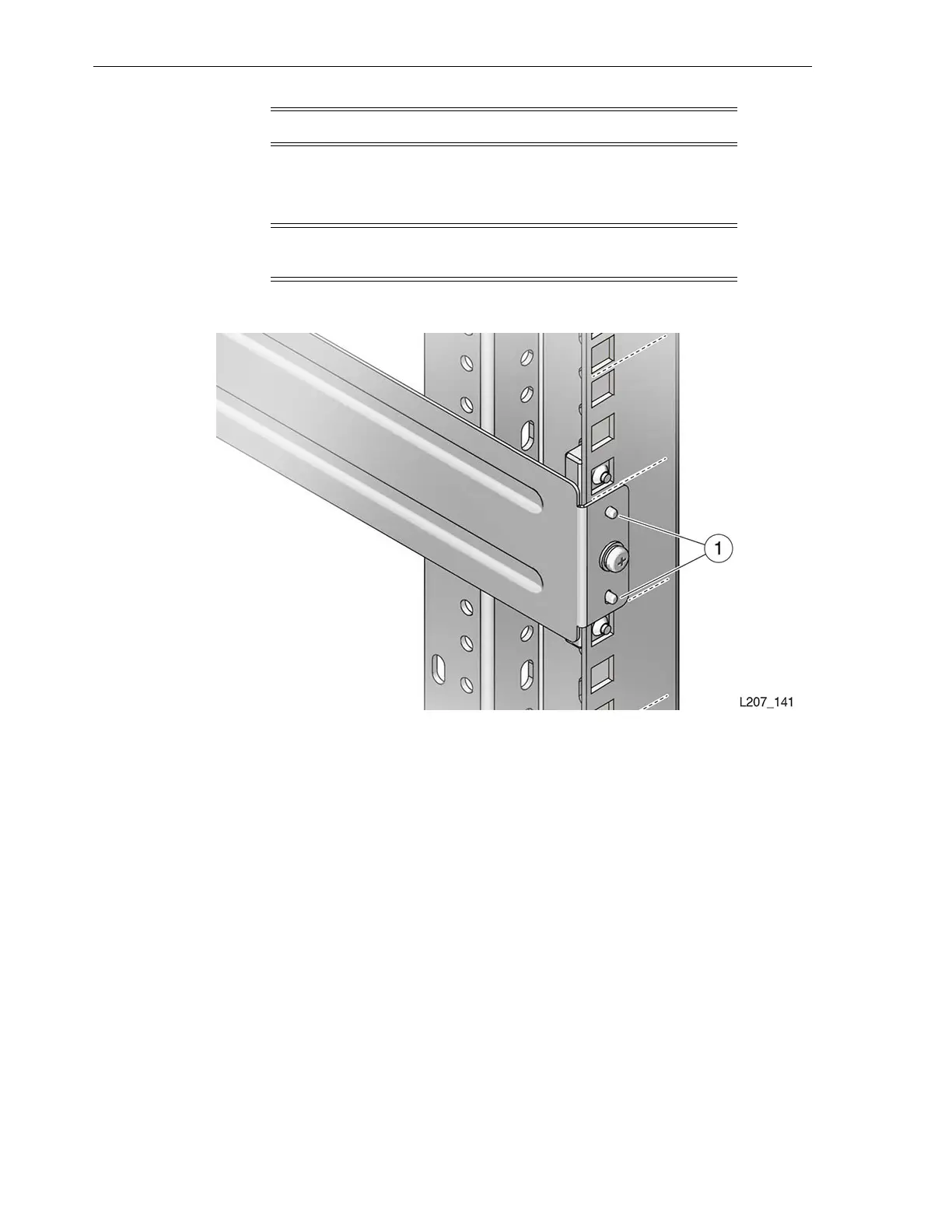

Figure 3–5 Back Rail Position
Illustration Legend:
1-Pins
Front Rail
The front rail engages the back rail and is installed from the front of the rack (see
Figure 3–6). Installation hardware involves three parts: front rail, mounting block, and
an 8–32 screw.
Tool Requirement
#2 Phillips screwdriver.
Install the Front Rail
Perform the following tasks to install the front rail.
Task 1 Connect the Front Rail to the Back Rail
1. Grasp the front rail and position it so the blade is facing into the rack with the rail
tabs toward the outside of the rack.
Note: The back rails should neither tilt in nor out.
Note: It is critical that the top edges of the back rails are level with
each other (see Figure 3–4).
