Final Hardware Actions
3-26 StorageTek SL150 Modular Tape Library Installation Manual
2.

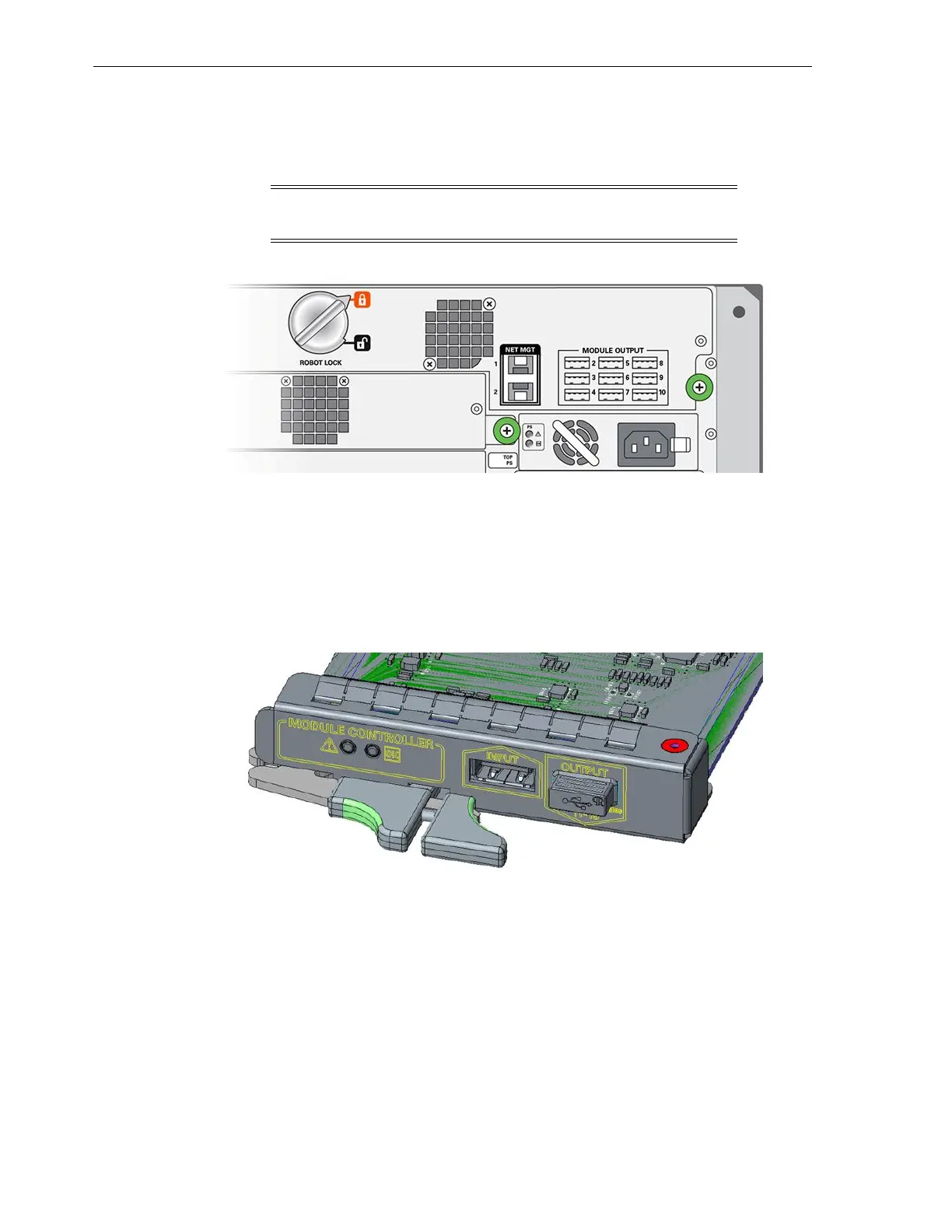

Connect an expansion interconnect cable from the designated Module Output port
in the base module to the module controller of each expansion module.
Refer to the cabling guidelines listed in the previous section.
a. Connect the output plug of the expansion cable to the Module Output
connector.
b. Route the cable to the designated expansion module controller, and connect
the input plug of the cable to the input port of the expansion controller.
3. Connect an expansion interconnect cable to Module 11 through Module 15.
a. Locate the expansion interconnect cable.
b. Connect the cable input plug to the expansion controller input port.
c. Route the expansion interconnect cable to the proper expansion module.
d. Remove the dust cover from the output port of the expansion module
controller and connect the cable.
Note: The Module Output connection area has nine ports labeled
2 through 10.
Tip: Do not remove the dust cover (plug) from the output port of the
module controller.
Tip: Module 11 connects to Module 6, Module 12 connects to Module
7, and so forth. Refer to the previous section for cabling guidelines.
