Orange Pi PC Plus

To Next Page

To Previous Page

www.orangepi.cn 103 www.xunlong.tv

to continue

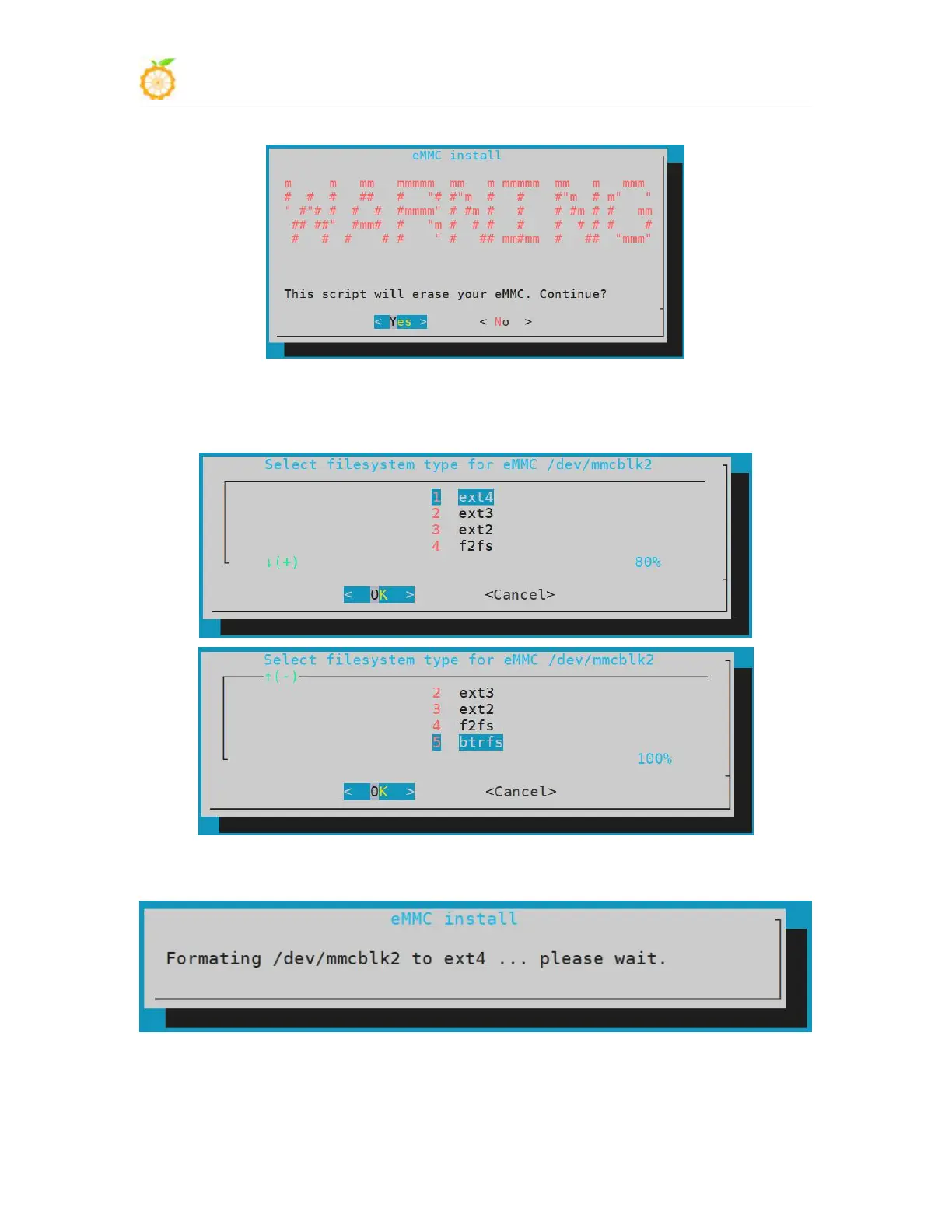

5) Then you will be prompted to select the type of file system, supporting five file

systems ext2/3/4, f2fs and btrfs

6) Then it will start to format eMMC

7) After formatting eMMC, it will start to burn linux image to eMMC
