Orange Pi PC Plus - Linux3.4 System Gc2035 Camera Test

range Pi 用户手册 深圳市迅龙软件有限公司版权所有
www.orangepi.cn 67 www.xunlong.tv
CON1-P06
CSI-RESET
PE15
CON1-P07
CSI-VSYNC
PE3
CON1-P08
CSI-STBY-EN
PE15
CON1-P09
CSI-HSYNC
PE2
CON1-P10
VDD1V8-CSI
PG11
CON1-P11
AFCC_EN
PG13
CON1-P12
CSI-D7
PE11
CON1-P13
CSI-MCLK
PE1
CON1-P14
CSI-D6
PE10
CON1-P15
GND
CON1-P16
CSI-D5
PE9
CON1-P17
CSI-PCLK
PE0
CON1-P18
CSI-D4
PE8
CON1-P19
CSI-D0
PE4
CON1-P20
CSI-D3
PE7
CON1-P21
CSI-D1
PE5
CON1-P22
CSI-D2
PE6
CON1-P23
GND
CON1-P24
DCIN-5V
3.21.2. Linux3.4 system gc2035 camera test

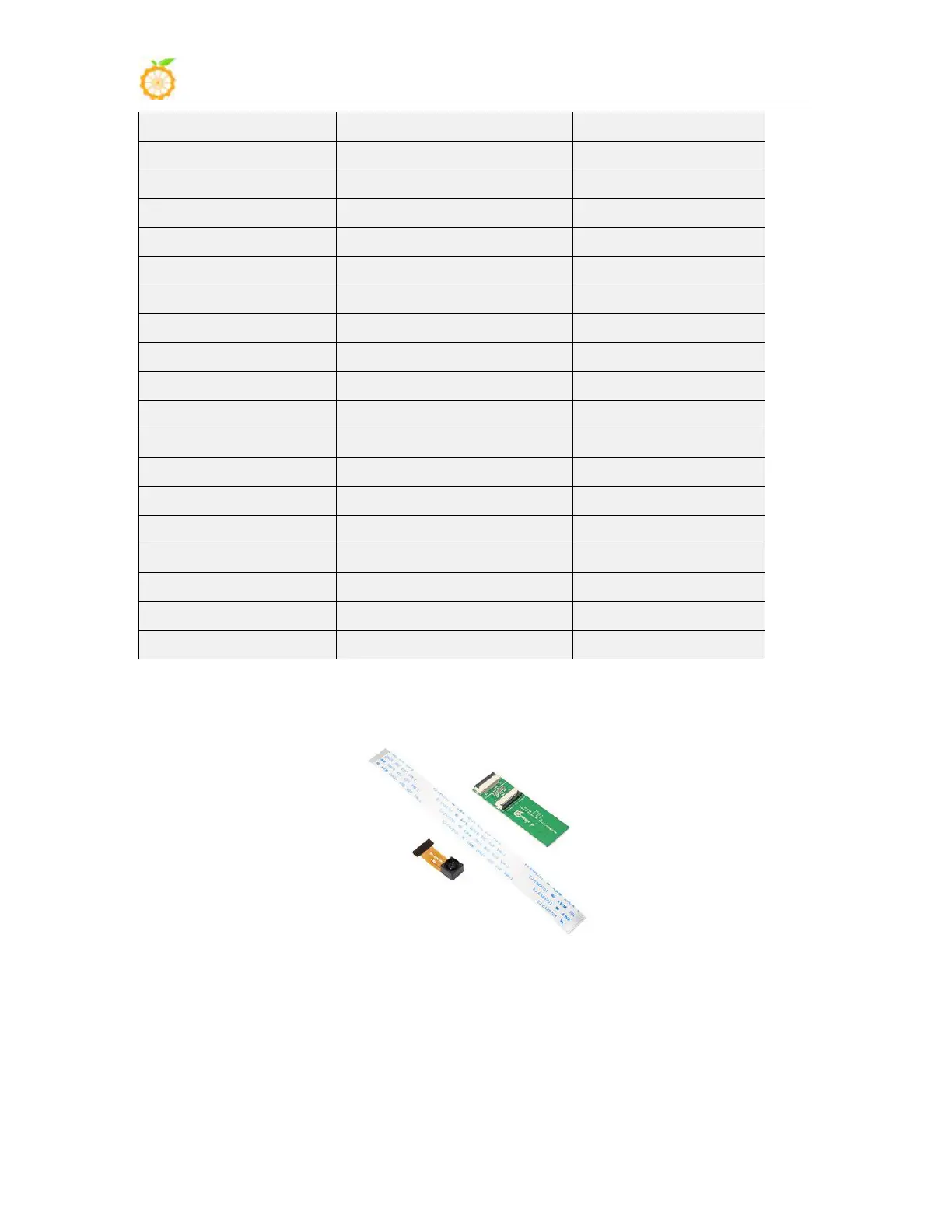

1) The Gc2035 camera kit includes a gc2035 camera, an adapter board and a cable
2) First insert the gc2035 camera into the adapter board
