3.21.
CSI camera test
3.21.1.
CSI camera interface specifications
1) The CSI interface of Orange Pi PC Plus supports two cameras, gc2035 and ov5640.
The support for cameras in different Linux systems is explained as follows
GC2035
OV5640
linux3.4
Support
Support
linux5.4
Not Support
Support

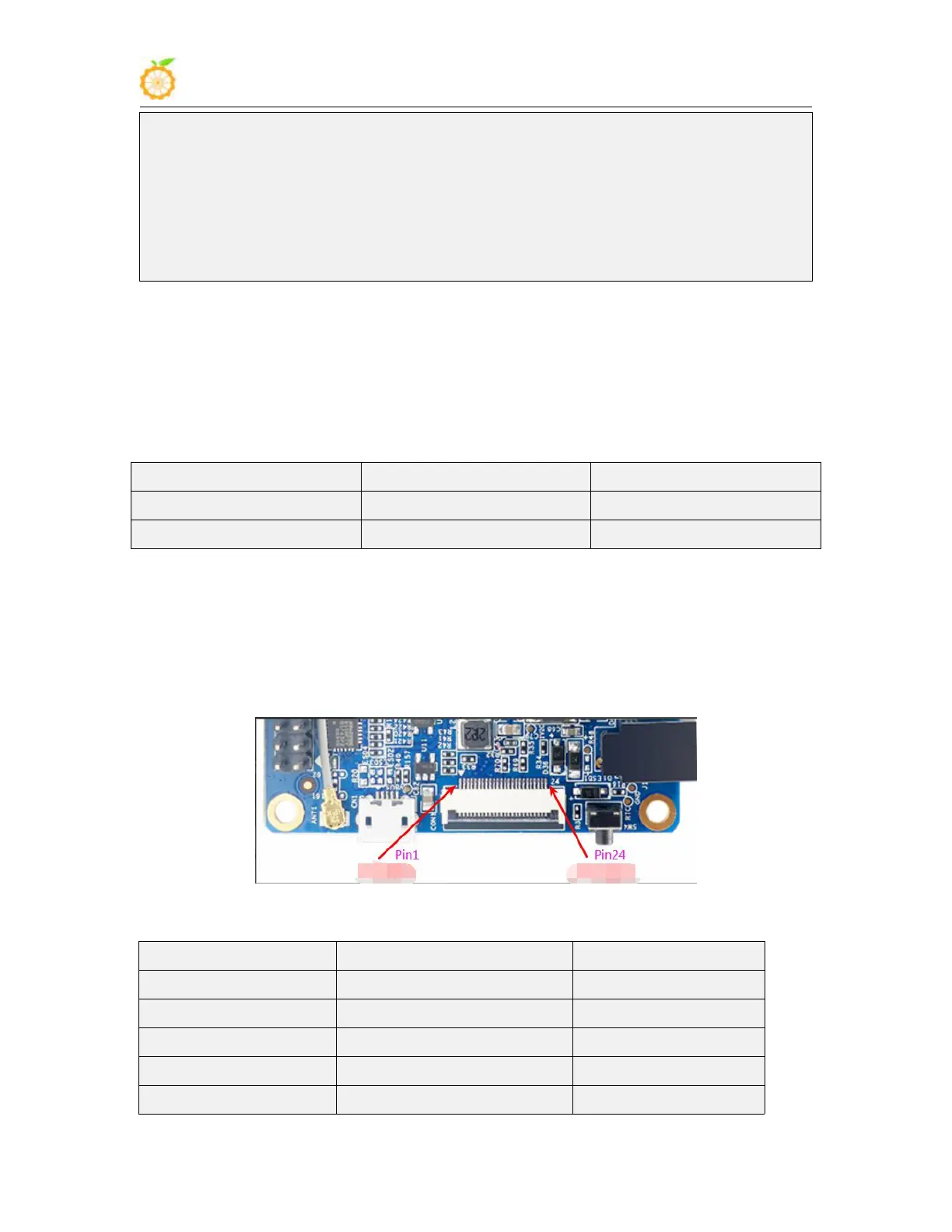

2) The serial numbers of the CSI interface pins are shown in the figure below
a. The No. 1 pin of the CSI interface is connected to the No. 24 pin of the camera
adapter board
b. The 24th pin of the CSI interface is connected to the 1st pin of the camera adapter
board
3) CSI interface pins are defined as follows
引脚
功能
GPIO 口
CON1-P01
DCIN-5V
CON1-P02
GND
CON1-P03
TWI2-SDA
PE13
CON1-P04
CSI-PWR-EN
PA17
CON1-P05
TWI2-SCK
PE12
