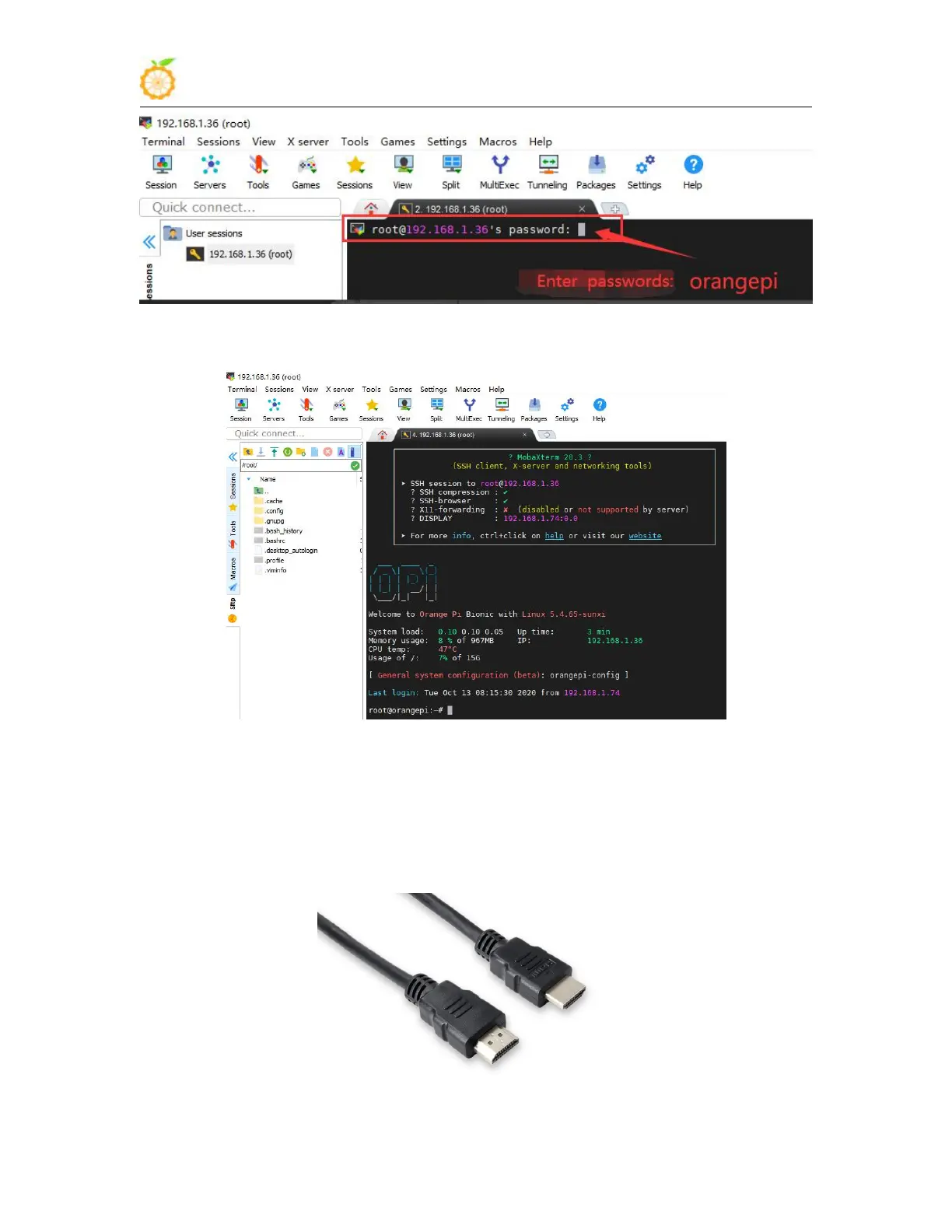

4) The display after successfully logging in to the system is as shown in the figure below

3.12. HDMI display test

1) Use HDMI to HDMI cable to connect Orange Pi development board and HDMI

display
