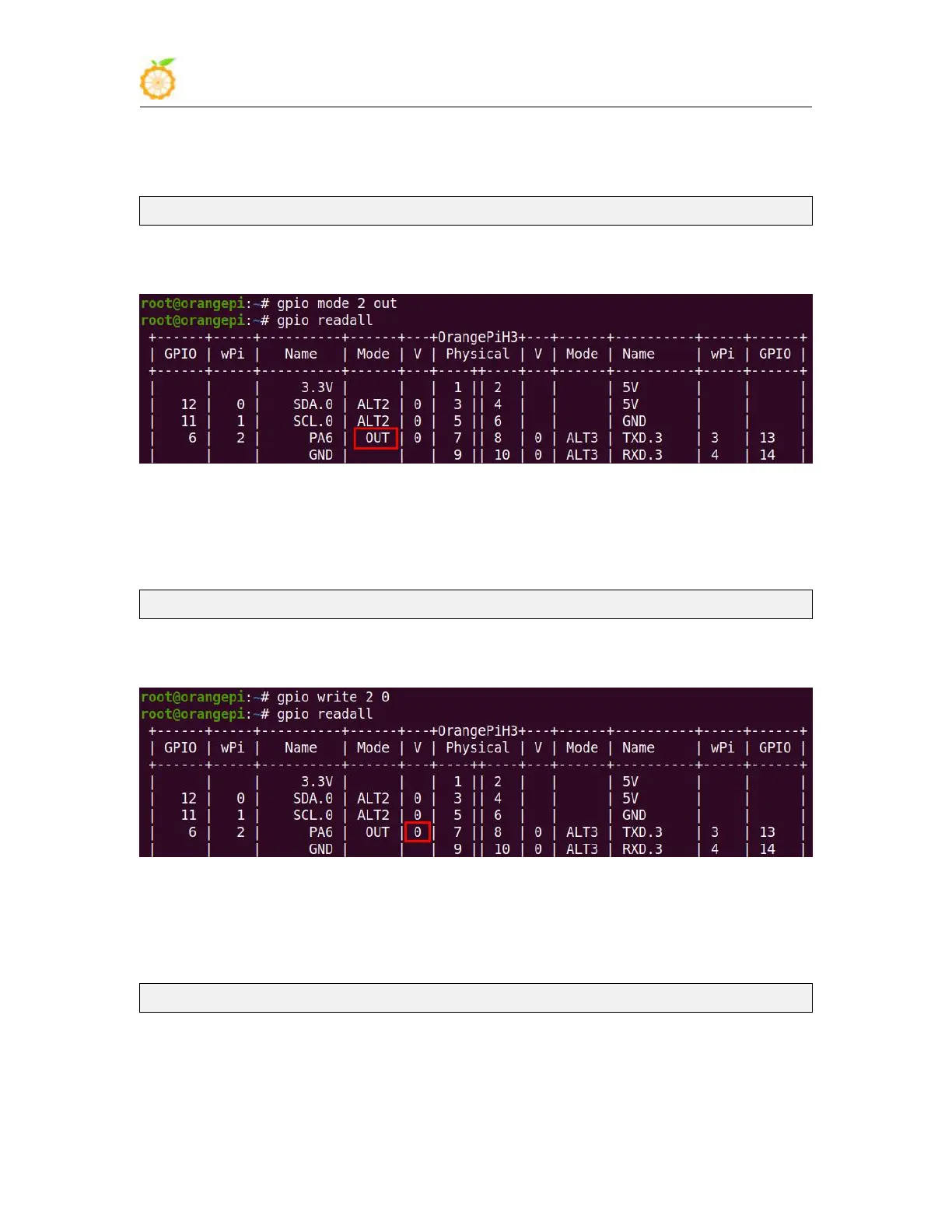

2) First set the GPIO port to output mode, the third parameter needs to be the serial
number of the wPi corresponding to the input pin
root@orangepi:~# gpio mode 2 out
Use gpio readall to see that the Mode of pin 7 is displayed as OUT
3) Then set the GPIO port to output low level. After setting, you can use a multimeter to
measure the value of the pin voltage. If it is 0v, it means that the low level is set
successfully.
root@orangepi:~# gpio write 2 0
Use gpio readall to see that the value (V) of pin 7 has become 0
4) Then set the GPIO port to output high level. After setting, you can use a multimeter to
measure the value of the pin voltage. If it is 3.3v, it means that the high level is set
successfully.
root@orangepi:~# gpio write 2 1
Use gpio readall to see that the value (V) of pin 7 has become 1
