NOTE: Do not set the speed too high as this might cause the bale to roll off the table uncontrollably.
Bales dropped from the wrapping table may roll more than 10 m.
3.7.5 Wrapping table ultrasonic sensor
The wrapping table ultrasonic sensor detects the bale when transported from the chamber, so that the table
accepts the bale by moving to the middle position.

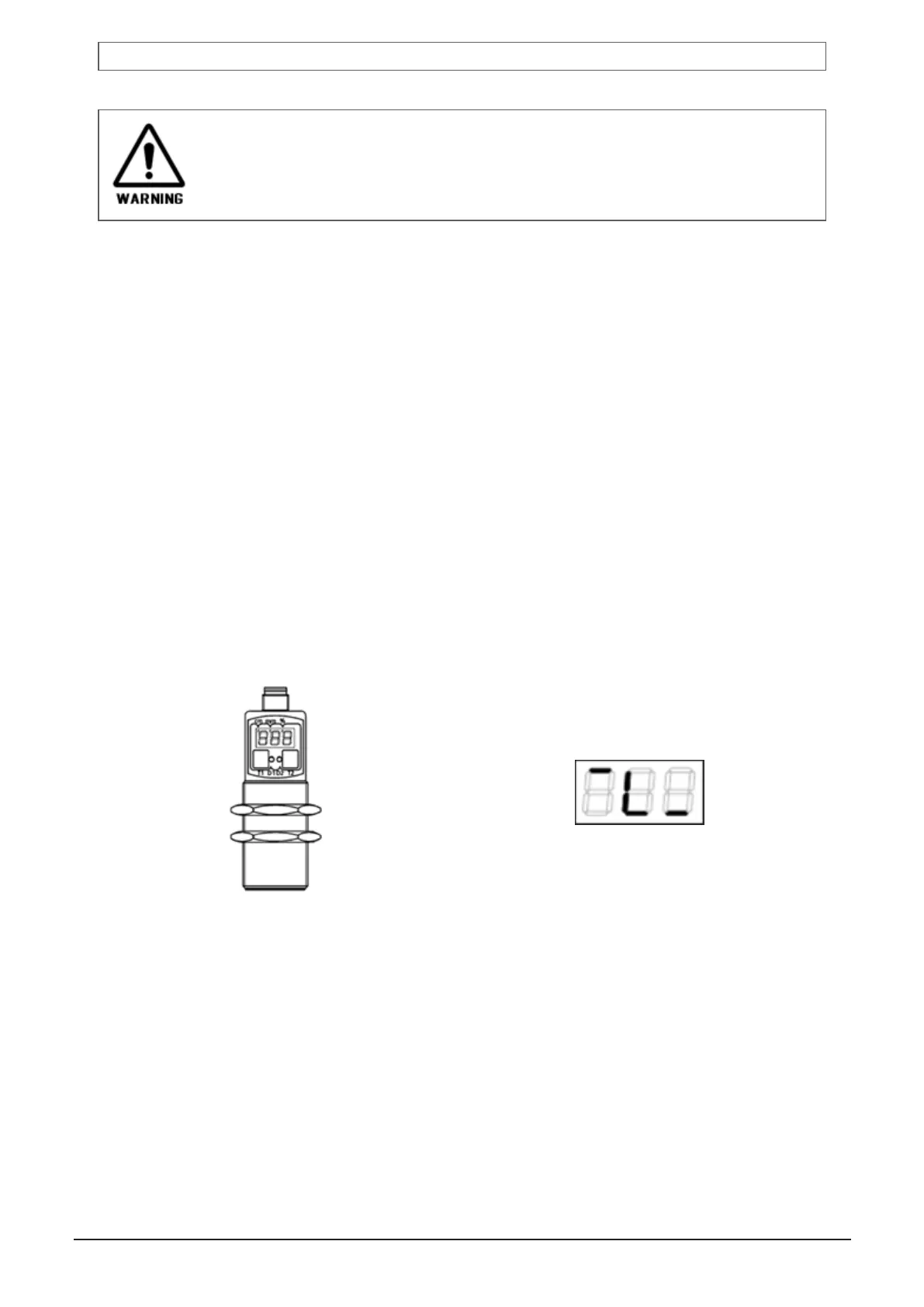

3.7.6 Microsonic sensor (S1)
This type shows the read distance on an LCD. The sensor detects bales on the table.
Resetting the trigger distance and mode:
1. Press both buttons simultaneously for at least three seconds until the text ”Pro” is shown on the
LCD.
2. Press both buttons once more. The current trigger distance setting is now shown.
3. Adjust to 70 cm. (distance below 1 m shown in mm, distance above 1 m shown in cm).
4. When the desired distance is set, press both buttons simultaneously two more times and make sure
the output mode is set to “Normally closed” (symbol shown below). If not, press up or down to
change.
5. Then press both buttons simultaneously one more time until the LCD blinks ”End”.
6. Press both buttons one last time.
The sensor shows its state in its right LED. If the sensor is OK and reads nothing the LED will shine green. If
the sensor detects an object the LED will shine yellow.
3.8 DRAWBAR
3.8.1 Telescopic drawbar
To be able to extract the telescopic drawbar, pull and hold the transport safety lock pull cord while engaging
the hydraulic cylinder (lever 6).
3 SETTINGS AND HYDRAULIC ADJUSTMENTS 28
