8.1.3 Beka max grease lubrication system

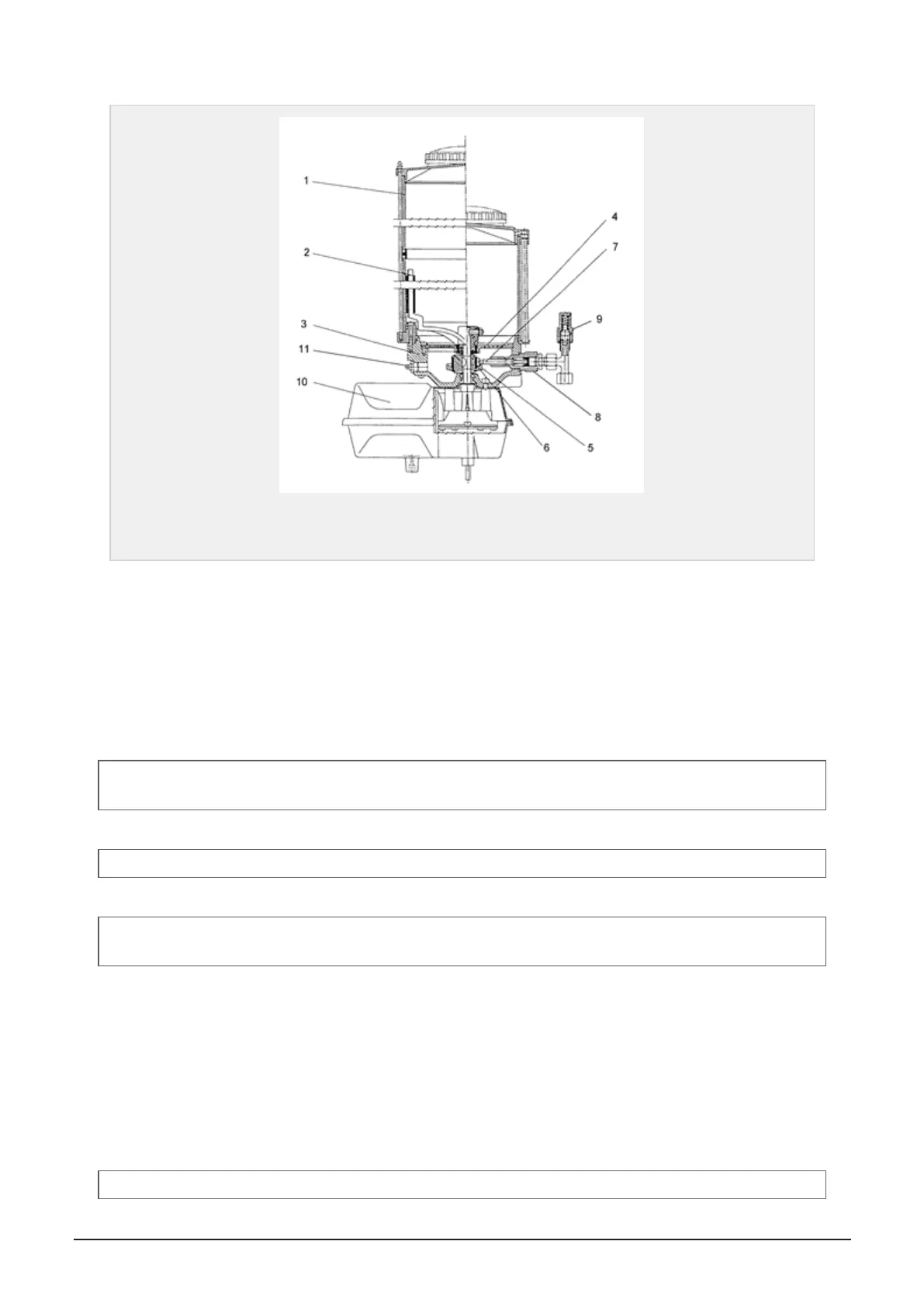

Figure 8.3 :
Beka Max grease lubrication pump system, exploded view with description on major
parts.
1. Reservoir, transparent 7. Delivery piston
2. Stirrer scrape 8. Non return valve
3. Suction area, pump 9. Pressure relief valve
4. Screen 10. Motor (24V DC)
5. Eccentric cam 11. Refill nipple, male sleeve
6. Pressure ring
NOTE: The plain bearings on chamber rollers are under huge stress and force during operation. It is of great
importance that the lubrication system is in good working order.
IMPORTANT: Do not operate the compactor without a proper functioning lubrication system.
NOTE: This lubrication system has a grease level monitor that shut down the machine if the grease level is too
low.
8.2 REFILLING LUBRICANTS
Make sure the level of lubricants is always between maximum and minimum in the reservoir (oil and grease).
Check the level on a daily basis, before start-up.
8.2.1 Refilling the oil reservoir
The grease lubrication system is sensitive to the influence of external contamination, such as dust and dirt.
Keep the cap on and refill through the male sleeve nipple (no. 11, section 8.1.3 "Beka max grease lubrication
system") when refilling grease.
NOTE: Always keep the reservoir, male sleeve nipple and pump clean.
8 LUBRICATION 78
