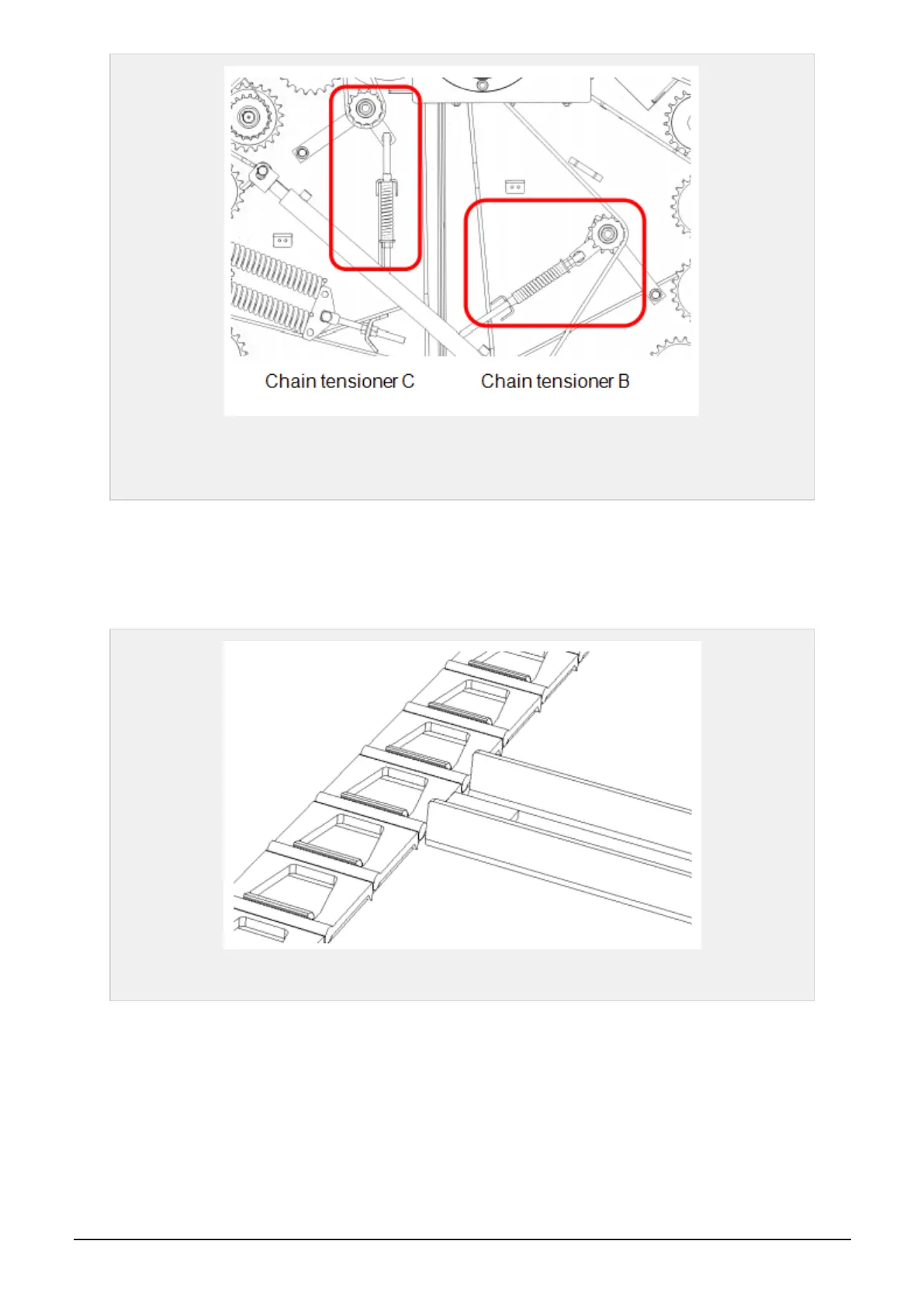

Figure 7.2 :
Chain tensioner B and C
7.5 FEED HOPPER
7.5.1 Tightening the feed hopper belts
This belt are of chain type with welded carriers. Check the belt tensioning and look for uneven wear.
Figure 7.3 :
Feed hopper conveyor
Procedure:
l Loosen the four bolts holding the bracket.
l Untighten the counter nut and tighten the bolt on the chain tensioner until correct belt tension is
achieved.
l Adjust both sides equally.
l Tighten the counter nut and the attaching bolts on the bracket.
7 MAINTENANCE AND MECHANICAL ADJUSTMENTS 58
