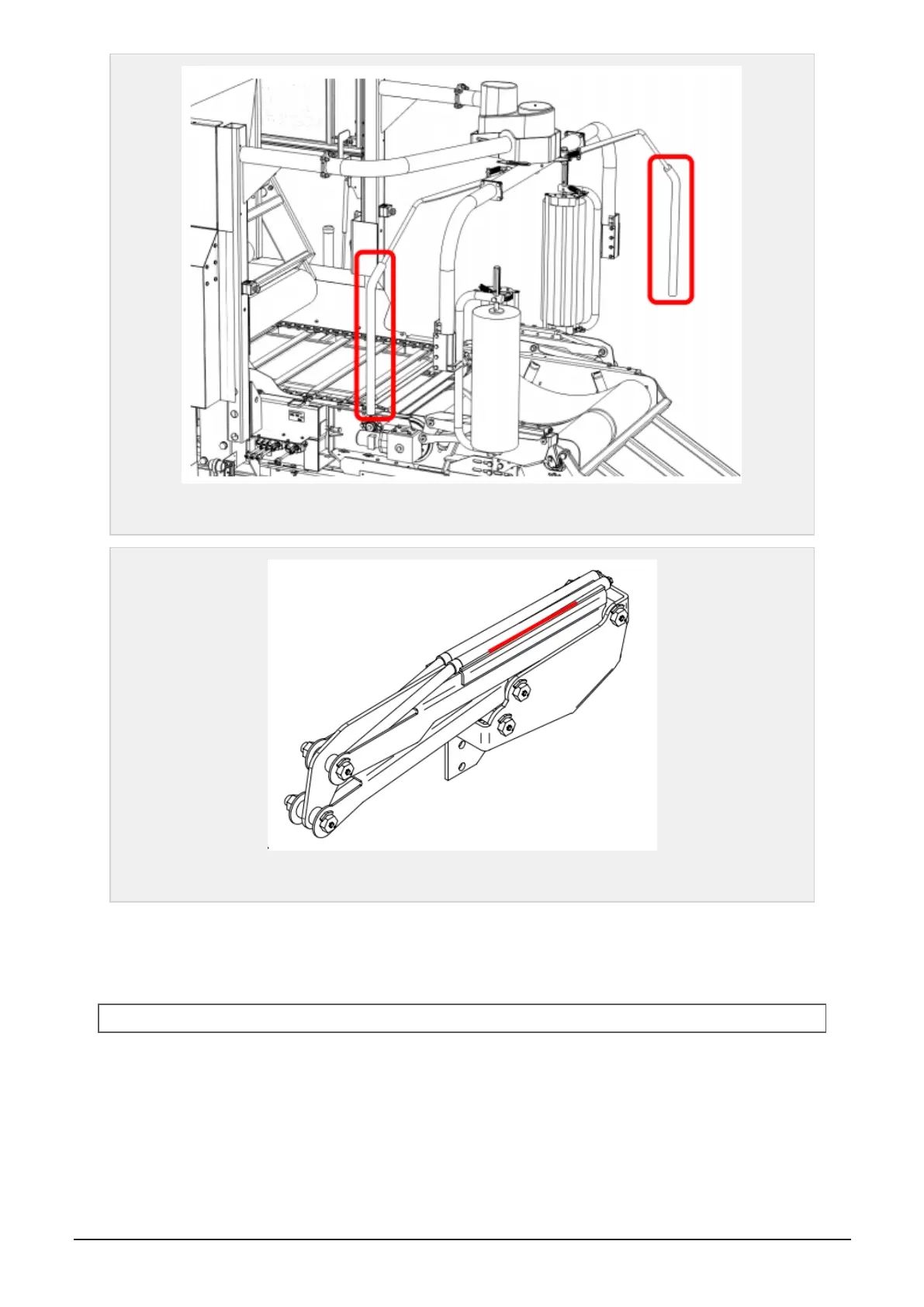

Figure 7.22 :
Wrapping table, emergency stop handles
Figure 7.23 :
Knife bed
7.10 FRAME, DRAWBAR, ATTACHMENTS
7.10.1 Frame
IMPORTANT: Check the welding for cracks or deformations once a month.
7.10.2 Main components, fastening points
Check all major bolt connections and re-tighten if necessary.
l Drawbar—frame
l Drawbar—eye
l Chamber—frame
7 MAINTENANCE AND MECHANICAL ADJUSTMENTS 68
