4.8 PARKING BRAKE
The parking brake is located near the right side wheel (Figure 4.6). Rotate clockwise to engage, and counter
clockwise to disengage.
IMPORTANT: Apply the included pad lock when the park brake is activated, as to prevent unauthorized use of the
compactor or disengagement of the parking brake.

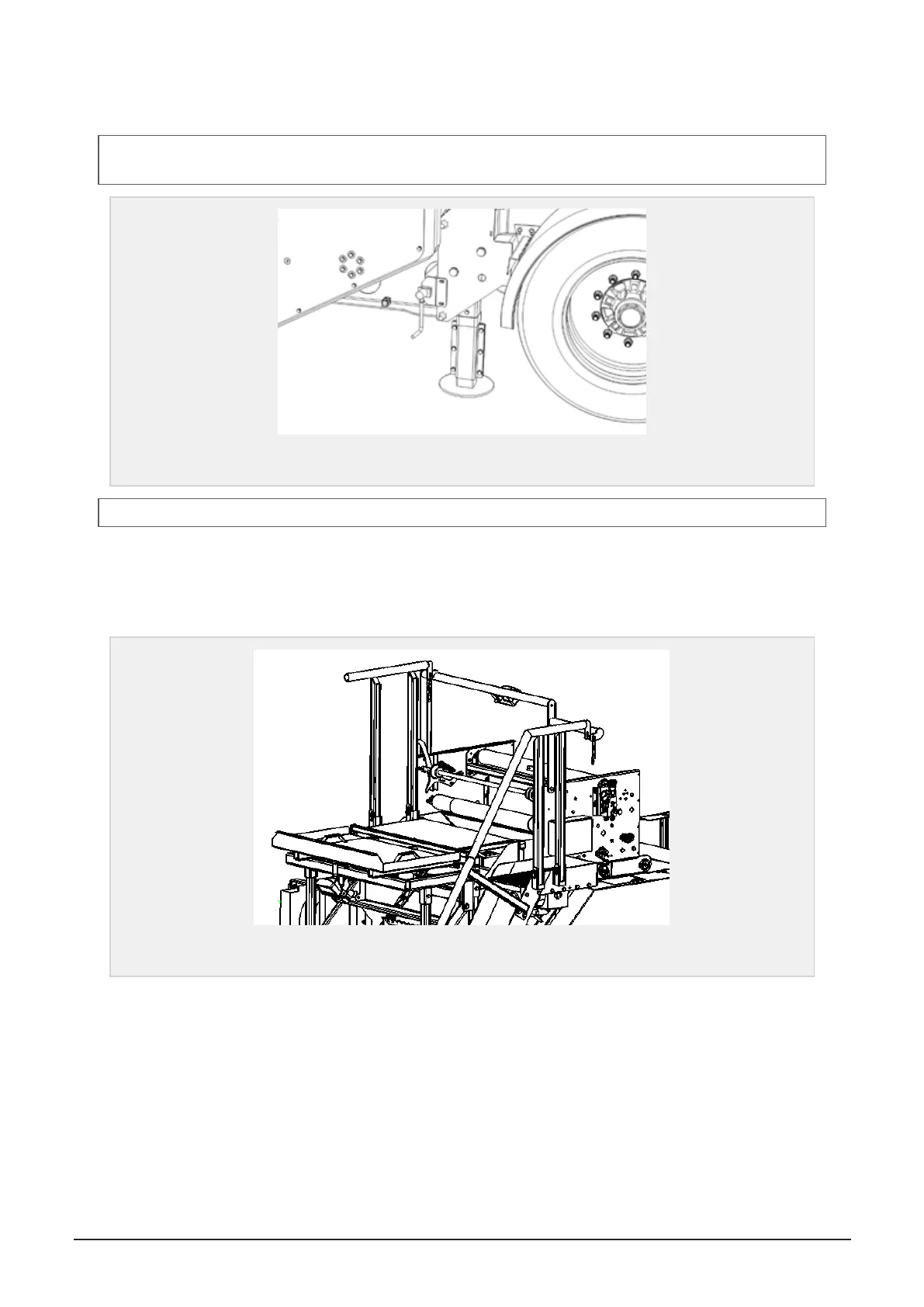

Figure 4.6 :
Parking brake
NOTE: Always make sure the parking brake is disengaged before moving the compactor.
4.9 OPERATORS PLATFORM
The operator’s platform is a safe station for the operator when changing net/film rollers in the tying unit. It
keeps the operator away from all moving parts and makes the process safer. It also contains extra room for
additional net/film rollers.
Figure 4.7 :
Operator's platform
Standing on the platform may give a better overview of the work site and danger zones.
4 OPERATION 40
