5 Transport
5.1 Transport safety 41
5.1.1 Speed limit 41
5.1.2 On road preparation 41
5.1.3 Lifting points 41
5.1.4 Strapping and tie down 42
5.1.5 Dismantling the machine 43
5.2 Highway use 43
5.2.1 Transport preparation 43
5.1 TRANSPORT SAFETY
Be aware of the danger of tipping when driving off road.

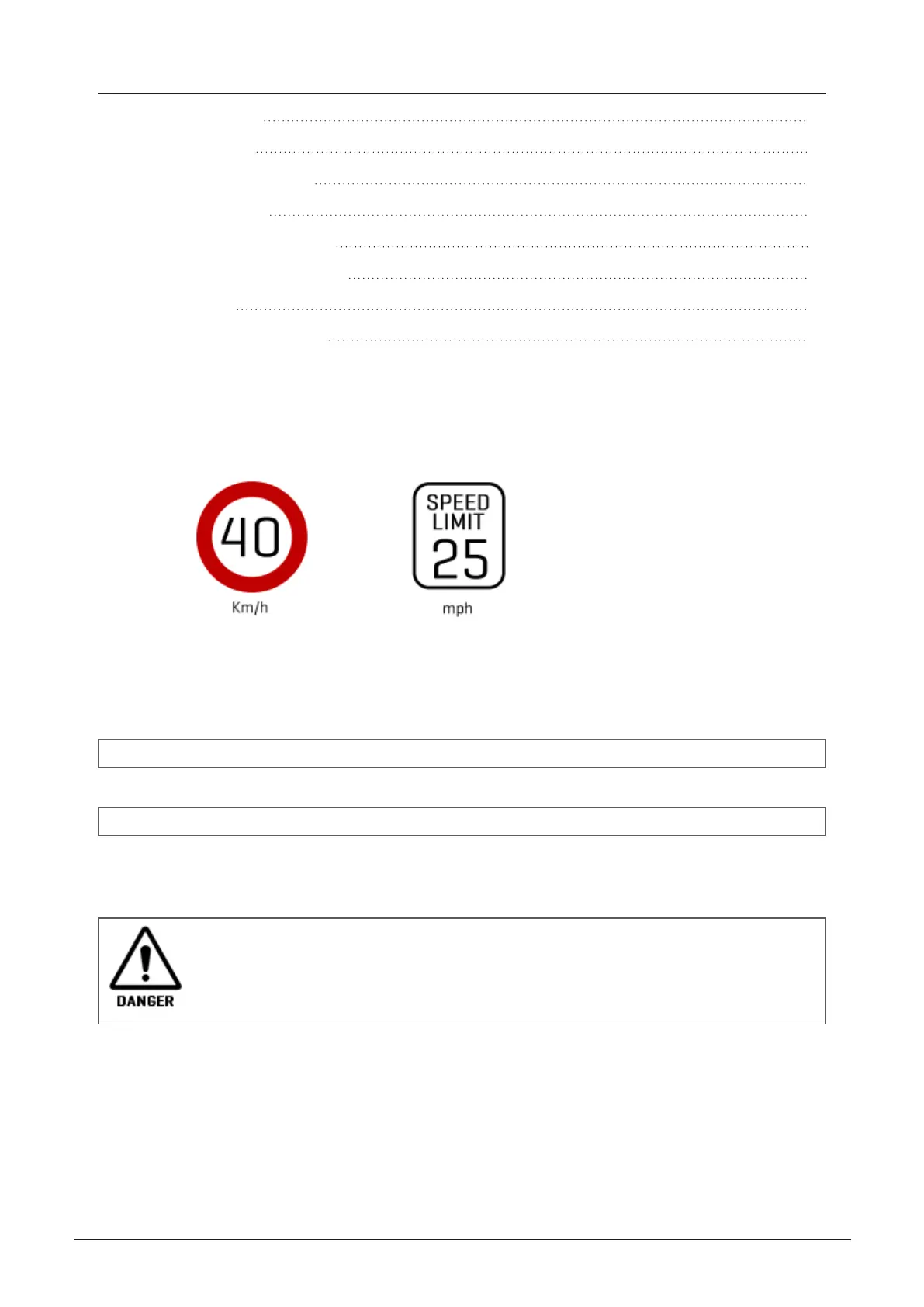

5.1.1 Speed limit
5.1.2 On road preparation
This machine is designed for being towed by the drawbar only. Ensure the tractor is equipped with a drag
unit with sufficient strength.
NOTE: Weight on draw bar: 1800 Kg - 3970 Lb.
IMPORTANT: Be aware of the height of the machine during transport!
Height: 3900 mm
Before set-up and mounting of machine (after transportation). Always carry out a visual control of the
machine, to reveal any transport damages.
Be aware of danger of overturning during transport. Do not exceed recommended speed limits!
5.1.3 Lifting points
Net weight of the machine is 7120 kg. - 15700 Lb.
All lifting of machine must be performed as shown in the illustrations.
Front: Use a nylon strap to make a loop around the front crossbeam (Beam Dim: 100 x 100mm).
Rear: Use lifting points on the hydraulic jack stands
5 TRANSPORT 41
