ORKEL MC850 - Chain Tensioner, Sub Conveyor

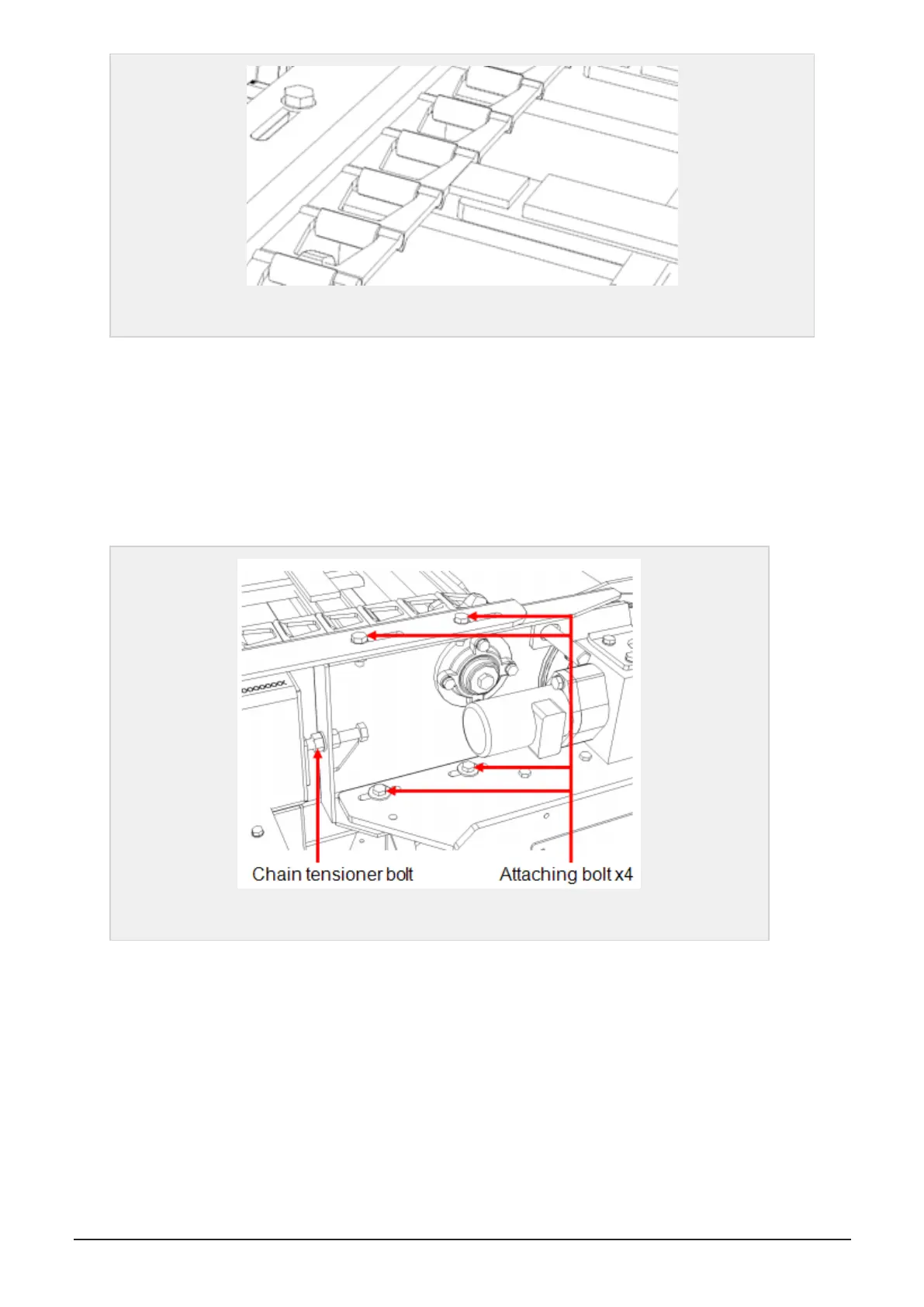

Figure 7.6 : Sub conveyor
Procedure
l Loosen the four bolts holding the bracket.
l Untighten the counter nut and tighten the bolt on the chain tensioner until correct
chain-tension is achieved.
l Adjust both sides equally.
l Tighten the counter nut and the attaching bolts on bracket.
7.6.3 Chain tensioner, sub conveyor
Figure 7.7 : Chain tensioner sub conveyor
7 MAINTENANCE AND MECHANICAL ADJUSTMENTS 60
