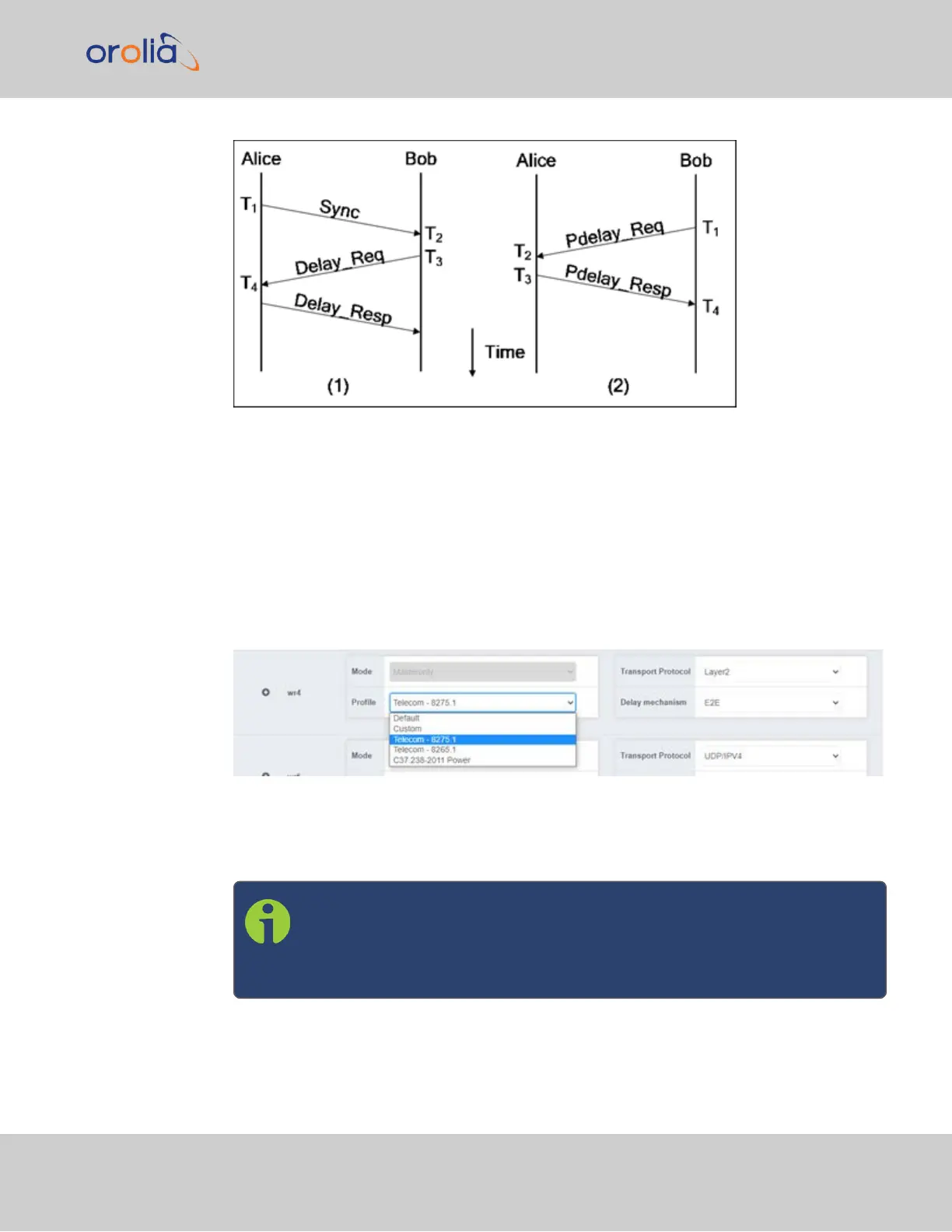

Figure 5-16: Simplified PTP packets exchange for delay measurement (1) End-to-end (2) Peer-to-
peer.
5.4.2.1 Configuration of PTP Profiles
A valid license is needed to perform the configuration of PTP profiles.
The easiest way to configure a specific PTP profile is through the web interface. The user
can quickly select its desired profile as illustrated in below and then all the related settings
will be modified accordingly to fit the selected profile.
Figure 5-17: Selecting ITU-G 8275.1 Telecom profile for wr4 interface
Then if some advanced settings need to be modified the user can click on the (+) button to
expand the configuration of a given interface.
Note: Custom Profile: In case some (advanced) settings are modified not
accordingly to the specification of the selected profile the web interface
will automatically change to use the Custom profile. It will not restrict the
user to any configuration.
The tables below summarize the limitation of the configuration for the different PTP pro-
files supported by the WR-Z16 device. Worth mentioning that some of the settings have
5.4 IEEE 1588-2008 (PTPv2)
CHAPTER 5 • WR-Z16 User Manual Rev. v3.4
67
