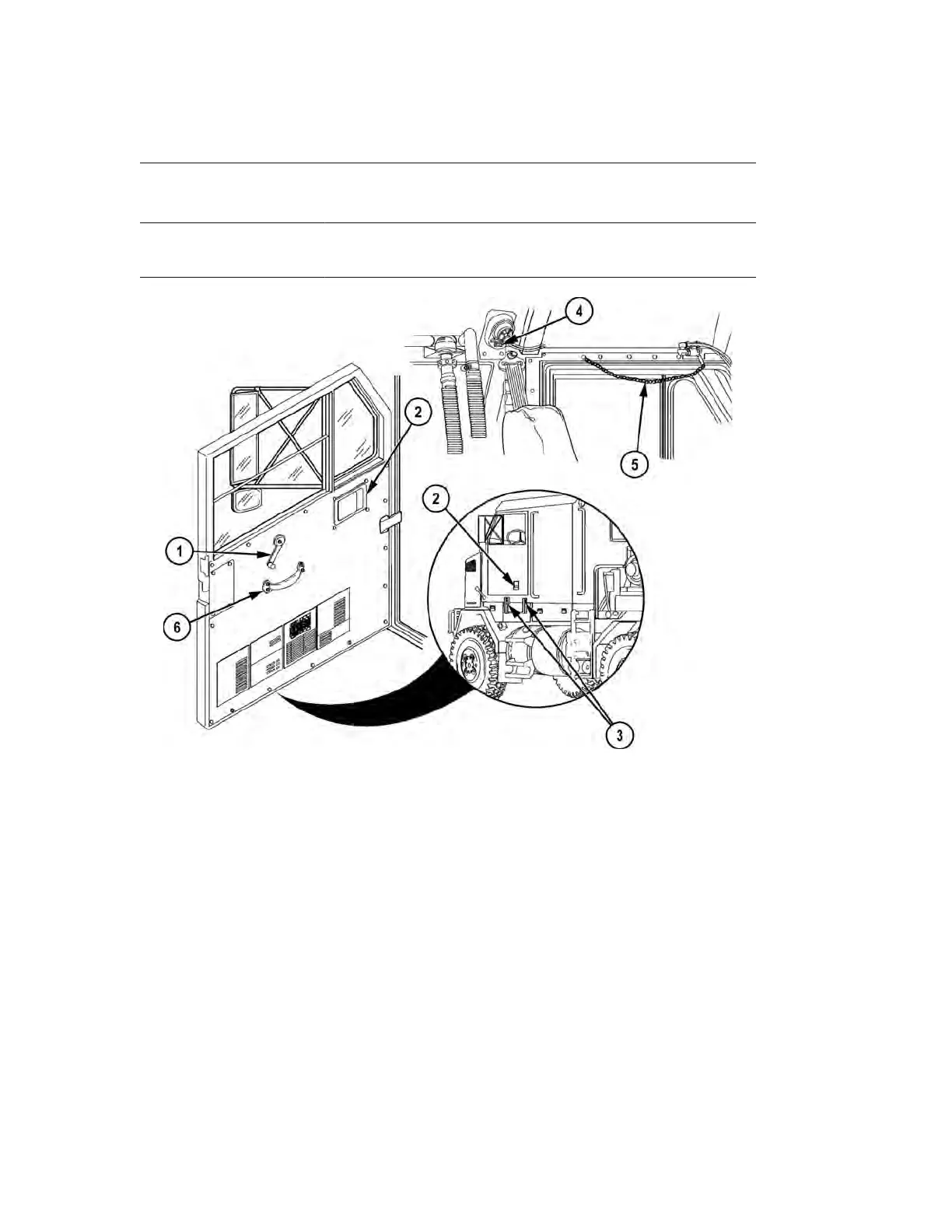

Oshkosh M1070 - Figure 1

Table 1. Cab-Mounted Hand Controls.
Key
Control/
Indicator Function
Figure 1.
1 Cab Door
Window Glass
Regulator
Located on each door. Raises or lowers window glass when
handle is turned.
2 Cab Door
Latch
Located on inside and outside of each door. Opens cab door
from inside and outside HET Tractor when pulled.
3 Cab Door Lock
Bracket
Located on driver side step. Provides a means to lock door
closed.
